Enttec 9VL4-1
Roll of High-Quality RGB LED Tape, Sold by the Meter

OUR PART #:  9VL4-1-BY-THE-METER

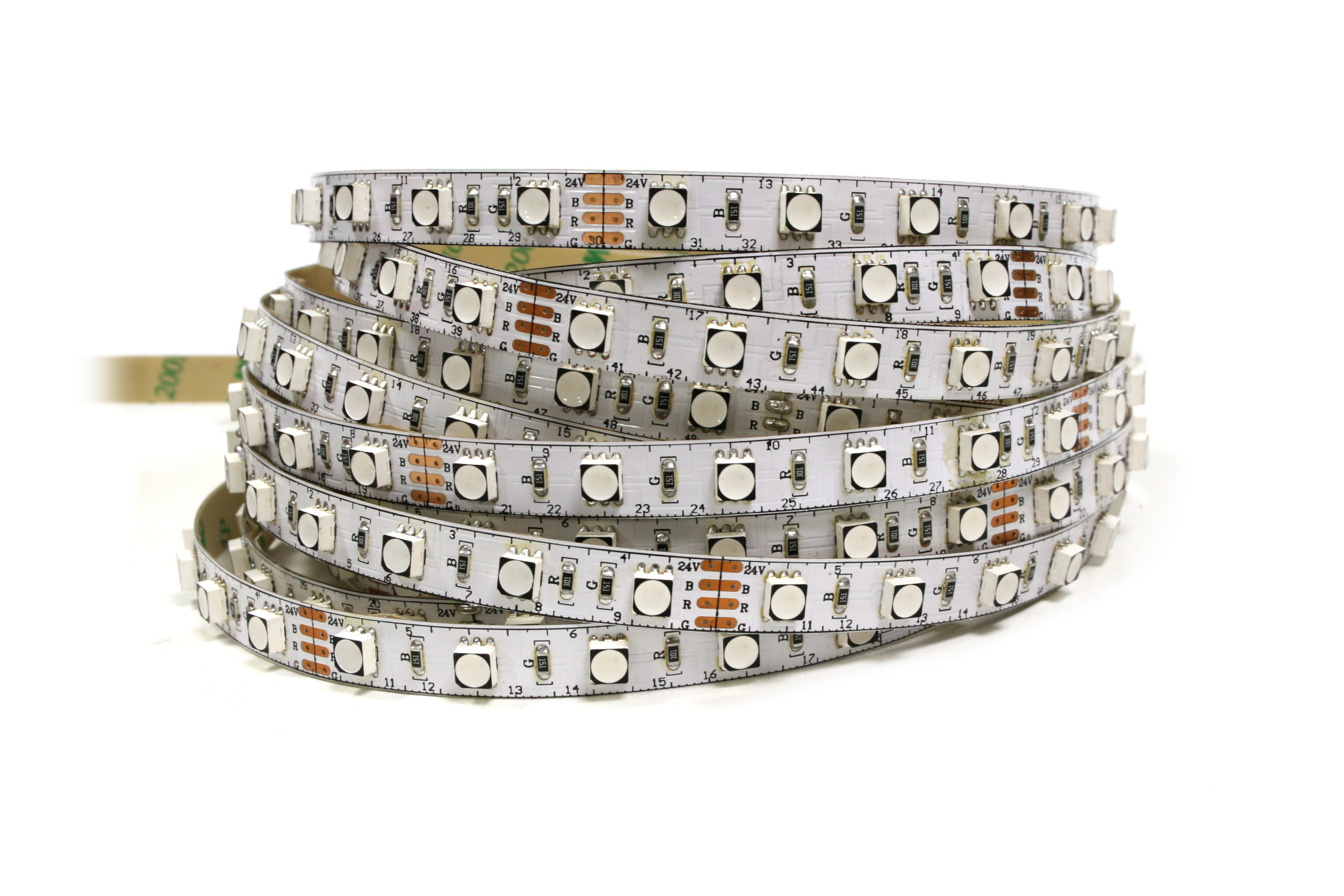

Enttec's 9VL4-1, part of their 9VL4 family, is a roll of high-quality RGB LED tape sold by the meter.
Learn More
Our Price: $50.00
List Price: $52.50
You save 5%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Enttec 9VL4-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Enttec's 9VL4-1, part of their 9VL4 family, is a roll of high-quality RGB LED tape sold by the meter. Designed especially for use with Enttec's 8E series aluminum LED Extrusions (sold separately, as well as power supply - consult your Sales Pro for more details).

Note: Extrusions & power supplies shown in diagram above are sold separately

Enttec 9VL4-1 Features:

  • 12mm pitch
  • Standard size (WxHxL): approx. 0.39" x 0.16" x 197" (10 x 4 x 5000mm)
  • Customized Length available
  • 60pcs of RGB LEDs per meter
  • High light output
  • High-quality LEDs for maximum color vibrancy and longevity
  • Dimmable by ENTTEC CV Driver or DIN-LED4PX
  • Can be cut to a smaller length
    • Minimum cut length: 100mm
  • Can be joined together
  • Input and output connections (loose cable)
  • Constant Voltage control
  • IP20 Indoor use only (available separately in IP65 - consult your Sales Pro for more details)

Enttec 9VL4-1 Specifications:

  • Input Voltage (VCC): +24 VDC
  • Consumption (W/m)*:
    • Red: 4.45
    • Green: 3.31
    • Blue: 3.12
      *Please Note: Operating the strip without a proper heat-sink can permanently damage the electronics and void the warranty. Various heatsink extrusions can be purchased separately.
  • RGB Luminance (lm/m):
    • Red: 66
    • Green: 179
    • Blue: 42.6
  • Beam Angle: 120°
  • Net Weight (Grams): 150g/5m
  • Operation Temperature: 14° to 122° F (-10° to 50° C)
  • Connection (In/Out): Loose Cable

Due to continuous improvements and innovations of all ENTTEC products, specifications and features are subject to change without notice.
