Community IP6-1152WR64

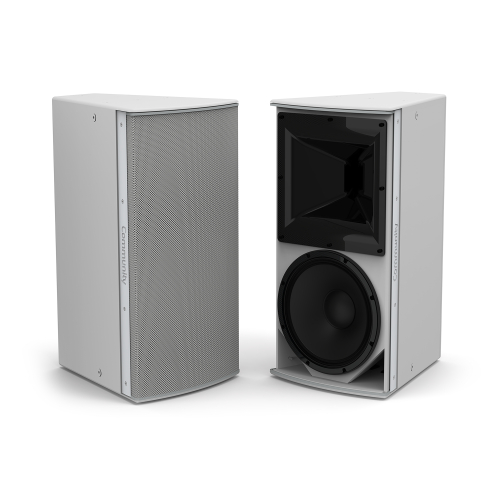

Grey, Medium Power 15" 2-Way 60 x 40 Weather-Resistant Speaker

OUR PART #:  IP6-1152WR64

The Community I SERIES Point Source 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues.
Learn More
Our Price: $3,165.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community IP6-1152WR64
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Community I SERIES Point Source 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of modular bracket systems that accelerate system design and system commissioning.

FEA-optimized ferrite motors, mechanically mirrored suspension and advanced cooling system combine to provide linear performance with minimal power compression. The custom long-excursion LF driver delivers deep bass response and a detailed midrange at maximum SPL levels. The HF driver delivers excellent sound quality from a hybrid diaphragm of deep drawn titanium and resonance-absorbing polyimide, coupled to a patented low compression, low resonance phase plug for very low distortion performance with abundant headroom.

The rotatable 13" (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Additionally, user selectable single amp or biamp operating modes expand application flexibility.

Community IP6-1152WR64 Features:

  • Long excursion ferrite LF driver with FEA-optimizedmotor and symmetric movement suspension
  • 3" voice coil, 1.4” exit HF driver; hybridtitanium/polyimide diaphragm on low compression phase plug
  • Lightweight and compact with deep LF extension
  • Large rotatable waveguide with individually voicedcrossover, single amp / biamp selectable
  • Innovative low profile modular bracket systems create elegant arrays with simplified suspension

Community IP6-1152WR64 Specifications:

  • Transducers:
    • LF - 1 x 15" cone, 3” voice coil, ceramic motor
    • HF - 1 x 1.4" exit, 3” voice coil, titanium diaphragm, ceramic motor
  • Operating Range: 30 Hz – 19.5 kHz
  • Sensitivity (1W/1m): 95 dB
  • Power Handling: 600W continuous @ 8 ohms
  • Continuous Max Output: 123 dB (129 dB Peak)
  • Nominal Beamwidth (H x V): 60° x 40°
  • Finish: Grey heavily textured exterior-rated coatingwith powder-coated marine-grade aluminum grille
  • Dimensions (HxWxD): 30.80" x 16.50" x 20.07" (782 x 419 x 510 mm)
