Community R.5COAX66WT

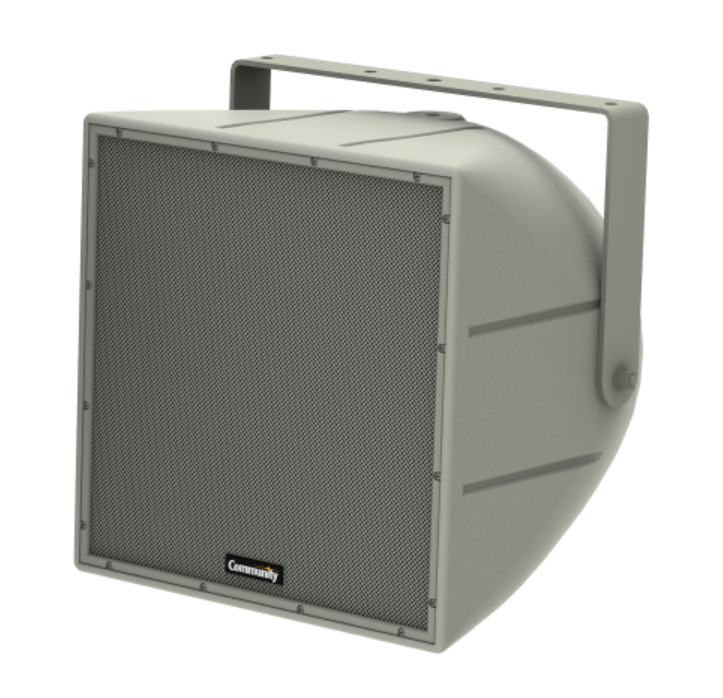

12" 200W Weather Resistant Full-Range 2-Way Coaxial Loudspeaker in White


The largest member of the coaxial family, the 12-inch R.5COAX features the same high sensitivity and high output as the R.35COAX but with even greater LF extension.
Learn More
Our Price: $958.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Community R.5COAX66WT
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The largest member of the coaxial family, the 12-inch R.5COAX features the same high sensitivity and high output as the R.35COAX but with even greater LF extension. This model from the R Series of outdoor loudspeaker systems, the R.5COAX66WT is a 200W 2-way, weather-resistant loudspeaker with a white finish and is also full-range with greater LF extension and multiple horn patterns.

NOTE: Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

Community’s exclusive LF driver and 1-inch exit horn loaded compression driver produce a wide range, smooth musical frequency response with high efficiency, ensuring both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The heavy wall, reinforced enclosure provides uncolored music reproduction and the best LF extension of all R-Series coaxial models. Available with a 90° x 90° dispersion pattern or the tighter 60° x 60° pattern for high ceiling or challenging acoustics applications.

Applications for the Community R.5COAX66WT include:

  • Convention centers
  • Fill speaker for stadiums, athletic fields, arenas and race tracks
  • Outdoor background music / paging systems
  • Theme and amusement parks
  • Fairgrounds, rodeos, air shows
  • Malls, cruise ships, skating rinks
  • Swimming pools
  • Portable sound systems

Community R.5COAX66WT Features:

  • Excellent LF Extension
  • Multiple horn patterns
  • Weather-treated drivers and crossovers
  • Included zinc-rich epoxy dual-layer powder-coated steel grille and yoke
  • Weather and UV-resistant roto molded enclosure with integral mounting points
  • High efficiency, high fidelity and high power passive crossover

Community R.5COAX66WT Specifications (partial):

  • Loudspeaker Type: 2-way, coaxial, weather-resistant, full-range
  • Finish: White LLDPE matte plastic, with dual-layer powder-coated steel grille (also available in Light Grey or Black finish)
  • Nominal Beamwidth (H x V): -66 (60° x 60°), -99 (90°x 90°)
  • Continuous Max Output: 121 dB (127 dB Peak)
  • Sensitivity (1W/1m): 98 dB
  • Power Handling: 200 W continuous @ 8 ohms
  • Operating Range: 80 Hz – 18 kHz
  • Transducers: LF 1 x 12” type cone; coaxial HF - 1 x1” exit Ferrofluid-cooled driver
  • Dimensions (H x W x D): 16.0" x 16.0" x 15.9" (406 x 406 x 405 mm)

NOTE: For additional specifications and info, please consult the documentation tab above.
