Community R.5HPT-R

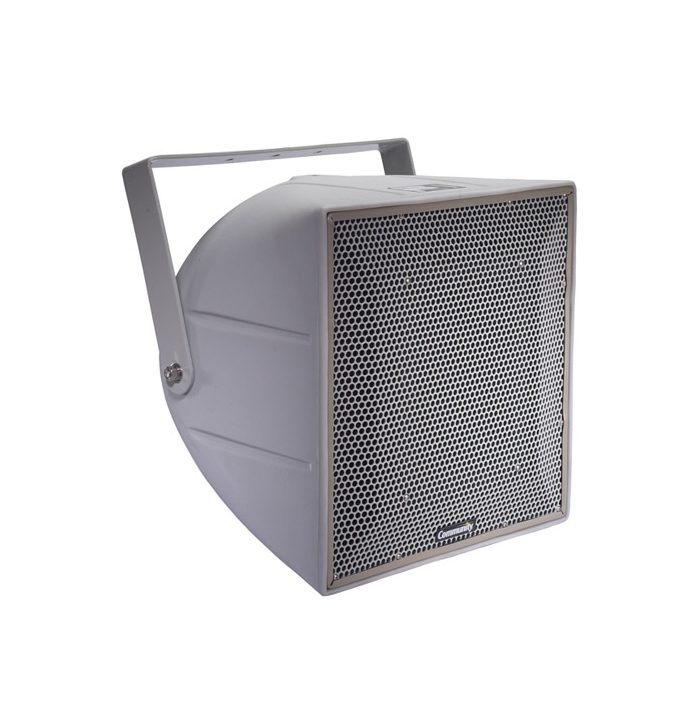

Full-Range, 3-Way 12-Inch Horn-Loaded 70V/100V Racetrack Catch Fence Speaker System in Grey

OUR PART #:  R.5HPT-R

Originally designed for Dover International Speedway, where over 100 of them are installed...
Learn More
Our Price: $1,525.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.5HPT-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Originally designed for Dover International Speedway, where over 100 of them are installed, the Community R.5HPT-R is a specialized version of their popular R.5HP loudspeaker, with the high frequency driver mounted 20° vertically. Specially designed for racetrack catch fence systems, it's a 3-way horn-loaded, weather-resistant loudspeaker system engineered to offer maximum intelligibility from its compact design. It's an extremely powerful tool for voice announcement systems, created by packaging Community's well-known M200 midrange driver coaxially within the mouth of the 12" LF horn. High frequencies are handled by Community's non-metallic diaphragm UC1 1" exit HF driver. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated. There's no longer any need for audiences to experience the unpleasant, "honky" sound of many re-entrant paging horns. The R.5HPT-R can simultaneously act as both a musical entertainment loudspeaker and voice PA loudspeaker. Of course, each system is backed by Community's five-year product warranty and fifteen-year enclosure warranty.

Applications:

  • Specially designed for racetrack catch fence systems

Community R.5HPT Features:

  • High frequency driver mounted 20 degrees vertically
  • Weather-resistant, rotomolded UV enclosure
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and yoke
  • Pattern control down to 630 Hz
  • High efficiency
  • High power passive crossover
  • Included yoke mounting bracket
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.5HPT Specifications:

  • Loudspeaker Type: 3-way, horn-loaded coaxial, weather-resistant
  • Operating Range:
    • 90 Hz to 16 kHz
    • 125 Hz to 12500 Hz (+/- 6 dB)
  • Max Input Ratings: 200W, 70/100V
  • Recommended Power Amplifier:
    • 25W to 200W @ 70 Volts
    • 50W to 200W @ 100 Volts
  • Sensitivity (1W/1m):
    • 105 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
    • 106 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output on 200W Tap: 128 dB SPL
  • 200W Nominal Impedance: 25 Ohms
  • 200W Minimum Impedance: 12.1 Ohms @ 11 kHz
  • Nominal –6dB Beamwidth:
    • 60° H (+32° / -17°, 2 kHz to 10 kHz)
    • 40° V (+33° / -1°, 2 kHz to 10 kHz)
  • Axial Q / DI: 20.5 / 13.1, 2 kHz to 12.5 kHz
  • Crossover Frequency: 600 Hz / 4 kHz
  • Recommended Signal Processing: 70 Hz high pass filter
  • Drivers:
    • LF: (1) 12" weather-treated, Ferrofluid-cooled
    • MF: (1) M200, Ferrofluid-cooled
    • HF: (1) 1" exit, titanium-free, Ferrofluid-cooled
  • Driver Protection: None
  • Input Connection: 12ft (4 m) UV-resistant #18 gauge multi-conductor cable
  • Controls: None
  • Physical:
    • Dimensions (HxWxD): 16" x 16" x 16.187" (406.4 x 406.4 x 411.15mm)
    • Weight:
      • Product: 45.5 lbs (20.6 kg)
      • Shipping: 52 lbs (23.6 kg)
    • Enclosure: Rotomolded LLDPE in Light Grey
    • Grille: 3-layer WeatherStop™, Light Grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
    • Mounting/Rigging Provisions: (5) 3/8-16 rigging points
    • Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
  • Required Accessories: None
  • Supplied Accessories:
    • (1) Yoke bracket, Light Grey
    • (1) Aiming strap
  • Optional Accessories (sold separately):  PMB Series pole mount brackets

Notes:
     1. Sensitivity: Free field pink noise measurement at 40 ft (12.2 m) at 60% power; extrapolated to 1 meter and an input of 2.45 volts RMS.
     2. Watts: All wattage figures are calculated using the rated nominal impedance.
