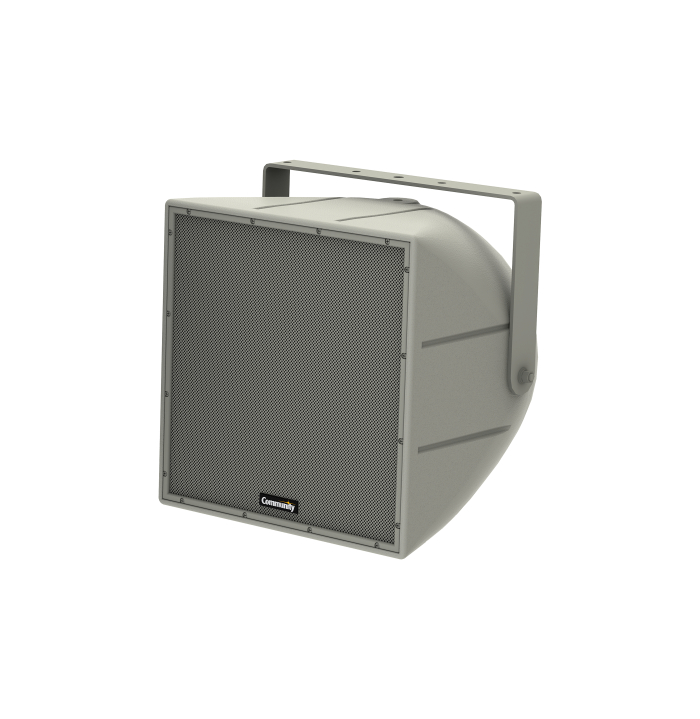

Biamp R.5-V2200 Dual-Driver Horn Loaded Paging System

Designed for use in voice-range sound reinforcement and announcement / signaling applications, the Community R.5-V2200 is a complete horn/driver system that provides focused, very high output sound projection, with predictable performance, and remarkable long-term durability.

The horn portion of the assembly is a patented, hand-crafted one piece focused Array ™ waveguide, precision molded in hand-laminated reinforced fiberglass, delivering optimum performance. The fiberglass horn is enclosed in a roto-molded polyethylene enclosure that provides weather and UV resistance, and incorporates a Weather-Stop grille. The resulting inherent strength and rigidity of the system's construction enhances sonic efficiency by preventing sound energy loss, and offers a highly weather-resistant installed loudspeaker system.

The compression drivers are high-output, high-sensitivity loudspeakers configured with the diaphragm facing forward, isolating the voice coil and magnetic structure of each driver from the environment. The one-piece, non-metallic diaphragm/suspension gives exceptional resistance to the effects of humidity, dust, and corrosive atmospheres. A fiberglass rear cover protects the drivers from the effects of weather and corrosion.

There is a five-year warranty against manufacturing defects on all components of the system.

Applications:

• Industrial Paging
• Large Public Gatherings
• Voice Alert Systems
• Tone Signaling

Community R.5-V2200 Includes:

• R.5-V2200 unit
• SSYR5 Yoke bracket, dual layer powder-coated steel

Community R.5-V2200 Features:

• 2" (51 mm) Throat Exit x 2
• High Efficiency
• High Power Output
• Non-metallic Diaphragms
• Highly Resistant to Harsh Environments

Community R.5-V2200 Specifications:

• Loudspeaker Type: Dual Driver, PC Horn-loaded, Weather-Resistant Loudspeaker for High Level Paging
• Operating Range: 450 Hz - 8 kHz
• Usable LF Limit: 400
• Max Input Ratings:
  • 150W continuous, 400W Program; 30 volts RMS, 69 volts momentary peak
• Recommended Power Amplifier: 330W to 480W @ 6 Ohms
• Flare Rate: 360 Hz
• Throat Entrance Diameter: 2 x 2"
• Axial Sensitivity 1W/1m: 114 dB SPL (400 Hz - 4 kHz 1/3 octave bands with 2 x M200 driver)
• Maximum Output: 136 dB SPL / 143 dB SPL peak (with 2 x M200 driver)
• Nominal Impedance: 6 Ohms
• Min Impedance: 4.8 Ohms @ 400 Hz
• Nominal -6 dB Beamwidth:
  • Horizontal: 80° (+5° / -17°, 1600 Hz - 4000 Hz)
  • Vertical: 40° (+9° / -17°, 1600 Hz - 4000 Hz)
• Axial Q: 20.5
• Axial DI: 13.1
• Recommended Signal Processing:
  • 400 Hz high pass filter (for 2 x M200 driver standalone)
  • 8 kHz low pass filter (for 2 x M200 driver standalone)
• Construction: Hand-laminated, multi layer glass composite within a rotomolded polyethelene enclosure
• Dimensions (HxWxD): 16" x 16" x 16.2" (406.4 x 406.4 x 413mm)
• Weight:
  • Product:
    • (without yoke): 36.1 lbs (16.4 kg)
    • (with Yoke): 39.3 lbs (17.8 kg)
  • Shipping: 44 lbs (20 kg)
• Required Accessories: Bandpass filtering
• Optional Accessories (sold separately): TRC400 Transformer

Note:

1. Sensitivity: Free field pink noise measurement at 40 ft / 12.2 m at 40% power; extrapolated to 1 meter and an input of 2.45 volts RMS.

2. Watts: All wattage figures are calculated using the rated nominal driver impedance.
