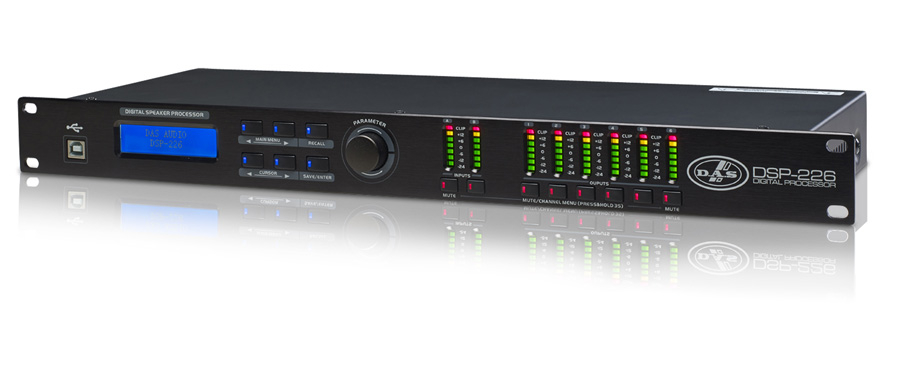

DAS Audio DSP-226
2 In/6 Out Configureable Digital SIgnal Processor, USB Ready

OUR PART #:  DSP-226

The DAS Audio DSP-226 is a loudspeaker system management processor which uses digital signal processing in order to accomplish the functions of crossover, equalizer, limiter...
Learn More

Call for price! Not available online.

Similar Products

The DAS Audio DSP-226 is a loudspeaker system management processor which uses digital signal processing in order to accomplish the functions of crossover, equalizer, limiter, and delay unit. Designed for applications such as zoning and permanent installations, PA systems and stage monitor set ups, the DSP-226 features two balanced analogue inputs, six balanced outputs using XLR connectors, RS485 in/out and USB socket on the front panel.

DAS Audio DSP-226 Features:

  • Digital Signal Processor
  • 2 Inputs/6 Outputs
  • Completely Configurable
  • Universal Power Supply

DAS Audio DSP-226 Specifications:

  • Frequency Response: 20 Hz-20 kHz, +0/-0.5 dB
  • Dynamic Range: 116 dB A Weighting
  • Channel Separation: < -100 dB
  • Distortion (THD): 0.003%, 1kHz at 0 dBu
  • Input Metering: -24 dB,-12 dB,-6 dB, 0 dB, +6 dB,+12 dB,+24 dB
  • Output Metering: -24 dB,-12 dB,-6 dB, 0 dB, +6 dB,+12 dB,+24 dB
  • AC Requirements: 95-240 VAC 50/60 Hz
  • Dimensions (HxWxD): 1.77" x 19" x 6.2" (4.5 x 48.2 x 15.8 cm)
  • Weight: 4.4 lb (2 kg)
