Williams Sound WIR-TX9-DC
Multi-Channel IR Emitter

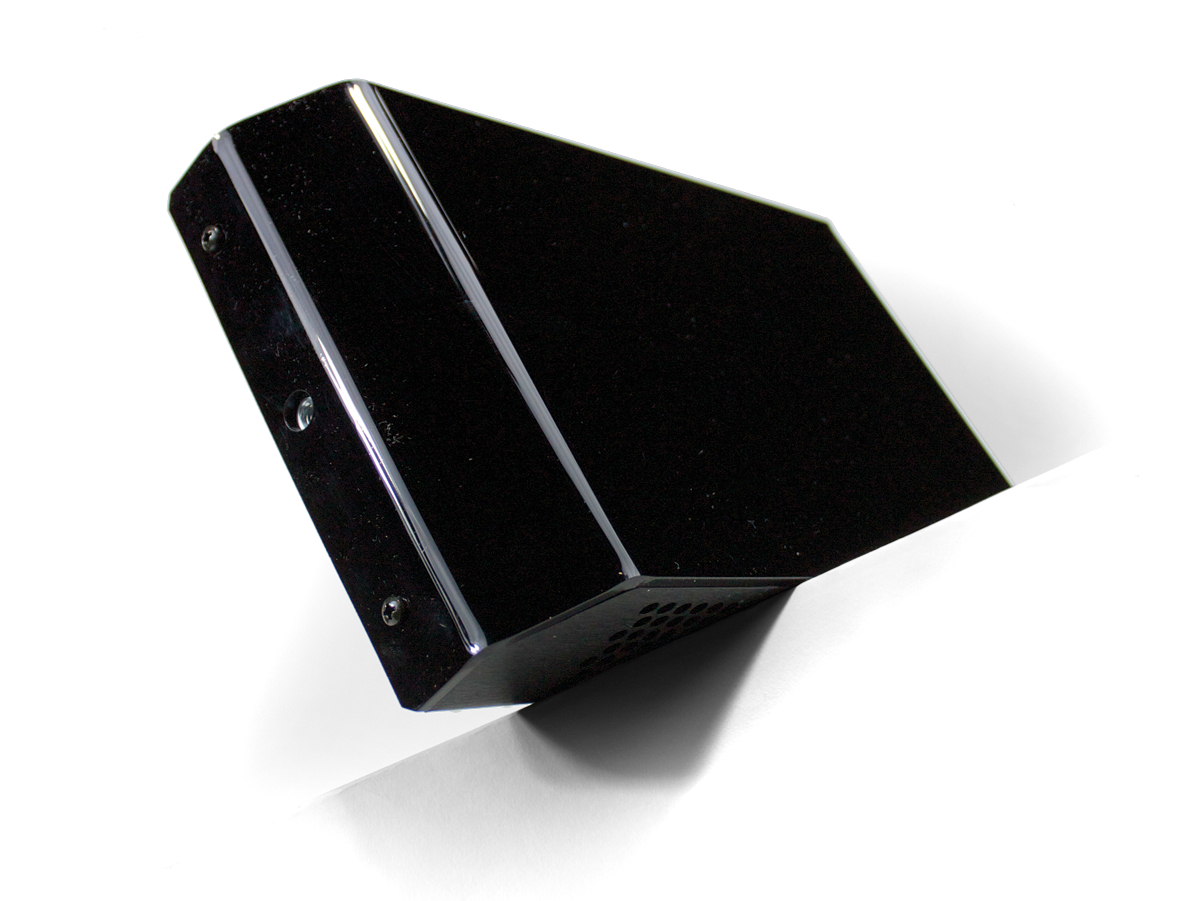

Williams Sound's WIR TX9 DC emitter produces a wide-angle infrared signal that concentrates IR energy efficiently in the listening area.
Learn More
Our Price: $825.00
List Price: $916.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Williams Sound WIR-TX9-DC
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Williams Sound's WIR TX9 DC emitter produces a wide-angle infrared signal that concentrates IR energy efficiently in the listening area. Operating on the 2.3-3.8 MHz bandwidth, the WIR TX9 DC is less susceptible to radio and lighting interference. Each WIR TX9 DC emitter can cover up to 30,000 sq. feet (2,787 sq. meters) in single-channel operation. The coverage area can be easily increased by daisy-chaining additional WIR TX9 DC emitters. A wall/ceiling omnidirectional mount is included, and stand kits are available for portable operation.

Williams Sound WIR-TX9-DC Includes:

  • (1) WIR TX9 DC emitter
  • (1) TFP 053 power supply
  • (1) BKT 024 wall/ceiling mount
  • (1) WCA 123 50’ power extension cable
  • (1) WCA 084 100’ RG58 coax cable

Williams Sound WIR-TX9-DC Features:

  • Energy Star 6 Compliance
  • Now with improved range up to 30,000 sq ft
  • Elimination of wall-mount power supply
  • Fully compatible with previous generations

Williams Sound WIR-TX9-DC Specifications:

  • The emitter shall be contained in a metal enclosure with a shatter-resistant lens
  • The emitter shall include an omni-directional mounting bracket for permanent installation and a bracket shall be available for mounting on a floor stand for portable installations
  • Each emitter shall be powered by a universal power supply with an output of 24 VDC, 1.0 A, 25 W
  • The power connector shall be a barrel style
  • The emitter shall have a BNC-type 50 ohm baseband input and 2 BNC-type baseband 50 ohm output jack
  • The emitter shall have a repeater circuit to allow multiple numbers of emitters to operate from the baseband signal
  • The emitter shall have a visible LED indicator for power and for baseband signal. Carrier frequency is 2.3 MHz to 3.8 MHz
  • The emitter shall shut off when the baseband signal is not present
  • The emitter shall provide an effective coverage area of up to 30,000 sq ft (2,787 sq m) in single-channel mode and up to 19,000 sq. ft. (1,765 sq. m.) in two-channel mode when using the RX22-4, or RX18 receivers
  • The emitter shall be convection-cooled, without fans
  • The emitter shall have CE, FCC, RoHS, and WEEE approval and carry a five-year warranty on parts and labor
  • The emitter shall be Williams Sound model WIR TX9 DC
