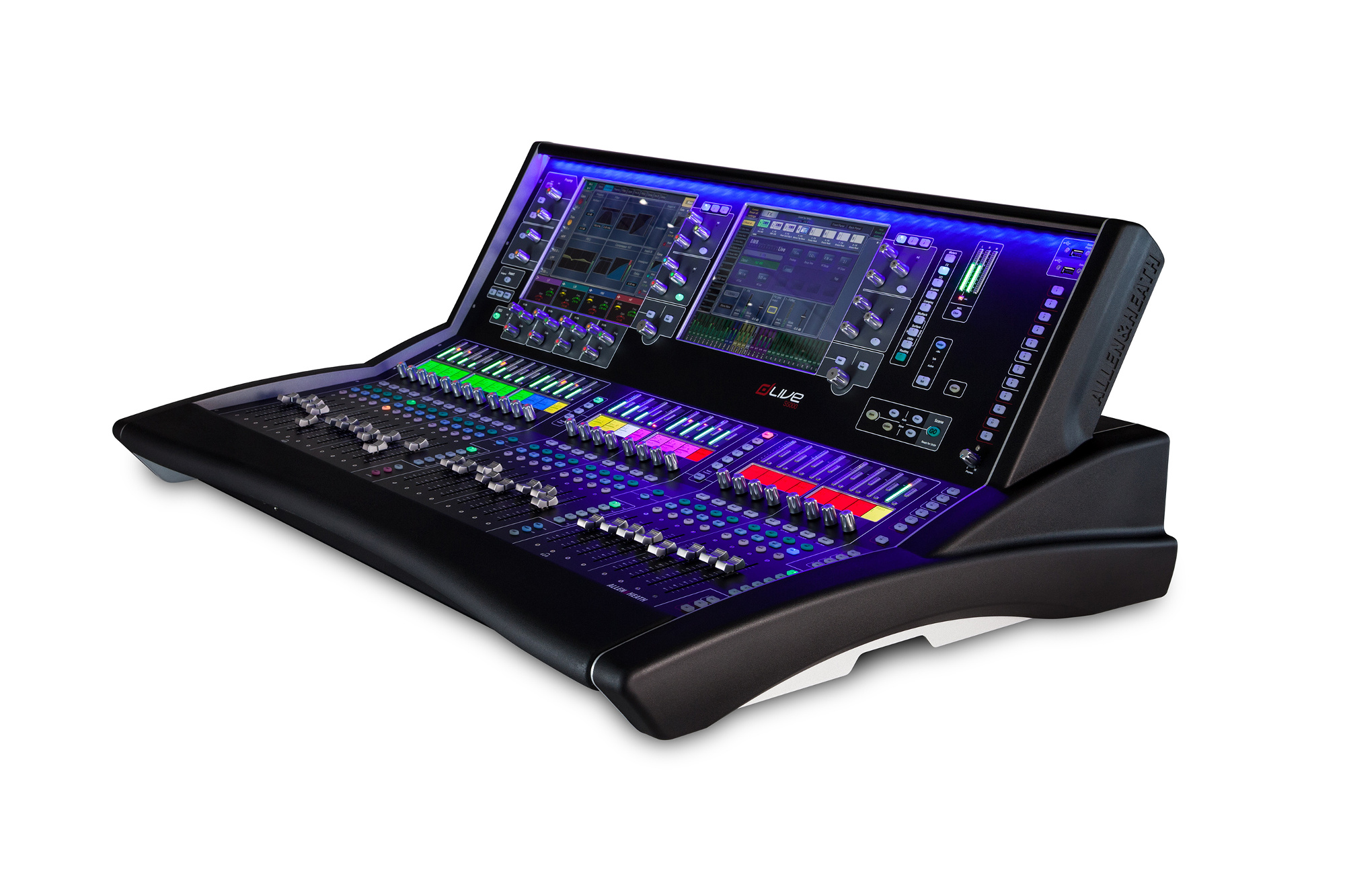

Allen & Heath dLive S5000 [MFR-USED RESTOCK MODEL]
Live Mixing Control Surface with 28 Faders and Dual 12" Touchscreens

OUR PART #:  DLIVE-S5-B2

The Allen & Heath dLive S5000 is a medium-sized control Surface for the dLive MixRack, with the addition of built-in audio I/O and audio networking ports.
Learn More

Call for price! Not available online.

Similar Products

The Allen & Heath dLive S5000 is a medium-sized control Surface for the dLive MixRack, with the addition of built-in audio I/O and audio networking ports. It features 28 faders over 6 layers, dual 12" capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.

NOTE: This product was used by the manufacturer at a trade show, or by a sponsored artist. The item may have some minor signs of use, but is in close-to-new condition. This item carries the full warranty from the manufacturer. Please contact your Sales Pro for more information on this and other products.


Harmony User Interface
Where many digital consoles try to recreate the experience of using an analogue mixer, dLive is a true digital native, drawing on our familiarity with the ubiquitous smartphones and tablets that we all use without thinking. The single or twin 12” capacitive touchscreens on the dLive consoles feel instantly familiar, responding to every pinch, swipe, drag and drop exactly how you’d expect them to. Bespoke ‘widget’ areas can also be set up on the screens to keep track of scenes, meters, FX and other custom controls. The screen is framed by a set of one knob / one function rotary controls, allowing the creativity and immediacy of tactile control over key processing functions, working in harmony with the visual feedback displayed on the screen. The rotary knobs have been prototyped 20+ times to achieve optimal grip and precision control, and feature RGB illumination, with colours mapped to functions for instant visual orientation.

Transparent Workflow
As systems become ever more complex and as I/O counts grow exponentially, engineers can find themselves feeling increasingly removed from the action on stage as they are drawn more and more into managing the arsenal of technologies at their disposal. Throughout the dLive design process our guiding aim has been to create fast and transparent workflows that allow the engineer to focus on the mix, not the mixer. The dLive layout is fully customisable, allowing the user to create a mixing interface that matches their own mental map of the show. Every input or mix can be assigned to any and every bank and / or layer, virtual scribble strips allow inputs and mixes to be clearly named and colour coded for at-a-glance navigation, and the engineer has no less than 26 assignable SoftKeys at their disposal, plus 3 pages of 6 assignable rotaries per screen.

Built to Endure
Maybe it’s no coincidence that our lead mechanical designer on the dLive project used to be a tank commander. All dLive consoles have been designed to deliver the optimal balance between strength and weight, employing higher grade metal on the sides and folded steel at key points for added rigidity. Not only does every console, MixRack and expander have dual power supply slots for redundancy, but we’ve also employed the same rugged, hot-swappable PSU design across the range for maximum peace of mind and minimum inventory. Dual redundancy is also built into every audio connection throughout the system. We have also paid particular attention to console illumination, conducting rigorous trials to ensure that dLive excels in the sunny, outdoor settings where many digital consoles become almost unusable.

Allen & Heath dLive S5000 Features:

  • 28 faders
  • Fully assignable layout – 168 fader strips
  • Harmony UI integrates screen and wrap-around controls:
    • Dual 12” capacitive touchscreen
    • Gesture control – pinch, swipe, drag ‘n drop
    • Dedicated multi-mode EQ view
    • Configurable widget areas for Scenes, meters, FX and more
    • 3 pages of 6 assignable rotaries per screen
  • 26 assignable SoftKeys
  • Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback
  • 8 XLR mic/line in, 8 XLR line out
  • 2 digital st AES3 in, 3 digital st AES3 out
  • Connection hub:
    • Dual redundant Giga ACE gigabit link to MixRack
    • 1x redundant DX link for I/O expansion
    • 2x I/O Ports – 128 ch 96 kHz each
    • 2x Network ports
    • Wordclock BNC I/O
    • Video outpu
  • Dual redundant, hot swappable power supply

Allen & Heath dLive S5000 Specifications:

  • INPUTS:
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analog Gain: +5 to +60dB, 1 dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu
    • Input Impedance:
      • >4 kOhm (Pad out)
      • >10 kOhm (Pad in)
    • Mic EIN: -127dB with 150 Ohm source
    • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
    • Digital Inputs:
      • AES3 2Ch XLR, 2.5Vpp balanced terminated 110 Ohm
      • SRC on each pair, range 32k-192kHz, with bypass option
  • OUTPUTS:
    • Analog XLR Outputs: Balanced, Relay protected
    • Output Impedance: <75 Ohm
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise:
      • -92dBu (muted, 20-20kHz
      • -90dBu (muted, 20-40kHz)
    • Digital Outputs:
      • AES 2-Channel XLR, 2.5Vpp balanced; terminated 110 Ohm
      • 96kHz sampling rate, switchable to 48kHz, 44.1kHz
  • SYSTEM:
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Internal operating level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak Indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz ± 20 PPM
    • ADC: 24-bit Delta-Sigma
    • DAC: 24-bit Delta-Sigma
    • Latency:
      • <0.6 ms (MixRack XLR in to XLR out, Input to Mix)
      • + 5 samples, Surface to Mixrack (GigaACE hop)
      • + 8 samples, DX32 to Mixrack (DX hop)
    • Operating Temperature Range: 0° to 35°C (32°F to 95°F)
    • Mains Power (MPS16): 100-240V AC, 47-63Hz, 300W max
  • DIMENSIONS & WEIGHTS:
    • Unboxed:
      • Dimensions: 1115 x 728 x 413 mm (43.9" x 28.7" x 16.3")
      • Weight: 35kg (77 lbs.)
    • Boxed:
      • Dimensions: 1290 x 920 x 560 mm (50.8" x 36.2" x 22")
      • Weight: 50kg (110.2 lbs.)
