Audio-Technica ATM350W Cardioid Instrument Mic with Woodwind Mount, 5" Gooseneck

OUR PART #: ATM350W MFR #: ATM350W

Copied to clipboard

An instrument pickup microphone system designed especially for use with woodwinds, the ATM350W UniMount® mounting system gives you the tools to perform with confidence. ...Read more

Audio-Technica ATM350W Cardioid Instrument Mic With Woodwind Mount, 5" Gooseneck Image 1
Audio-Technica ATM350W Cardioid Instrument Mic With Woodwind Mount, 5" Gooseneck Image 2
Audio-Technica ATM350W Cardioid Instrument Mic With Woodwind Mount, 5" Gooseneck
Our Price: $349.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

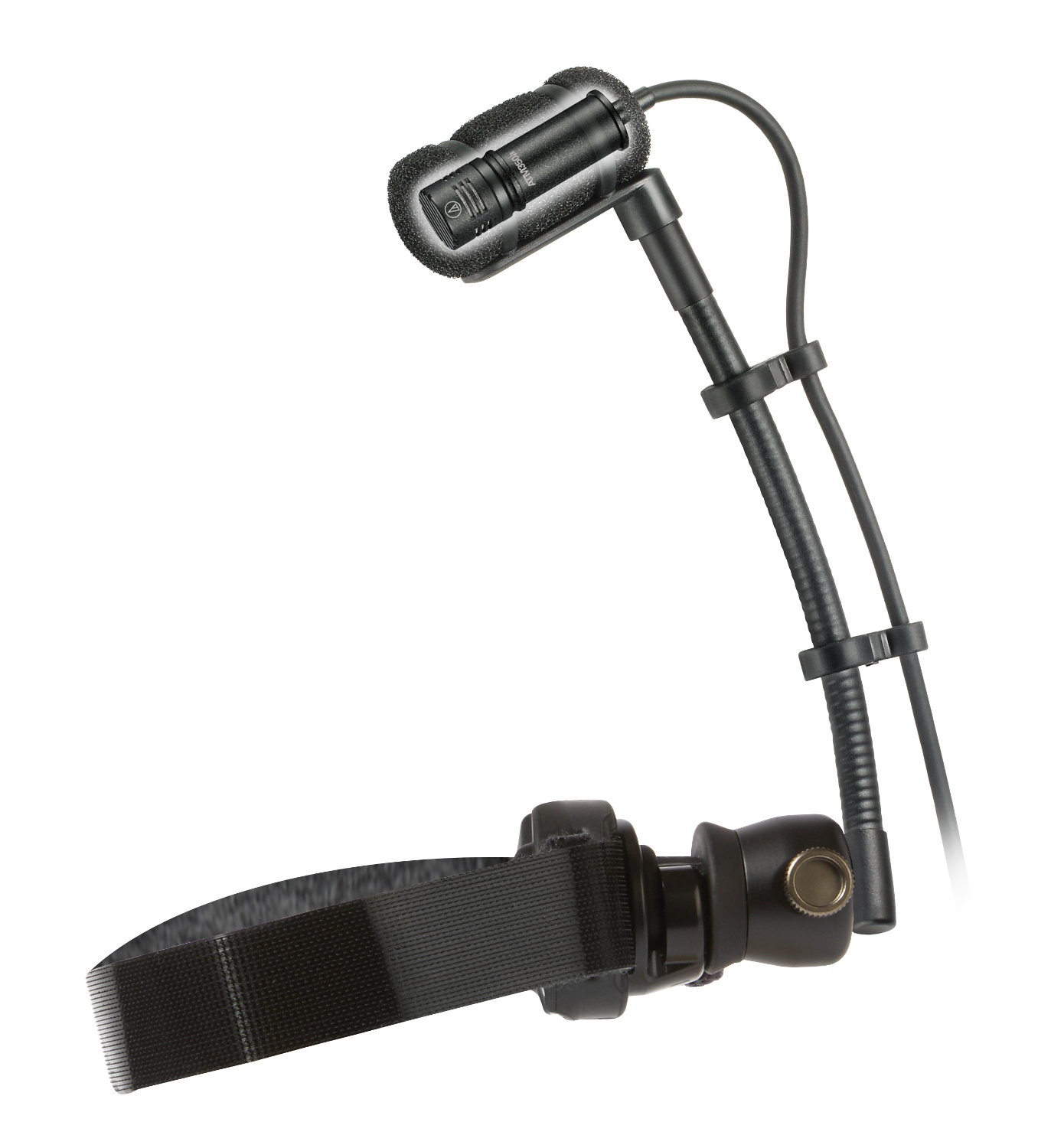

An instrument pickup microphone system designed especially for use with woodwinds, the ATM350W UniMount® mounting system gives you the tools to perform with confidence. This particular system features the ATM350a cardioid condenser microphone, a high-SPL (sound pressure level) mic that delivers a clear, well-balanced audio response from any instrument. When employed with the included AT8491U UniMount® universal clip-on mount, plus the strong and flexible AT8490 UniMount® 5" gooseneck, this mic system can be securely affixed to any woodwind instrument, then positioned to stay where you want it. The mount has a unique spring-loaded mechanism that clamps it tightly to the bell of a brass instrument, providing excellent shock-resistance, while the gooseneck’s rigidity ensures that it won’t flop around no matter how aggressively you play.

The mic’s polar pattern offers isolation of the desired instrument's signal via the reduction of side and rear pickup, and its switchable 80Hz high-pass filter on its in-line power module helps control undesired low-frequency (LF) noise.

Includes

  • ATM350acW cardioid condenser wireless microphone
  • AT8543 power module
  • AT8491W UniMount® woodwind mount
  • AT8490 UniMount® 5" gooseneck
  • AT8468 violin mount (hook-and-loop fastener)
  • Protective carrying case

Features

  • Low-profile mic design for minimum visibility
  • Crisp, clear, well-balanced microphone response, even at high SPLs
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • UniMount® woodwind mount attaches securely to any woodwind instrument via a flexible strap, providing excellent shock resistance for the microphone
  • Rugged UniMount® 5" gooseneck rigidly holds itsshape, keeping microphone accurately positioned even during aggressive play
  • In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
  • Interchangeable elements available for hypercardioid and omnidirectional polar patterns (sold separately)
  • Included violin mount with hook-and-loop fastener provides an additional mounting option

Specifications

  • Element: Fixed-charge back plate, permanently-polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 40 – 20,000Hz
  • LF Roll-Off: 80Hz, 12dB/octave
  • Open Circuit Sensitivity: –49dB (3.5mV) re 1V @ 1Pa
  • Impedance: 200Ω
  • Maximum Input Sound Level: 159dB SPL, 1kHz @ 1% T.H.D.
  • Dynamic Range (Typical): 130dB, 1 kHz @ Max SPL
  • Signal-to-Noise Ratio: 65dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 11 – 52VDC, 3.5mA, typical
  • Switch: Flat, roll-off
  • Weight, Microphone: 0.5oz. (14.5g)
  • Weight, Power Module: 3.2oz. (90g)
  • Dimensions, Microphone (L x max. body Dia): 1.49" x 0.48" (37.8 x 12.2mm)
  • Dimensions, Power Module (L x Dia): 3.62" x 0.74" (92 x 18.9mm)
  • Output Connector (Power Module): Integral 3-pin XLRM-type
  • Cable: permanently attached to microphone, (L x Dia) 13.1' x 0.13" (4.0m x 3.2mm), 2-conductor shielded, with HIROSE HR10-type connector
  • Note: further information can be found within the items located under the "Documentation" tab above.
