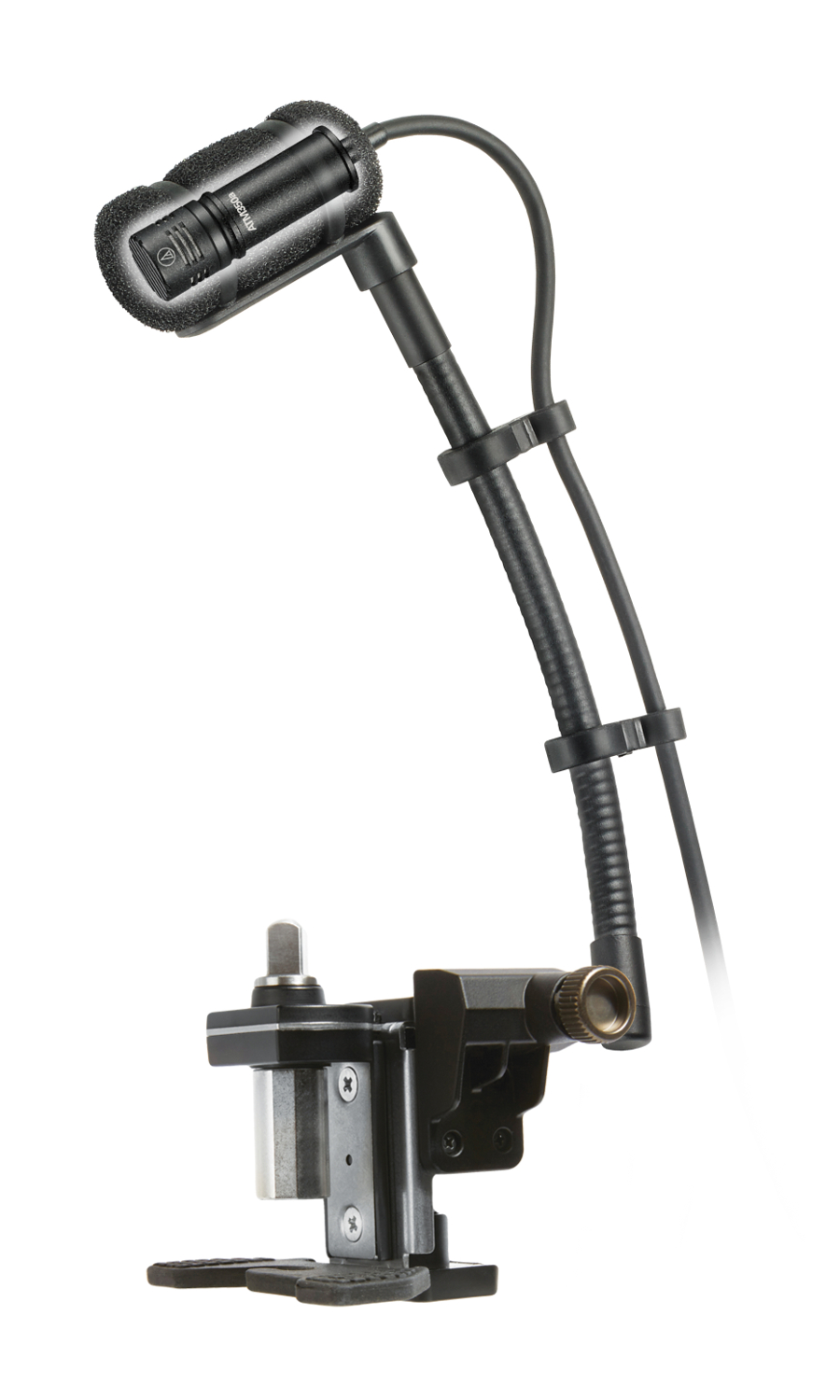

Audio-Technica ATM350D Cardioid Condenser Drum Mount Instrument Mic + 5" Gooseneck

An instrument pickup microphone system — in this case specially-designed for use with drums, the Audio-Technica ATM350D UniMount® mounting system gives you the tools to perform with confidence. This particular system features the ATM350a cardioid condenser microphone, a high-SPL (sound pressure level) mic that delivers a clear, well-balanced audio response from any instrument. When it's used with the included AT8491D drum mount plus the strong, flexible AT8490 5" gooseneck, the mic can be securely affixed to the drum, then positioned to stay where you want it. The drum mount is equipped with a unique spring-loaded mechanism that clamps it tightly to a drum lug (without hindering your ability to adjust the lug) and provides the mic with excellent shock-resistance, while the gooseneck’s rigidity ensures that it won’t flop around no matter how aggressively you play.

The mic’s polar pattern offers isolation of the desired instrument's signal through the reduction of side and rear pickup, and its switchable 80Hz high-pass filter on its in-line power module helps control undesired low-frequency (LF) noise. This system also includes an AT8468 violin mount with hook-and-loop fastener as well. and a protective carrying case.

Includes

• ATM350a cardioid condenser microphone
• AT8543 power module
• AT8491D UniMount® drum mount
• AT8490 5" UniMount® gooseneck
• AT8468 violin mount (hook-and-loop fastener)
• Protective carrying case

Features

• Low-profile mic design for minimum visibility
• Crisp, clear, well-balanced microphone response, even at high SPLs
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• UniMount® drum mount with unique spring-loaded mechanism attaches securely to a drum lug, and provides excellent shock resistance for the microphone
• Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
• In-line power module is equipped with a switchable 80Hz high-pass filter to control undesired LF ambient noise
• Interchangeable elements available for hypercardioid and omnidirectional polar patterns (sold separately)
• Included violin mount with hook-and-loop fastener provides an additional mounting option

Specifications

• Element: Fixed-charge back plate, permanently-polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 – 20,000Hz
• Low Frequency Roll-Off: 80Hz, 12dB/octave
• Open Circuit Sensitivity: –49dB (3.5mV) re 1V @ 1Pa
• Impedance: 200Ω
• Maximum Input Sound Level: 159dB SPL, 1kHz @ 1% T.H.D.
• Dynamic Range (typical): 159dB SPL, 1kHz @ 1% T.H.D.
• Signal-to-Noise Ratio: 65dB, 1kHz @ 1Pa
• Phantom Power Requirements: 11– 52VDC, 3.5mA, typical
• Switch: Flat, roll-off
• Weight, Microphone: 0.5oz. (14.5g)
• Weight, Power Module: 3.2oz. (90g)
• Dimensions:
  • Microphone, Power Module (L x max. body Dia): 1.49" x 0.48 (7.8 x 12.2mm)
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Cable: permanently attached to microphone, (L x Dia) 13.1' x 0.13" (4.0m x 3.2mm), 2-conductor shielded, with HIROSE HR10-type connector
• Note: further information can be found within the items located under the "Documentation" tab above.
