RME Digiface USB
Compact and Portable Digital Audio Interface with 4 Optical ADAT / SPDIF I/Os, 66-Channel 192 kHz

OUR PART #:  DIGIFACE-USB

The RME Digiface USB is an extremely compact & portable digital audio interface with 4 optical ADAT / SPDIF I/Os...
Learn More
Our Price: $499.00
List Price: $599.00
You save 17%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RME Digiface USB
Qty:
In Stock

Similar Products

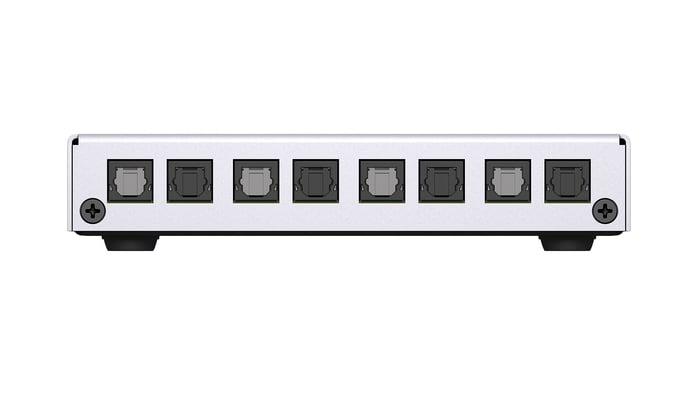

The RME Digiface USB is an extremely compact & portable digital audio interface with 4 optical ADAT / SPDIF I/Os, and an analog high-quality line/phones output via 6.3 mm TRS jack. Continuing the legacy of RME‘s famous HDSP Digiface, a triple ADAT I/O interface with phones and PCI interface, Digiface USB simplifies connection with USB 2, does not need an external power supply, and even adds another optical I/O, resulting in 32 channels input and output each when using ADAT optical.

The analog output hosts channels 33/34, and can be used freely thanks to TotalMix FX, RME‘s routing and monitoring solution that knows nearly no limits in routing and mixing (the Digiface USB does not include FX).

Each single optical port can use either ADAT (up to 8 channels) or SPDIF (stereo). While the inputs adapt automatically to the received signal format, the outputs can be individually switched between ADAT and SPDIF operation. Supported are SMUX and SMUX4. Therefore at 192 kHz either 8 channels via 4 x SPDIF or ADAT are possible on both inputs and outputs.

Its small size, weight and bus-powered operation make the Digiface USB extremely versatile and useful. It could even serve as simple headphone amp for mobile use.

RME Digiface USB Connectivity:

  • 66 channels: 32 in / 34 out
  • 4 x ADAT/SPDIF Input
  • 4 x ADAT/SPDIF Output
  • 1 x Phones TRS Stereo Output
  • TotalMix
  • No external power supply required

RME Digiface USB Specifications:

  • Inputs: 4 x ADAT/SPDIF
  • Outputs: 4 x ADAT/SPDIF / 1 x Phones TRS Stereo 6.3 mm
  • Clock modes: Internal, ADAT In, SPDIF In
  • Sample rates: 28 kHz up to 200 kHz
  • Jitter: < 1 ns, internal and all inputs
  • Jitter sensitivity: PLL operates even at 100 ns Jitter
  • TotalMix: 2244 channel mixer with 46-bit internal resolution
  • TotalMix: latency-free submixes and perfect ASIO Direct Monitoring
  • Interface: USB 2.0, bus-powered
  • Comes with DIGICheck, RME's ultimate measurement, analysis and test tool
  • Drivers:
    • Windows 7/8/10 (Multi-Client operation of ASIO and WDM)
    • Mac OS X (10.6 or up, Core Audio)
