Galaxy Audio EDXR
EDX Receiver

OUR PART #:  EDXR

The Galaxy Audio EDX Series is a dual channel wireless system.
Learn More
Selected Model Price: $99.99
List Price: $149.99
Save up to 33%!
Write the first review.
Galaxy Audio EDXR
Select a Model: (shipping times are approximate)

Related Products

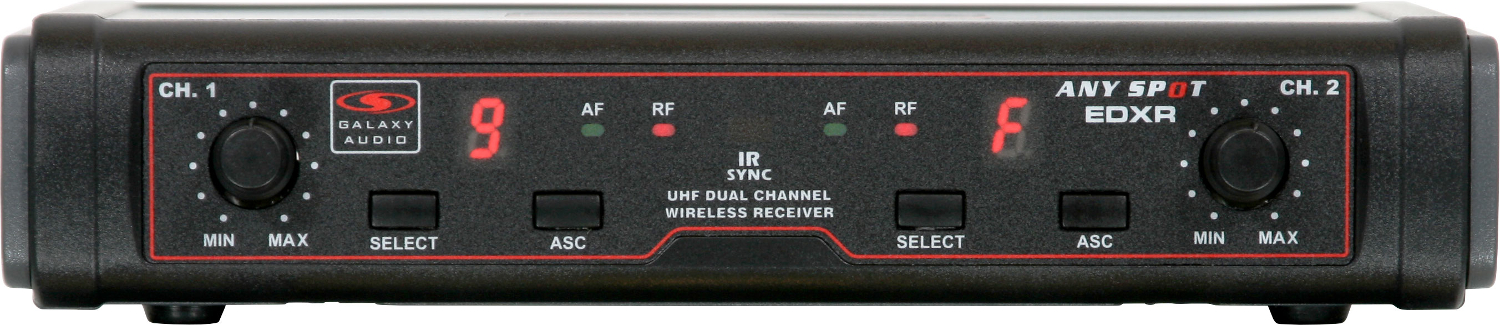

The Galaxy Audio EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

Galaxy Audio EDXR Receiver Features:

  • AF & RF Indicator
  • IR Sync
  • 1 Mixed 1/4" Output, 2 Balanced Male XLR Output
  • 2 Internal Antennas (Non-Diversity)
  • Rugged Plastic Casing

Galaxy Audio EDXR Receiver Specifications:

  • Audio Output Level
  • XLR Connector (into Ohms 600 load) -12 dBV
  • 1/4" Connector (into 3k Ohms load) -18 dBV
  • Output Impedance
  • XLR Connector 200 Ohms
  • 1/4" Connector 1k Ohms
  • Sensitivity: -92 dBm
  • Image Rejection: >92 dB
  • Dimensions (H x W x D): 1.7" x 8.3" x 5" (42 x 210 xno 127 mm)
  • Weight: 13.6 oz (390 g)
  • Power Requirements: 12-18 V dc at 300mA, supplied by external power supply

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
