Galaxy Audio EDXR/HHBPV EDXR UHF Wireless Dual Combo System, Body Pack with Lavalier Mic, Handheld Transmitter / Mic

The Galaxy Audio EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Syc from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

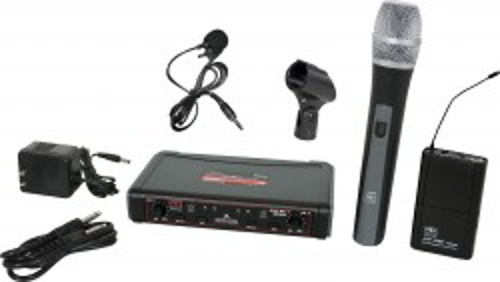

EDXR/HHBPV - Lavalier Microphone: Uni-Directional. This system includes the EDXR Receiver, the HH38 Hand Held Transmitter, the MBP38 Body Back Transmitter, and the LV13-UBK Lavalier Microphone.

Galaxy Audio EDXR Receiver Features:

• AF & RF Indicator
• IR Sync
• 1 Mixed 1/4" Output, 2 Balanced Male XLR Output
• 2 Internal Antennas (Non-Diversity)
• Rugged Plastic Casing

Specifications:

• Galaxy Audio EDXR Receiver
  • Audio Output Level
    • XLR Connector (into Ohms 600 load) -12 dBV
    • 1/4" Connector (into 3k Ohms load) -18 dBV
  • Output Impedance
    • XLR Connector 200 Ohms
    • 1/4" Connector 1k Ohms
  • Sensitivity: -92 dBm
  • Image Rejection: >92 dB
  • Dimensions (H x W x D): 1.7" x 8.3" x 5" (42 x 210 x127 mm)
  • Weight: 13.6 oz (390 g)
  • Power Requirements: 12-18 V dc at 300mA, supplied by external power supply
• Galaxy Audio HH38 Handheld Transmitter
  • Max Audio Input Level: 0 dBV
  • Gain Adjust: Trim pot
  • RF Output: 10 mW
  • Frequency Response: 70 Hz - 10 kHz
  • Dimensions: 10.8" x 1.9" (275 x 47 mm) (L x Dia.)
  • Weight: 6.9 oz. (195 g) (without batteries)
  • Power Requirements: 2 “AA” size alkaline or rechargeable batteries
  • Battery Life: About 8 hours (Alkaline)
• Galaxy Audio MBP38 Body Pack Transmitter
  • Max Audio Input Level: 0 dBV to +20 dBV
  • Gain Adjust: Mic/0 dB/-10 dB
  • RF Output: 10 mW
  • Input Impedance: 5k Ohms
  • Dimensions (H x Wx D): 3.3" x 2.6" x 1" (85 x 65 x 23 mm)
  • Weight: 2.8 oz (80 g) (without batteries)
  • Power Requirements: 2 “AA” size alkaline or rechargeable batteries
  • Battery Life: About 8 hours (Alkaline)
