Galaxy Audio EDXR/HHBPS
EDXR Receiver, HH38 Hand Held Transmitter, MBP38 Body Back Transmitter, and HS13-UBK Headset Microphone

OUR PART #:  EDXR/HHBPS

The Galaxy Audio EDX Series is a dual channel wireless system.
Learn More
Selected Model Price: $199.99
List Price: $449.97
Save up to 56%!
Write the first review.
Galaxy Audio EDXR/HHBPS
Select a Model: (shipping times are approximate)

Related Products

The Galaxy Audio EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Syc from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

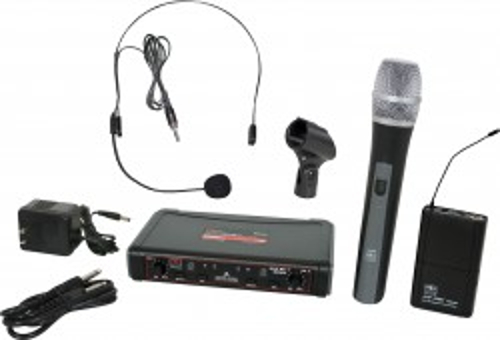

EDXR/HHBPS - Headset Microphone: Uni-Directional. This system includes the EDXR Receiver, the HH38 Hand Held Transmitter, the MBP38 Body Back Transmitter, and the HS13-UBK Headset Microphone.

Galaxy Audio EDXR Receiver Features:

  • AF & RF Indicator
  • IR Sync
  • 1 Mixed 1/4" Output, 2 Balanced Male XLR Output
  • 2 Internal Antennas (Non-Diversity)
  • Rugged Plastic Casing

Galaxy Audio EDXR Receiver Specifications:

  • Audio Output Level
    • XLR Connector (into Ohms 600 load) -12 dBV
    • 1/4" Connector (into 3k Ohms load) -18 dBV
  • Output Impedance
    • XLR Connector 200 Ohms
    • 1/4" Connector 1k Ohms
  • Sensitivity: -92 dBm
  • Image Rejection: >92 dB
  • Dimensions (H x W x D): 1.7" x 8.3" x 5" (42 x 210 x127 mm)
  • Weight: 13.6 oz (390 g)
  • Power Requirements: 12-18 V dc at 300mA, supplied by external power supply

Galaxy Audio HH38 Handheld Transmitter Specifications:

  • Max Audio Input Level: 0 dBV
  • Gain Adjust: Trim pot
  • RF Output: 10 mW
  • Frequency Response: 70 Hz - 10 kHz
  • Dimensions: 10.8" x 1.9" (275 x 47 mm) (L x Dia.)
  • Weight: 6.9 oz. (195 g) (without batteries)
  • Power Requirements: 2 “AA” size alkaline or rechargeable batteries
  • Battery Life: About 8 hours (Alkaline)

Galaxy Audio MBP38 Body Pack Transmitter Specifications:

  • Max Audio Input Level: 0 dBV to +20 dBV
  • Gain Adjust: Mic/0 dB/-10 dB
  • RF Output: 10 mW
  • Input Impedance: 5k Ohms
  • Dimensions (H x Wx D): 3.3" x 2.6" x 1" (85 x 65 x 23 mm)
  • Weight: 2.8 oz (80 g) (without batteries)
  • Power Requirements: 2 “AA” size alkaline or rechargeable batteries
  • Battery Life: About 8 hours (Alkaline)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
