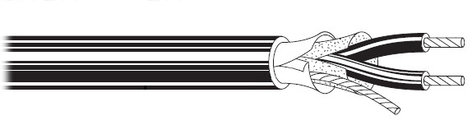

Belden 9452-1000
1000 ft High Conductivity Copper, Two-Conductor, Low-Impedance Mic-Music Instrument Cable

OUR PART #:  9452-1000

Belden's 9452, part of Belden's Brilliance® Broadcast Cable line, is a 1000-foot segment of 24 AWG stranded (19x36) HC TC conductors...
Learn More
Our Price: $345.89
List Price: $453.08
You save 24%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 9452-1000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

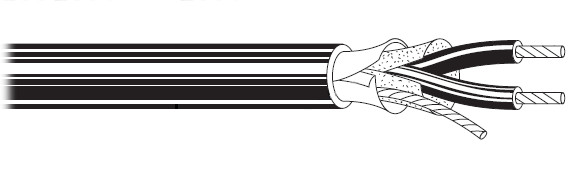

Belden's 9452, part of Belden's Brilliance® Broadcast Cable line, is a 1000-foot segment of 24 AWG stranded (19x36) HC TC conductors, high-density polyethylene insulation, twisted pair, noise reducing tape, Beldfoil® shield (100% coverage), 24 AWG stranded TC drain wire with a PVC jacket.

Belden 9452 Specifications:

Physical Characteristics (Overall):

Conductor

  • AWG:
    • # Conductors/AWG:  2/24
    • Stranding Conductor Material Dia.:  19x36 High Conductivity TC - Tinned Copper 0.024"
    • Total Number of Conductors:  2

Insulation

  • Insulation Material:  HDPE - High Density Polyethylene
  • Insulation Material Wall Thickness/Dia.:   0.008" (0.2032mm)/0.040" (1.016mm)

Outer Shield

  • Outer Shield Material:
    Layer # / Outer Shield Trade Name:
    • 1 / --
    • 2 / Beldfoil®
  •  Layer # / Type Outer Shield Material Coverage
    • 1 / Tape Noise Reducing 100%
    • 2 / Tape Aluminum Foil-Polyester Tape 100%
  • Outer Shield Drain Wire AWG:  24 Stranded
    AWG Stranding Drain Wire Conductor Material:  TC - Tinned Copper

Outer Jacket

  • Outer Jacket Material:  PVC - Polyvinyl Chloride

Overall Cable

  • Overall Nominal Diameter: 0.135" (3.429mm)
  • Overall Weight:  6.5 lbs. (2.7kg)
  • Color Code:  Black, Red

Mechanical Characteristics (Overall):

  • Operating Temperature Range:  -40°C To +75°C
  • Non-UL Temperature Rating:  75°C
  • Bulk Cable Weight:  11 lbs/1000 ft. (16.370Kg/Km)
  • Max. Recommended Pulling Tension:  17.700 lbs(78.733 N)
  • Min. Bend Radius/Minor Axis:  1.500" (38.100 mm)

Applicable Specifications and Agency Compliance (Overall):

Applicable Standards & Environmental Programs

  • EU Directive 2011/65/EU (ROHS II):  Yes
  • EU CE Mark:  Yes
  • EU Directive 2000/53/EC (ELV):  Yes
  • EU Directive 2002/95/EC (RoHS):  Yes
  • EU RoHS Compliance Date (mm/dd/yyyy):  01/01/2004
  • EU Directive 2002/96/EC (WEEE):  Yes
  • EU Directive 2003/11/EC (BFR):  Yes
  • CA Prop 65 (CJ for Wire & Cable):  Yes
  • MII Order #39 (China RoHS):  Yes
  • Plenum/Non-Plenum
    • Plenum (Y/N):  No

Electrical Characteristics (Overall)

  • Nom. Characteristic Impedance
    • Impedance:  56 Ohms
  • Nom. Inductance:
    • Inductance:  0.18 µH/ft (0.59058 µH/m)
  • Nom. Capacitance Conductor to Conductor:
    • Capacitance:  30 pF/ft (98.43 pF/m)
  • Nom. Capacitance Cond. to Other Conductor &Shield:
    • Capacitance:  58 pF/ft (190.298 pF/m)
  • Nom. Conductor DC Resistance:
    • DCR @ 20°C:  25 Ohms/1000 ft (82.025 Ohms/km)
  • Nominal Outer Shield DC Resistance:
    • DCR @ 20°C:  16.5 Ohms/1000 ft (54.1365 Ohms/km)
  • Max. Operating Voltage - Non-UL:  200 V RMS
  • Max. Recommended Current:  2.2 Amps perconductor@ 25°C
