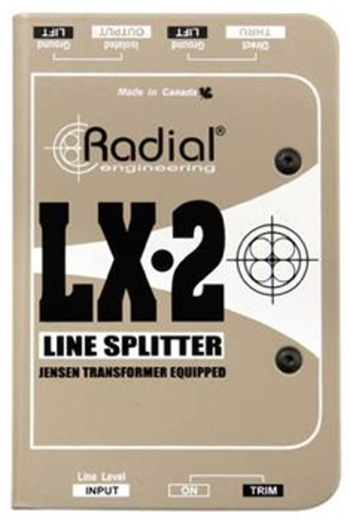

Radial Engineering LX-2
2-Channel Passive Line Level Splitter

OUR PART #:  LX-2

The Radial LX-2™ is a passive balanced line level audio splitter that allows you to easily send an audio signal to two different destinations at once without noise...
Learn More
Our Price: $219.99
List Price: $250.00
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radial Engineering LX-2
Qty:
In Stock

Similar Products

The Radial LX-2™ is a passive balanced line level audio splitter that allows you to easily send an audio signal to two different destinations at once without noise, while also providing the ability to attenuate the signal to tame hot outputs from a mixing console or mic preamp.

Radial Engineering LX-2 Features:

  • Split one audio signal to two destinations simultaneously
  • Jensen® transformer equipped for exceptional audio quality
  • Eliminates hum and buzz caused by ground loops
  • Variable trim control can be engaged for easy level adjustment

Radial Engineering LX-2 Specifications:

  • Audio Circuit Type: Passive, transformer based
  • Frequency Response: 20Hz - 20kHz +/-0.5dB
  • Total Harmonic Distortion: <0.001% @ 1kHz
  • Dynamic Range: 140dB
  • Gain: -1.5dBu
  • Maximum Input: +21dBu
  • Max Attenuation — Trim Control: -10dB into a 10kOload
  • Noise Floor: -119dBu
  • Phase Deviation: +0.3° @ 20Hz
  • Common Mode Rejection: 94dB @ 60Hz, 83dB @3kHz
  • Input Impedance: 716 Ohm
  • Output impedance: 116 Ohm
