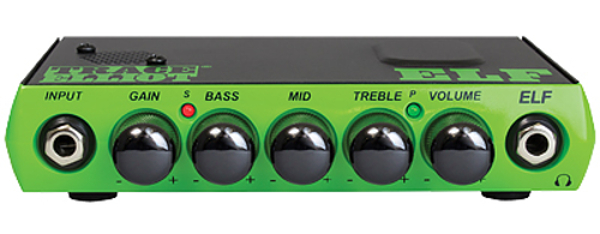

Trace Elliot ELF Bass Amp

Weighing just 1.6 lbs., the Trace Elliot® ELF bass amplifier is a revolutionary amp that's small enough to fit in your back pocket. Its remarkable technology and size make it the most portable, gig-worthy bass amp ever made; an ideal solution for any bass player concerned with size and weight, but not willing to compromise on tone or performance.

It delivers a solid, fan-cooled 200 continuous watts RMS at 4 Ohms. Its switch mode power supply has thermal as well as over-current protection, and its gain knob features a bicolor LED that turns red whenever the preamp compressor engages. The unique input gain features 3 operational modes: uncompressed, variable multiband compression, and overdrive. In terms of sonic quality, it provides a clean signal path with simple controls, making it easy to achieve a professional bass tone. The 3-band rotary EQ has 3 proprietary Trace Elliot filters: low-center (80 Hz), mid-center (500 Hz) and high-center (4.2 kHz). Additionally, its Studio-quality XLR outputs and ground-lift switch ensure that the tone the player has on stage is the same as that reproduced in the PA. There's also a headphone output, enabling quiet practice.

The ELF comes with an embroidered nylon carrying case and a Union Jack sticker that reminds of Trace Elliot's U.K. roots.

Trace Elliot ELF Features:

• Extremely portable 1.60 lbs. (0.73 kg)
• 200W continuous into 4 Ohms / 130W continuous into 8 Ohms
• Wide range input gain control with signal-level indicator
• 3-band rotary equalizer that emulates the response of classic Trace Elliot multi-band graphic EQ filters
• Ultra-high preamp input impedance ( >10 meg Ohms) for maximum sensitivity when using passive pickups
• Post EQ balanced XLR DI output with ground lift for sending classic Trace Elliot tone to a mixing console or recording device
• ¼" (6.35mm) headphone output for quiet practice

Trace Elliot ELF Specifications:

• Mains Voltage:
  • 100-120 VAC - 50/60 Hz - T3.15AL/250V
  • 230 VAC - 50/60 Hz - T1.6AL/250V
• Power Consumption:
  • Typical = 30W
  • Maximum = 240W
• SMPS:
  • Thermal protection
  • Over-current protection
• Power Amplifier
  • Protection:
    • Clip limiting
    • Thermal
    • Over-current / Short-circuit
    • DC output
  • Minimum Load: 4 Ohms
  • Power Output (1% THD):
    • 130W - 8 Ohms
    • 200W - 4 Ohms
  • Noise: -62.5 dBu
• Pre Amplifier
  • Nominal Input Sensitivity: All controls @12:00 = -6.44 dBu (369mV)
  • Input Impedance: >10 meg Ohm
• Pre Amplifier EQ:
  • 3-band rotary type with proprietary TE filters
  • Low center = 80 Hz
  • Mid center = 400 Hz
  • High center = 4.2 kHz
• Pre Amplifier DI XLR Balanced Output:
  • PIN 1 = GND, PIN 2 = sig+, PIN 3 = sig-
  • Post EQ
  • 1 kOhm output impedance with GND lift switch
  • Noise floor = -104.3 dBu
  • Noise floor with sig (nom.) = -88 dBu
• Weight: 1.6 lbs. (0.73 kg)
• Dimensions (HxWxD): 1.35" x 6.75" x 4.10" (3.4 x 17.1 x 10.4cm)
