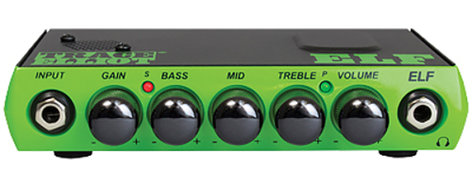

Trace Elliot ELF
Bass Amp


The Trace Elliot® ELF is a bass amplifier. Weighing just 1.6 pounds, this revolutionary amp is small enough to fit in your back pocket.
Learn More
Our Price: $299.99
List Price: $399.99
You save 25%!
Write the first review.
Trace Elliot ELF
In Stock

Related Products

The Trace Elliot® ELF is a bass amplifier. Weighing just 1.6 pounds, this revolutionary amp is small enough to fit in your back pocket. The ELF’s remarkable technology and size make it the most portable, gig-worthy bass amplifier ever made. It’s an ideal solution for any bassist who is concerned with size and weight, but isn't willing to compromise on tone or performance.

The ELF produces a solid, fan-cooled 200 continuous watts RMS at 4 ohms. The switch mode power supply has thermal as well as over-current protection, and the gain knob features a bicolor LED that turns red when the preamp compressor engages. The unique input gain has three regions of operation - uncompressed, variable multiband compression, and overdrive. In terms of sonic quality, the ELF has a clean signal path with simple controls, making it easy to achieve a professional bass tone. The 3-band rotary EQ has three proprietary Trace Elliot filters: low center (80 Hz), mid center (500 Hz) and high center (4.2 KHz). Studio-quality XLR outputs, with a ground lift switch, ensure the tone the player has on stage is the same tone in the PA. There’s also a headphone output to enable quiet practice.

The ELF comes with an embroidered nylon carrying case, an owner’s manual CD-ROM that includes the REAPER™ DAW and Peavey® ReValver® amp modeling software, and a Union Jack sticker that reminds of Trace Elliot’s U.K. roots.

Trace Elliot ELF Features:

  • Extremely portable 1.60 lb (0.73 kg)
  • 200W continuous into 4 ohms / 130W continuous into 8ohms
  • Wide range input gain control with signal level indicator
  • 3-band rotary equalizer that emulates the response of classic Trace Elliot multi-band graphic EQ filters
  • Ultra-high preamp input impedance ( >10meg ohms) for maximum sensitivity when using passive pickups
  • Post EQ balanced XLR DI output with ground lift for sending classic Trace Elliot tone to a mixing console or recording device
  • 1/4” (6.35 mm) headphone output for quiet practice

Trace Elliot ELF Specifications:

  • Mains Voltage:
    • 100-120 vac -  50/60Hz - T3.15AL/250V
    • 230 vac - 50/60Hz - T1.6AL/250V
  • Power Consumption:
    • Typical  =  30W
    • Maximum  =  240W
  • SMPS:
    • Thermal protection
    • Over-current protection
  • Power Amplifier
    • Protection:
      • Clip limiting
      • Thermal
      • Over-current / Short-circuit
      • DC output
    • Minimum Load: 4 Ohm
    • Power Output (1% THD):
      • 130W - 8 Ohm
      • 200W - 4 Ohm
    • Noise: -62.5 dBu
  • Pre Amplifier
    • Nominal Input Sensitivity: All controls @12:00 = -6.44dBu (369mV)
    • Input Impedance: >10 meg Ohm
    • EQ:
      • 3 - band rotary type with proprietary TE filters
      • Low center = 80 Hz
      • Mid center = 400 Hz
      • High center = 4.2 KHz
    • DI XLR Balanced Output:
      • PIN 1 = GND, PIN 2 = sig+, PIN 3 = sig-
      • Post EQ
      • 1 KOhm output impedance with GND lift switch
      • Noise floor = -104.3dBu
      • Noise floor with sig (nom.) =-88dBu
  • Weight: 1.6 lb (0.73 Kg)
  • Dimensions (HxWxD): 1.35 x 6.75 x 4.10” (3.4 x 17.1 x 10.4 cm)
