Philips Color Kinetics 116-000029-00 [RESTOCK ITEM]

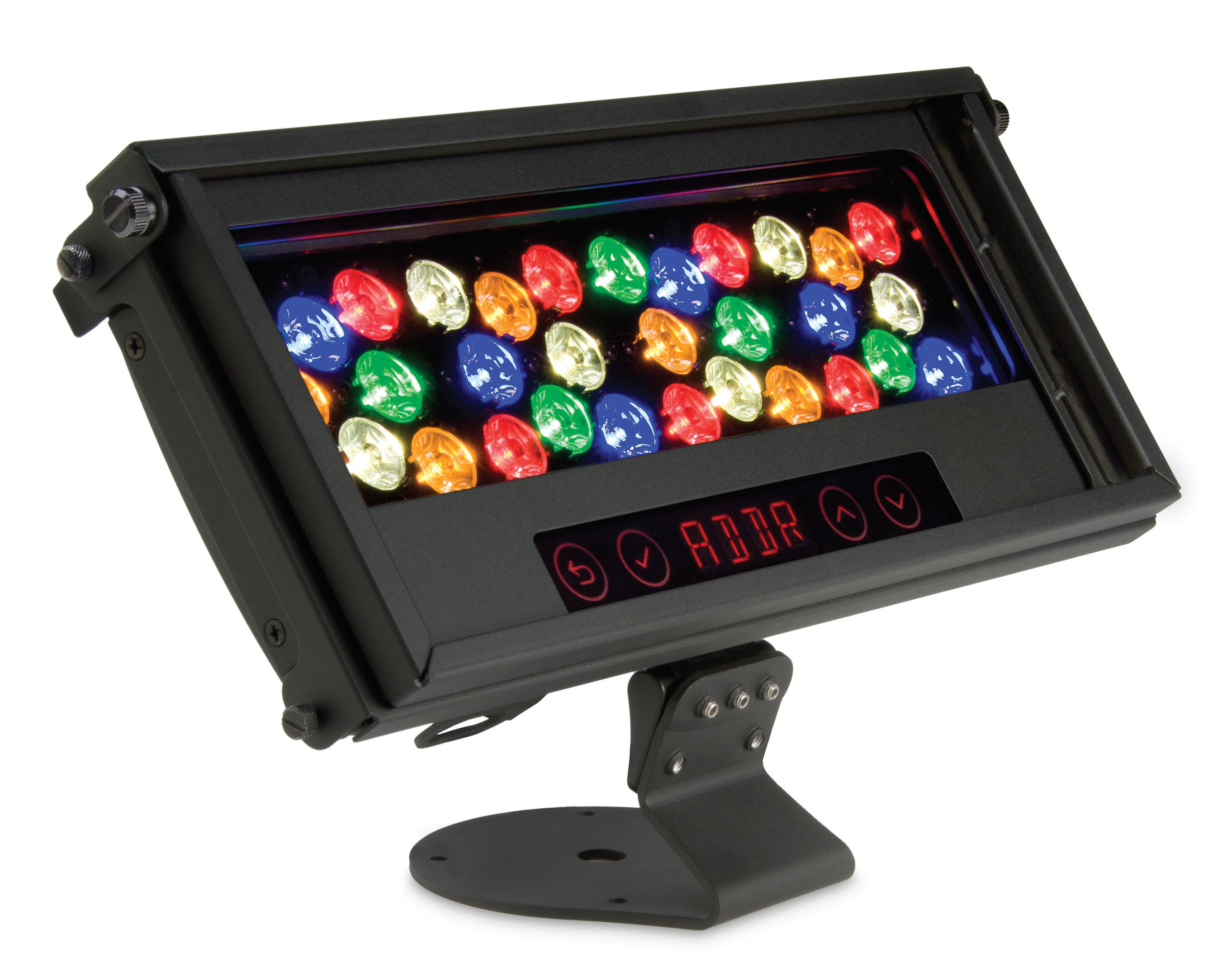

ColorBlastTRX RGBAW LED Wash/Flood/Spotlight Fixture

OUR PART #:  116-000029-00-RST-01

Phlips Color Kinetics' ColorBlast® TRX is a fully-featured RGBAW LED wash/flood/spotlight, offering enhanced color range, light output of up to 1577 lumens...
Learn More
Philips Color Kinetics 116-000029-00-RST-01 1
Philips Color Kinetics 116-000029-00-RST-01 2
Philips Color Kinetics 116-000029-00-RST-01 3
Philips Color Kinetics 116-000029-00-RST-01 4
Sale Price: $503.99
List Price: $779.00
You save 35%!
Write the first review.
Philips Color Kinetics 116-000029-00 [RESTOCK ITEM]
In Stock

Related Products

Phlips Color Kinetics' ColorBlast® TRX is a fully-featured RGBAW LED wash/flood/spotlight, offering enhanced color range, light output of up to 1577 lumens, and onboard addressing and configuration features.  The ColorBlast TRX is designed to withstand demanding stage, set, and touring environments.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Philip Color Kinetics 116-000029-00 Features:

  • Five-channel RGBAW in/out, three-channel RGB in/out, and three-channel RGB in mapped to five-channel RGBAW out modes.
  • Amber and neutral white LEDs seamlessly blend with red, green, and blue LEDs to produce a significantly expanded color palette, adding intense yellows, high-quality whites, and a range of subtle pastel colors to the millions of saturated colors achievable with standard RGB lighting fixtures.
  • DMX and fixed color modes. 16-bit resolution supports smooth dimming and precise color control. Adjustable dimming curves and LED transition speeds emulate the behavior of other Philips Color Kinetics fixtures and conventional theatrical fixtures with DMX dimming.
  • Touch-sensitive menus offer direct access to all on-board functions.Fixture self-test visually confirms proper fixture operation, while diagnostics display information such as serial number, operating temperature, and input voltage.
  • Pivoting bezel and included 23° soft-focus and 10° clear tempered glass spread lenses let you switch quickly between soft-edge wash lighting and extended beam projection.
  • An industrial-grade constant torque hinge for 110° fixture tilting and aiming.
  • A pre-assembled mounting base accommodates truss clamps and other mounting and positioning options. Built-in 6 ft. (1.8 m) power cables can be extended up to 175 ft (53.3 m) with standard color scroller or XLR patch cables. An integral safety bracket lets you easily attach a safety tether.
  • Top hats, half top hats, barndoors, egg crate louvers, and spread lenses easily mount to the included accessory holder.

Philip Color Kinetics 116-000029-00 Specifications:

  • Beam Angle: 10° or 23° depending upon the version purchased
  • Lumens*: 1577 or 1372, depending upon the version purchased
    *Lumen measurement complies with IES LM 79-08.
  • Input voltage: 24 VDC
  • Power Consumption: 50 W maximum at full output, steady state
  • Interface: DMX via PDS-750 TRX, PDS-750 TR, PDS-375 TR, PDS-150, or PDS-6024V.  Fixture firmware addressable 8- or 16-bit control, RGBAW or RBG modes.
  • Control System: Philips full range of controllers, including Light System Manager and iPlayer 3, or 3rd party controllers
  • Dimensions (HxWxD): 8" x 14" x 3" (203 x 356 x 76 mm)
  • Weight: 7.25 lbs (3.3 kg)
  • Housing: die-cast aluminum, powder-coated black finish
  • Lens: clear glass or frosted glass, depending upon the version purchased
  • Fixture connections: 6 ft. (1.8 mm) power/data cable with 4-pin XLR connector
  • Operating Temperature Range: -40° – 122° F (-40° – 50° C)
  • Startup Temperature Range: -4° – 122° F (-20° – 50° C)
  • Storage Temperature Range: -40° – 176° F (-40° – 80° C)
  • Humidity: 0 – 95%, non-condensing
  • Maximum Cable Length: 175 ft. (53.3 m), with extension to built-in 6 ft.(1.8 m) power cable
  • Cetification: UL / cUL, FCC Class A, CE
  • LED Class: Class 2 LED product
  • Environment: Dry / Damp Location, IP22
