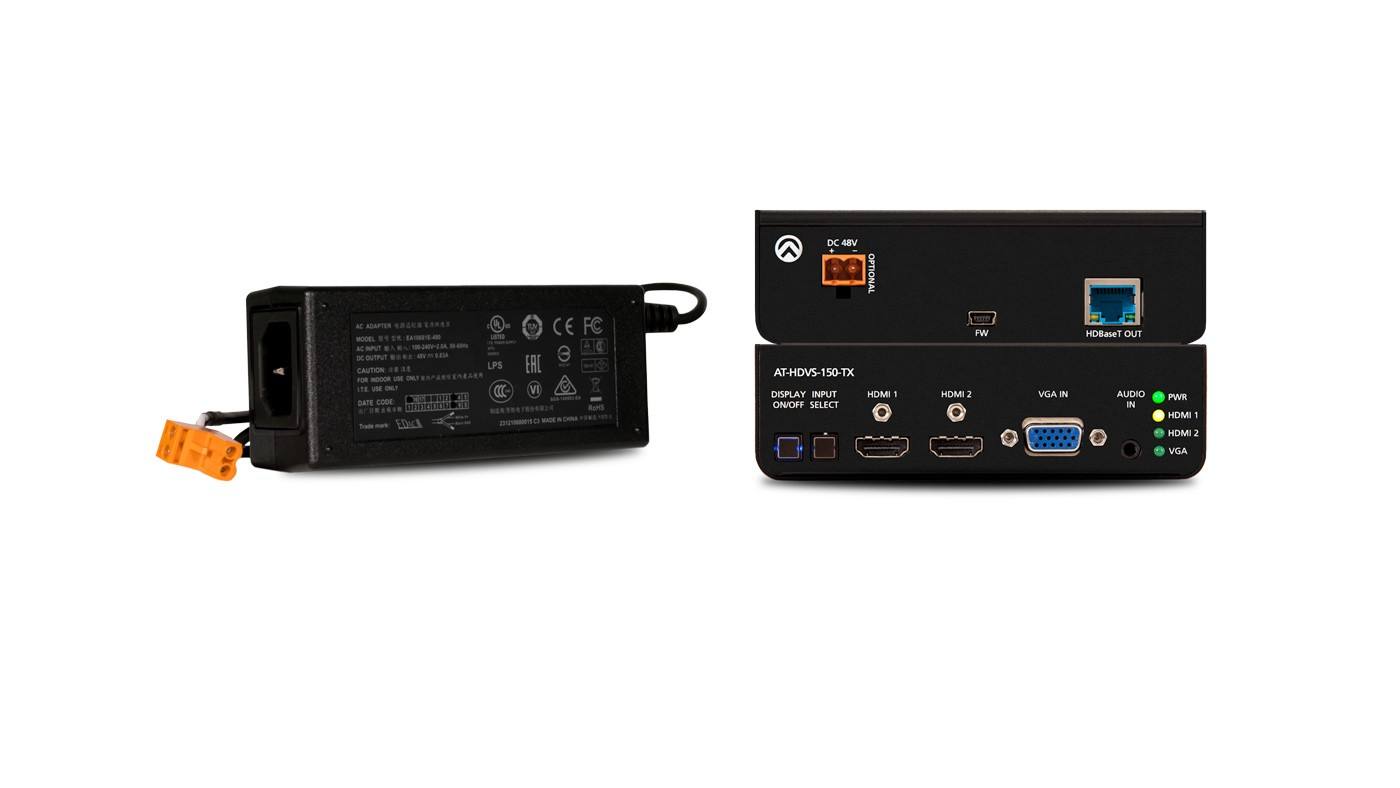

Atlona Technologies AT-HDVS-150-TX-PSK
Three-Input HDMI/VGA Sources Switcher

OUR PART #:  AT-HDVS-150-TX-PSK

The Atlona AT-HDVS-150-TX-PSK is a 3×1 switcher with two HDMI® inputs, a VGA input with audio, and an HDBaseT output.
Learn More

Call for price! Not available online.

Similar Products

The Atlona AT-HDVS-150-TX-PSK is a 3×1 switcher with two HDMI® inputs, a VGA input with audio, and an HDBaseT output. Video signals up to 1080p, plus embedded audio can be transmitted up to 230 feet (70 meters), and up to 130 feet (40 meters) for 4K/UHD video @ 60 Hz with 4:2:0 chroma subsampling. The AT-HDVS-150-TX-PSK is identical to the AT-HDVS-150-TX, with the addition of local powering capability and an external power supply. This makes it ideal for extending AV directly to a projector with an HDBaseT input. The AT-HDVS-150-TX-PSK can serve as the central component of a small, automated AV system with the convenience of automatic input selection.

The AT-HDVS-150-TX-PSK combines the benefits of auto-switching and the advantages of HDBaseT signal transmission. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

Surface mounting brackets are provided with the AT-HDVS-150-TX-PSK for easy under-table, furniture, or on-wall installation.

Applications:

  • Simple yet complete AV systems with HDBaseT-equipped projectors and flat-panel displays
  • Installations in which HDVS-150 Series transmitters are to be used with third-party HDBaseT devices

Atlona AT-HDVS-150-TX-PSK Includes:

  • User guide
  • Surface mounting brackets
  • External universal power supply

Atlona AT-HDVS-150-TX-PSK Features:

  • 3×1 HDBaseT switcher:
    • Features two HDMI inputs plus a VGA input with audio
    • Allows advanced HDMI display devices to be used with legacy VGA sources
  • Local AC powered version of AT-HDVS-150-TX:
    • Includes external power supply – ideal for point-to-point installations with an HDBaseT-equipped projector
    • Also can be powered via PoE – provides an additional powering option through a compatible Atlona HDBaseT-equipped device, or the optional AT-PS-POE power injector
  • Automatic input selection using hot plug detection:
    • Selects active input when sources are connected or if there is a change in source power status
    • Enables simplified, automatic system operation with no user intervention necessary
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling:
    • Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
    • Allows 4K/UHD transmission when used with a compatible HDBaseT-equipped display or HDBaseT receiver
  • Long distance HDBaseT extension:
    • Transmits AV up to 230 feet (70 meters) @ 1080p or 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • Automatic display control (when connected to the AT-HDVS-150-RX):
    • Automatically changes projector power state based on active or standby mode of the switcher. Control signals to display are transmitted via RS-232.
    • Front panel button enables manual display on/off control
    • Eliminates the need for a complex control system
  • Front panel input selection and on/off controls:
    • Overrides auto-switching when more than one active source is present
    • Simple manual operation allows presenter to maintain control of AV system
  • Field-updatable firmware:
    • Rear panel USB port provides an easy means for device updates
    • Ensures long-term system return on investment
  • Front panel power and input selection status LEDs:
    • LED indicators provide power and input selection status information
    • Provides easy setup and troubleshooting
  • Award-winning 10 year limited product warranty:
    • Ensures long-term product reliability and performance in commercial and residential systems
    • Specify, purchase, and install with confidence
