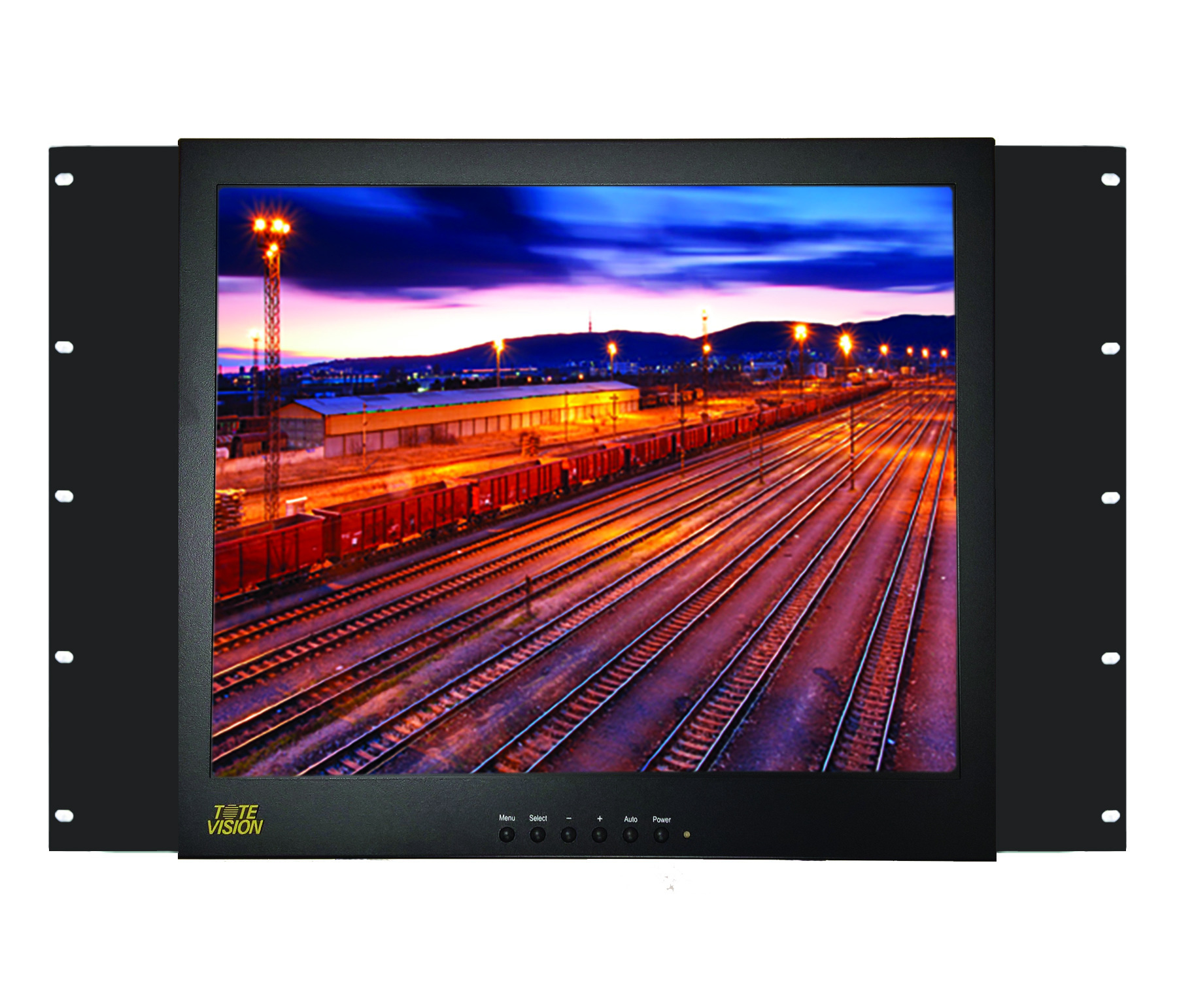

ToteVision LED1709HDR
17” Rack-Mounted Monitor

OUR PART #:  LED1709HDR

The ToteVision LED-1709HDR 17" LCD Rack-mount monitor features the latest technology with enhanced picture clarity and sharpness for both analog and digital video signals.
Learn More
Our Price: $471.80
List Price: $674.00
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ToteVision LED1709HDR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ToteVision LED-1709HDR 17" LCD Rack-mount monitor features the latest technology with enhanced picture clarity and sharpness for both analog and digital video signals.

ToteVision LED1709HDR Features:

  • HDMI – displays 1080i/p digital video
  • 3D Comb Filter for better picture quality
  • Analog video is very clear with no detail loss
  • High contrast ratio for better picture definition
  • 2x Composite BNC In/Out for looping
  • Durable metal case

ToteVision LED1709HDR Specifications:

  • Mount: Rack mount: 8RU
  • Display: 17? TFT LCD active matrix
  • Resolution: 1280 x 1024
  • Native Aspect Ratio: 5:4
  • Visible Screen Size: 13.4" x 10.7" (340 x 272mm)
  • Back Light: LED (30K)
  • HD Compatible: Displays 1080i/p
  • Anti Glare Coating: Yes
  • Brightness: 250cd/m² (Nit)
  • Contrast: 1000:1
  • Dot Pitch: .294(H)x0.294(V)mm 0.264(H) x 0.264(V)
  • Color Depth: 16.7 million
  • Response Time: 5ms (Rising / Falling)
  • Viewing Angle: 85°/85°/80°/80° (T/B/L/R)
  • DSP / 3D Comb Filter: Yes
  • Audio Power / Speakers: 1.5W x 2 speakers
  • HDMI: x1 Input
  • Composite: x2 BNC Inputs; x2 BNC Outputs
  • VGA: x1 15 pin D-sub Input
  • Audio: x1 RCA L/R Inputs; x1 3.5mm PC Input
  • Power: 2.1mm DC Input
  • Operating Temp: 32° ~ 104°F (0° ~ 40°C)
  • Humidity: 10% ~ 90%
  • Power Requirements: Regulated 12VDC, 4.1A, negative; 100~240VAC 50/60Hz Switching Power Supply
  • Power Consumption: 15 watts (Max)
  • Dimensions: 8RU x 2.9" Depth
  • Product Weight:
    • Net: 11.9lbs (5.4kg)
    • Gross: 17.5lbs (8 kg)
  • Case: Durable Metal
  • GSA: Yes
