ADJ 3D-VISION
3D LED Effect Panel

OUR PART #:  3D-VISION

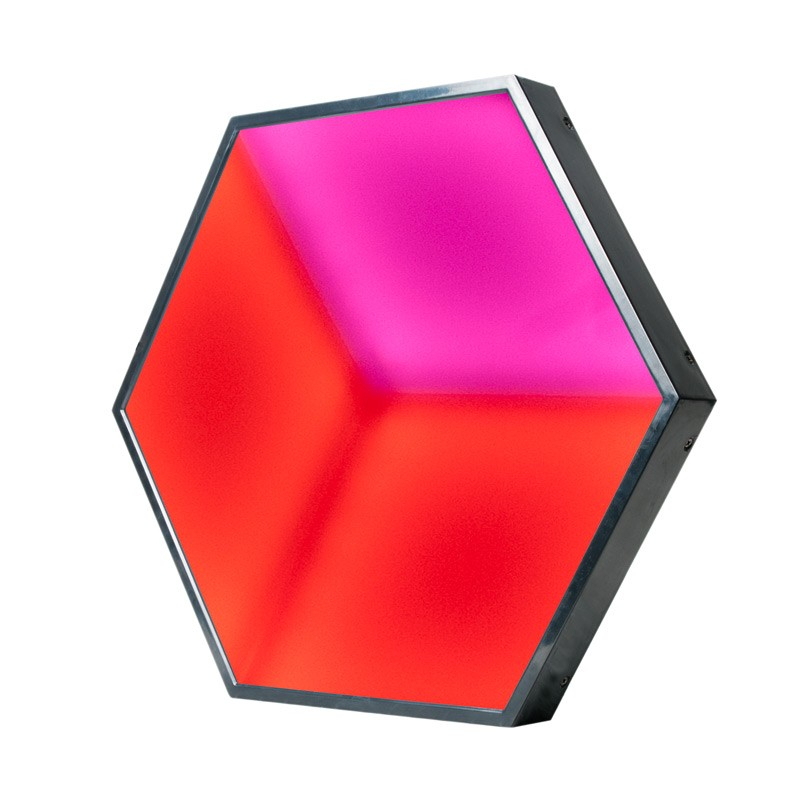

The ADJ 3D Vision panel is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples.
Learn More
Our Price: $169.99
List Price: $239.95
You save 29%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ADJ 3D-VISION
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ADJ 3D Vision panel is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers.

Hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. Controllable via DMX. Can also be used with EZ Kling interface for Artnet and KlingNet, LED Master control. Link multiple panels together via powerCon input/output with RJ45 ports for data linking. Panels lock together with an easy to use quick release panel lock. Rigging bars are also available for dead hang installation (m10 thread on the rear for a Pro Clamp so units can easily be fastened to truss or 2" pipe).

NOTE: Main power cable SOLD SEPERATELY

Accessories:

  • myDMX 2.1: DMX Control Software
  • ACRJ453PFM: RJ45 to 3-pin male XLR DMX
  • 3D Vision Encoder (3DV125): Sets DMX channels for 3D Vision panels
  • 3D Vision Quick Release Panel Lock (3DV175)
  • 3D Vision Rigging Bar (3DV149)
  • powerCon 3-foot power link cable (PLC3)
  • RJ45-3 (NET403): 3-foot RJ45 to RJ45 Cable
  • RJ45-6 (NET456): 6-foot RJ45 to RJ45 Cable
  • RJ45-10 (NET510): 10-foot RJ45 to RJ45 Cable
  • Pro Clamp

ADJ 3D Vision Includes:

  • Data cable
  • Linking cable
  • Safety cable

ADJ 3D Vision Specifications:

  • 3D LED Effect panel. Use in multiples to create adynamic
  • Modular connecting system allows you to create different configurations
  • Quick lock rigging system allows you to assemble and disassemble quickly
  • 10mm thread on rear for standard Pro Clamp, truss mount
  • Control Protocol: DMX512
  • Data Connections: Ethercon, Input, and Output
  • Product Size: 15.8” x 15.8” x 2.7” (400 x 400 x 68mm)
  • LED Quantity, per unit: 72 pcs.
  • LED Type: 5050 SMD, 3 in 1
  • Power Connections: Powercon, Input, and Output
  • Max Power Consumption: 13W
  • Input Voltage: 100-265VAC
  • Net Weight: 6 lbs. (2.74kg)
  • Face Material: Frosted Whtie Acrylic
  • Viewing Angle: 180°
  • Working Temperature: -4° to 140° F (-20° to +60° C)
  • Working Lifespan: =50,000 Hours
