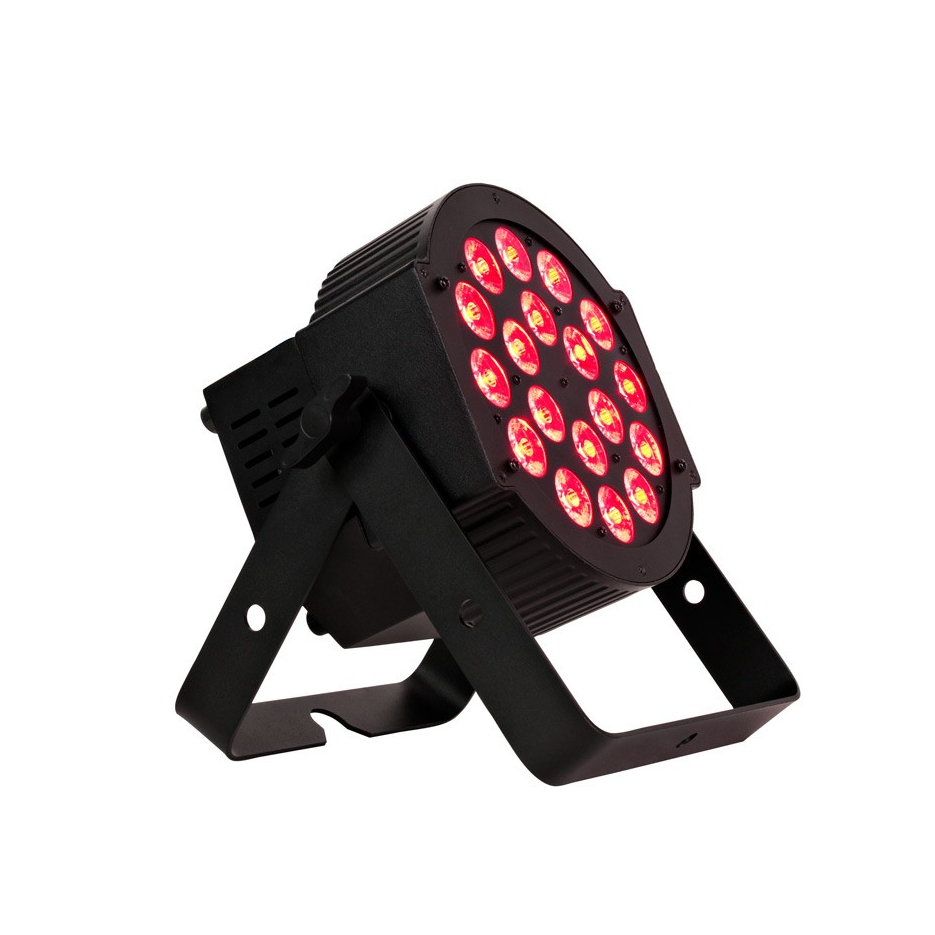

ADJ 18P Hex
6-in-1 Hex PAR with 18x12W LEDs


An all metal, powerful 216W LED PAR-type fixture, the ADJ 18P Hex features 18x 12-Watt...
Learn More
Our Price: $399.99
List Price: $559.95
You save 29%!
Write the first review.
ADJ 18P Hex
In Stock

Related Products

An all metal, powerful 216W LED PAR-type fixture, the ADJ 18P Hex features 18x 12-Watt, 6-IN-1 HEX LEDs, and has a 30° beam angle, as well as 63 onboard color macros that utilize its red, green, blue, amber, white, and UV LEDs to produce wide washes with smooth color mixing. Not only is this LED PAR terrific for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it's great for uplighting large venues. Its professional highlights include: 4 DMX modes (6, 7, 8, and 12), 5 operational modes, 5 dimming curves, flicker-free operation, and a 4-Button DMX menu with digital display. You can Daisy-chain up to 10 units (110V) or 12 units (240V) together via the fixture's onboard powerCON® In/Out power connectors. It's compatible with the Dotz Par RF easy-to-use wireless RF remote (sold separately). Alternatively, it can be operated via a DMX controller or the unit's own onboard programs.  It includes a metal gel frame in which a beam diffuser (sold separately) can be used for softening the beam.

ADJ 18P Hex Includes:

  • 18P Hex unit
  • powerCON Cable (1M)
  • Gel Frame
  • Owner’s Manual

ADJ 18P Hex Features:

  • 18x 12-Watt Hex LEDs
  • 30° Beam angle
  • (63) Built-in Color Macros
  • powerCON® in and out connections
  • Heavy duty metal construction with Gel Frame included

ADJ 18P Hex Specifications:

  • Optical:
    • Light Source: 18x 12-Watt Hex (RGBAW + UV) LEDs
    • LED Life Expectancy: 50,000 Hrs
    • Beam Angle: 30°
  • Technical Features:
    • (63) Built-In Color Macros
    • (5) Operational Modes:
      • Manual Color
      • Color Fade
      • Auto Program
      • Sound Active
      • DMX
    • 4-button Digital Display for easy navigation
    • 0 – 100% Electronic Dimming
    • Flicker-Free
    • Gel Frame Included
    • Includes a scissor yoke to be hung, or set on the ground
  • Connections:
    • Power Input: powerCON IN
    • Power Pass through:  powerCON out (Daisy chain up to 10 units @120V, 12 units @ 230V)
    • Control: 3-pin DMX
  • Control:
    • (4) DMX Channel Modes: 6, 7, 8, and 12
    • Compatible with Dotz Par RF remote control (sold separately)
    • Onboard control
  • Electrical:
    • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Physical:
    • Dimensions (LxWxH): 12” x 6.75” x 13.5” (300 x 170 x 340mm)
    • Weight: 12 lbs (5.4 kg)
    • Metal Black Housing
  • Certifications:
    • ETL
    • IP 30: Dry area, No liquids
