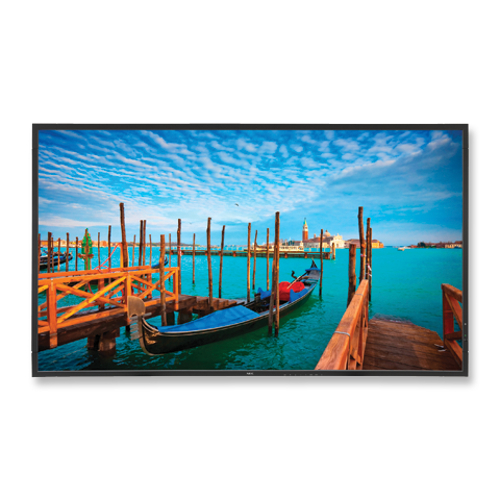

NEC Visual Systems V552-AVT
55" LED LCD Public Display Monitor with ATSC Tuner


NEC’s 55” V552-AVT commercial-grade LCD display utilizes LED backlighting to reduce the product’s depth and power consumption when compared to its predecessor.
Learn More
Our Price: $2,123.55
List Price: $2,584.00
You save 18%!
Write the first review.
NEC Visual Systems V552-AVT
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

NEC’s 55” V552-AVT commercial-grade LCD display utilizes LED backlighting to reduce the product’s depth and power consumption when compared to its predecessor. It gives digital signage users the biggest bang for their buck with AV inputs and a built-in ATSC digital tuner (SB-03TM) at a cost-conscious price. The V552-AVT also features built-in 10W speakers and an Open Pluggable Specification (OPS)-compliant expansion slot. This future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the accessory, additional cabling is not required, thereby simplifying installations. The V552-AVT’s full high-definition panel is capable of displaying brilliant imagery and capturing the audience’s attention, making it ideal for use in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and corporate boardrooms.

NEC Visual Systems V552-AVT Includes:

  • Power cord
  • Digital Tuner (SB-03TM)
  • 1.8m DVI-D cable
  • Wireless remote control
  • Batteries
  • Cable cover
  • CD-ROM (user manual)
  • Clamp
  • Screws

NEC Visual Systems V552-AVT Features:

  • Built-in ATSC digital tuner allows for high-definition broadcast capabilities
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry’s first standardization option slot that simplifies digital signage installations
  • Full 1080p high-definition resolution provides stunning detail
  • Commercial-grade LCD panel and components
  • Expanded connectivity with digital loop-through
  • Built-in, low-profile 10W speakers enhance the experience with superior sound
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
  • Advanced thermal capabilities
  • Advanced cooling system
  • TileMatrix (10x10)
  • TileComp
  • Separate group/Monitor ID function
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Carbon footprint meter
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (w/ real-time clock)
  • Screen saver function
  • POP
  • Side-by-Side
  • Kensington lock
  • Handles
  • Touch- and protective screen-ready
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in speakers
  • OPS-Compliant slot

NEC Visual Systems V552-AVT Specifications:

  • Display:
    • Viewable Image Size: 55"
    • Native Resolution: 1920 x 1080
    • Pixel Pitch: 0.63mm
    • Backlight Type: LED Edge-lit
    • Pixels Per Inch: 47@ native resolution
    • Brightness (typical): 320cd/m2
    • Brightness (maximum): 450cd/m2
    • Contrast Ratio (typical): 4000:1
    • Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
    • Response Time(Gray to Gray): 8ms
    • Refresh Rate: 60Hz
    • Aspect Ratio: 16:9
    • Active Screen Area: 47.6" x 26.8" (1209.6 x 680.4mm)
    • Orientation: Landscape/Portrait
    • Displayable Colors: More than 16.7 million
  • Synchronization Range:
    • Horizontal (Analog/Digital): 31.5-91.1 kHz
    • Vertical: 50-85 Hz
  • Input Signal:
    • Video: Analog RGB 0.7 Vp-p/75 Ohms
    • Sync:
      • Separate sync: TTL Level (Positive/Negative)
      • Composite sync: TTL Level (Positive/Negative)
      • Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
  • Connectivity:
    • PC Signal Compatibility: Yes
    • Macintosh Compatibility: Yes
    • Input Terminals:
      • Digital: DisplayPort, HDMI, DVI-D
      • Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD, S-Video or Video), BNC Composite
      • Audio: Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
      • External Control: RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
    • Output Terminals:
      • Analog: N/A
      • Audio: Stereo Mini-Jack, External Speaker Jack (2)
      • Digital: DVI-D
      • External Control: RS-232C
  • Power Consumption (typical):
    • On: 100W
    • ECO Mode Standby: <2W
  • Physical Specifications:
    • Bezel Width (Left/Right, Top/Bottom): 0.7"/0.7", 0.7"/0.7" (18.3mm/18.3mm, 18.3mm/18.3mm)
    • Dimensions (WxHxD):
      • Net (with stand): 49.2" x 29.8" x 13.8" (1249.7 x 756.0 x 351mm)
      • Net (without stand): 49.2" x 28.4" x 2.5" (1249.7 x 720.5 x 63mm)
      • Shipping: 56.3" x 36.2" x 9.8" (1430 x 920 x 250mm)
    • Weight:
      • Net (with stand): 62.2 lbs. (28.2 kg)
      • Net (without stand): 58 lbs. (26.3 kg)
      • Shipping: 73.4 lbs. (33.3 kg)
  • VESA Hole Configuration Specifications: 300 x 300mm (4-hole)
  • Environmental Conditions:
    • Operating Temperature: 41°-104°F (5°-40°C)
    • Operating Humidity: 20-80%
    • Operating Altitude: 9843 ft. (3000m)
    • Storage Temperature: -4°-140°F (-20°-60°C)
    • Storage Humidity: 10-90%
    • Storage Altitude: 40,000 ft. (12,192m)
  • Limited Warranty (parts & labor, including backlight): 3 years
