Product Overview

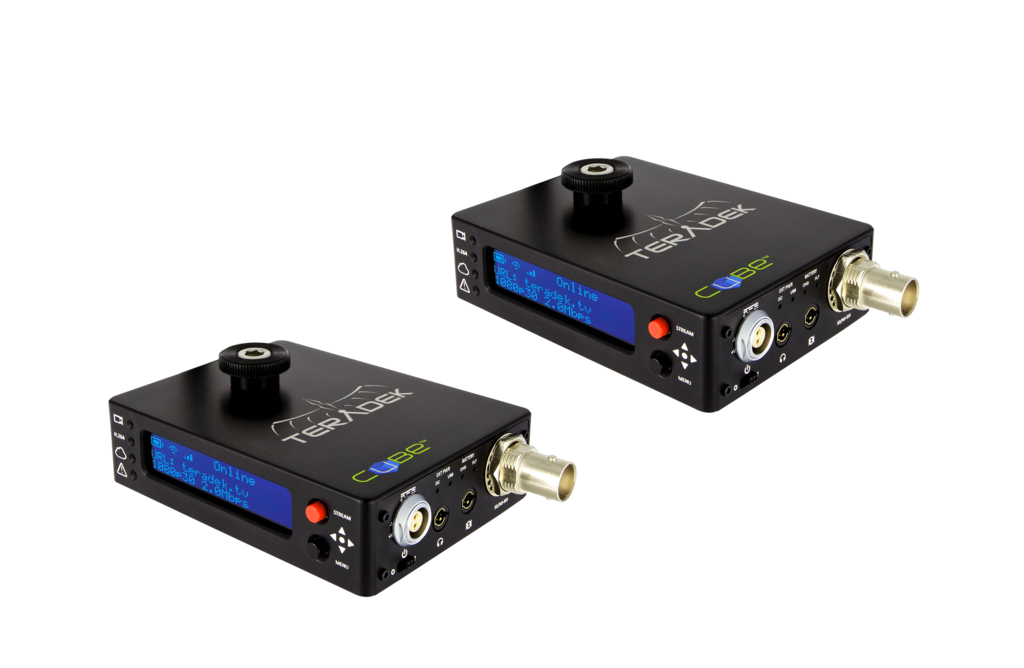

The Teradek TER-CUBE-105-405 is a pair of Cube encoders and decoders called a Cubelet. Cubelet's are capable of very low latency (~3-4 frames) and provide an easy to use point-to-point streaming solution. Both units are paired and will automatically connect with one another over an ad-hoc network.
The new Cube 105 includes all of the same great features of the original Cube such as a compact aluminum chassis, comprehensive transport protocol support like RTP/RTSP/RTMP/MPEG-TS, and an HD-SDI input.
Cube's new OLED enables users to rapidly change and review the settings of their unit in addition to providing real-time feedback for filenames, recording status, and wireless connectivity. No longer are computers or iPads needed for configuration; every feature is a simple click away.
Cube's built-in Li-ION battery will give users up to 2 hours of runtime, which allows for seamless battery swapping or quick broadcasts. The battery can also be charged from an AC adapter or even a suitable external battery such as an Anton Bauer.
Teradek TER-CUBE-105-405 Includes:
- Hard Case
- 1-Year Warranty
- Encoder:
- 1 x SDI BNC to BNC Cable, 10 inch
- 1 x 2-pin Connector to AC Adapter 6ft Cable with International Plugs
- 1 x Ethernet Cable
- 1 x USB Stick with TeraCentral Desktop Software
- 1 x Hot Shoe Adapter with Thumbscrew
- 1 x 1-Year Warranty
- Decoder:
- 1 x 2-pin Connector to AC Adapter 6ft Cable with International Plugs
- 1 x Ethernet Cable
- 1 x USB Stick with TeraCentral Desktop Software
- 1 x Hot Shoe Adapter with Thumbscrew
- 1 x 1-Year Warranty
- 1 x HDMI Cable Micro to Full-Size 18inch (Male Type C to Male Type A)
Teradek TER-CUBE-105-405 Features:
- MIMO access point
- Audio output
- Micro SD
- Micro USB
- CDN integration
Teradek TER-CUBE-105-405 Specifications:
- Cube 105:
- Video Inputs: HD-SDI, SD-SDI: BNC
- Bonding: Requires Bond Module for Encoders
- Supported Input Resolutions:
- 1080p 23.98/24/25/29.97/30
- 1080i 50/59.94/60
- 1080PsF 23/24/25/29/30
- 720p 50/59.94/60
- 576i
- 480i
- Video Processing:
- Video Compression: H.264, Baseline, Main and High Profile
- Supported Video Bitrate: 250 Kbps to 10 Mbps
- Test Pattern Generator Support: None
- Video Format Conversion Support: Built in Video Scaler and Deinterlacer
- Color Correction: None
- Inputs:
- Audio Input:
- Embedded Audio Input
- Analog Line or Mic in, adjustable gain
- Outputs:
- Audio: Headphone output, adjustable volume
- Physical:
- Dimensions (WxDxH): 2.5" x 3.5" x .9" [63.5 x 88.9 x 22.86mm]
- Weight: 8oz (226.8g)
- Construction: Milled Aluminum
- Interfaces:
- Configuration Interfaces:
- OLED Display with joystick Navigation buttons
- Feature-rich WebUI for configuration and control
- Switches: On/Off and Reset Switch
- Recording Storage: SD Card: Micro
- USB Interface Functionality: Powered USB 2.0 host port
- Network:
- Ethernet: 10/100BASE-T
- Wireless: None
- USB: USB 3G/4G Modem support
- Rf Channel Selection: None
- Power:
- Power Input: 2 Pin Connector Power input
- Battery: No Battery Included
- Nominal Power Consumption: 3W (while Charging: up to 10W)
- Auxilary Power Input: 6-28V DC
- Cube 405:
- Video Outputs: HDMI: Full Size
- Bonding: Requires Bond Module for Encoders
- Supported Input Resolutions:
- 1080p 23.98/24/25/29.97/30
- 1080i 50/59.94/60
- 1080PsF 23/24/25/29/30
- 720p 50/59.94/60
- 576p
- 576i
- 480p
- 480i
- Video Processing:
- Video Compression: H.264, Baseline, Main and High Profile
- Supported Video Bitrate: 250 Kbps to 10 Mbps
- Test Pattern Generator Support: None
- Video Format Conversion Support: Built in Video Scaler and Deinterlacer
- Color Correction: None
- Protocol Support:
- Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
- Supported Video Transport Protocols:
- RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams
- MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP
- Teradek Streaming : Unicast/UDP, Multicast/UDP
- Remote Control: Teradek Core
- Audio Processing:
- Audio Compression: AAC-LC, MPEG Layer 2
- Inputs:
- Audio Input:
- Embedded Audio Input
- Analog Line or Mic in, adjustable gain
- Outputs:
- Audio: Headphone output, adjustable volume
- Physical:
- Dimensions (WxDxH): 2.5" x 3.5" x .9" [63.5 x 88.9 x 22.86mm]
- Weight: 8oz (226.8g)
- Construction: Milled Aluminum
- Interfaces:
- Configuration Interfaces:
- OLED Display with joystick Navigation buttons
- Feature-rich WebUI for configuration and control
- Switches: On/Off and Reset Switch
- Recording Storage: SD Card: Micro
- USB Interface Functionality: Powered USB 2.0 host port
- Network:
- Ethernet: 10/100BASE-T
- Wireless: None
- USB: USB 3G/4G Modem support
- Rf Channel Selection: None
- Encryption: None
- Power:
- Power Input: 2 Pin Connector Power input
- Battery: No Battery Included
- Nominal Power Consumption: 3W (while Charging: up to 10W)
- Auxilary Power Input: 6-28V DC
