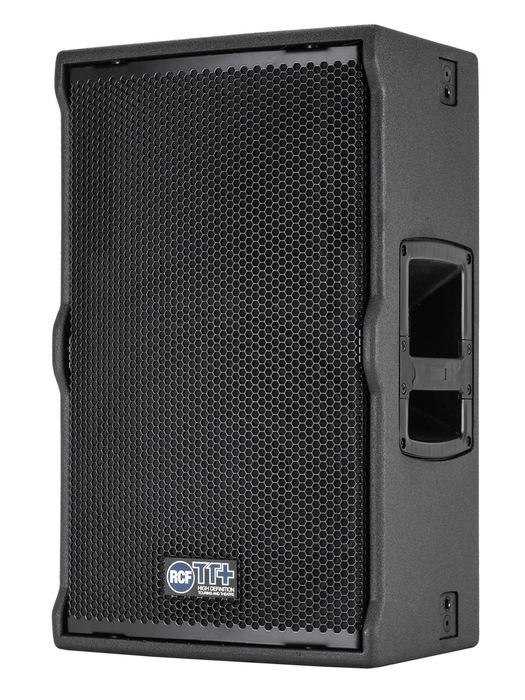

RCF TT22-A II
Active High Output Two-Way Speaker, 1100 W

OUR PART #:  TT22-A-MK2

The RCF TT22-A II is a 2-way active system featuring a 12โ€ neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4โ€ exit...
Learn More
Our Price: $2,549.00
List Price: $3,879.00
You save 34%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RCF TT22-A II
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The RCF TT22-A II is a 2-way active system featuring a 12โ€ neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4โ€ exit, 75 mm voice coil neo compression driver. An extremely careful acoustic design plus the highest quality transducers and a powerful amplifier make the TT22-A II speaker system the perfect solution from live sound situations to playback and monitoring. The amplifier section features 1100 watt power โ€“ 800 watt low frequency, 300 watt high frequency. The cabinet is made of marine Baltic birch plywood and features high-resistance polyurea coating. The cabinets has 2 side handles, 6 x fly-track rigging points, quick lock pin receptacles and a steel pole mount.

RCF TT22-A II Applications:

  • Theatrical sound reinforcement
  • Portable and installed audio-visual systems
  • Concert halls, night clubs and houses of worship
  • Stage monitoring side fill
  • Front and balcony fill

RCF TT22-A II Features:

  • 1100 W Class D Amplifier
  • 90 x 60 constant directivity coverage angle
  • 12" neo woofer, 3.5" mm voice coil
  • 1.5" neo c. driver, 3.0" mm voice coil
  • DSP Processing
  • Onboard RDNet Control
  • Multifunctional cabinet
  • Very high output

RCF TT22-A II Specifications:

  • Acoustical:
    • Frequency Response -3 dB: 50 Hz รท 20000 Hz
    • Max SPL: 131 dB
    • Horizontal coverage angle: 90ยฐ
    • Vertical coverage angle: 60ยฐ
    • Compression Driver: 1.5" neo, 3.0" voice coil
    • Woofer: 12" neo, 3.5" voice coil
  • Input/Output Section
    • Input signal: Bal/unbal
    • Input connectors: XLR, RDNet onboard
    • Output connectors: XLR, RDNet onboard
    • Input sensitivity: -2 dBu / + 4 dBu
  • Processor Section
    • Crossover frequencies: 800 Hz
    • Protections: Thermal, HF
    • Limiter: Fast limiter, dynamic
    • Controls: proces., 8 sel. presets
  • Amplifier:
    • Total power: 1100 W RMS
      • High frequencies: 300 W RMS
      • Low frequencies: 800 W RMS
    • Cooling: Convection
    • Connections: Powercon in/out
  • Cabinet
    • Cabinet Material: Baltic birch
    • Hardware: 6 x fly tracks, quick lock, pole mount
    • Handles: 2 on side
    • Pole Mount/Cap: Yes
    • Colour: Black
  • Physical:
    • Height: 600 / 23.62 mm/inch
    • Width: 365 / 14.37 mm/inch
    • Depth: 379 / 14.92 mm/inch
    • Net Weight: 23.3 / 51.36 kg/lbs
Protective Cover for TT22-A MK2
RCF COVER TT22 MK2 Protective Cover for TT22-A MK2
RCF's COVER TT22 MK2 is a protective nylon cover for the RCF TT22-A MK2 loudspeaker. This cover features holes that can be opened on the front grille, handles, and rear panel for cable connections. These holes allow the speaker to be used ...
