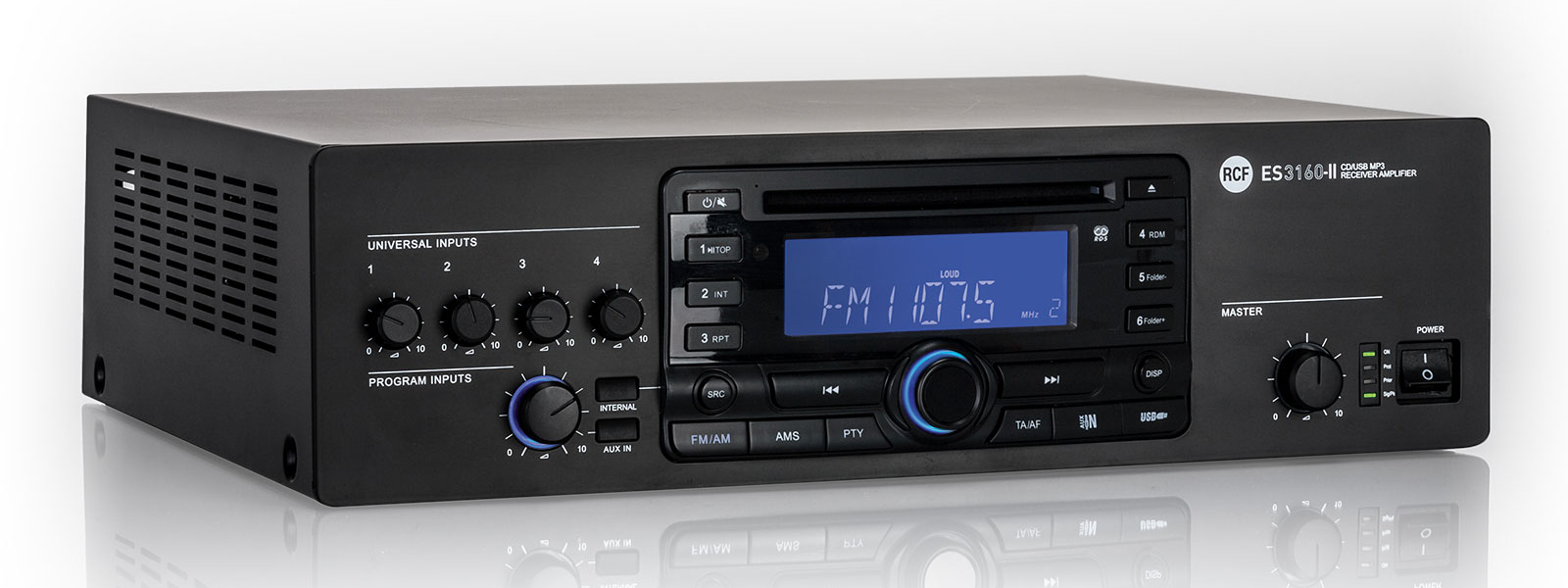

RCF ES-3160-MK2 Digital Receiver Mixer Amplifier for CD, USB, MP3 Player, FM Tuner and Bluetooth

RCF ES 3160-II is a mixer-amplifier with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket), CD/USB/Bluetooth – MP3 player, tuner and an aux input for an additional external music source. The amplifier nominal power is 160W, available on either a low impedance output (min. 4 Ω) or 100 – 70V constant voltage output (for loudspeakers having 100 – 70V transformers).

Applications:

• Restaurants
• Boutique
• Pub
• Beauty Centre
• Market
• Medical centres

Features:

• CD-USB/MP3 Player / FM tuner / Mixer Amplifier,Bluetooth connection with external device
• IR Remote control for CD - USB/MP3 player & tuner functions
• Full digital technology amplifier 160W RMS, 100V-70Vand 4Ω outputs
• 4 universal inputs with phantom facility, Presence Control and per-channel High-Pass filters
• RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
• Screw terminal connections, additional XLR and RJ45 input connections available
• Configurable Priority settings, VOX facility on input 1
• Selectable aux input for music source with volume and tone controls
• USB port on front panel allows reproduction of MP3 files from a memory stick
• Music On Hold and PRE outputs

Specifications:

• Amplifier:
  • Power output: 160W rms
  • Frequency Response: 50Hz - 13.5kHz
  • Distortion: < 0.3%
  • Signal/noise rate: (MIC) > 60dB; (AUX) > 80dB; (MAIN) > 85dB
  • Crosstalk: (MIC) > 60dB; (AUX) > 80dB; (MAIN) > 85dB
  • Phantom Power: 32Vdc
• CD/MP3:
  • Frequency Response: 20Hz - 20kHz
  • Signal/noise ratio: > 80dB
  • Total harmonic distortion: > 0.2%
  • Stereo separation: > 55dB
• Physical:
  • Dimensions (H x W x D): 127 x 444 x 345mm (5 x 17.48 x 13.58in)
  • Net Weight: 8.0kg (17.63lbs)
