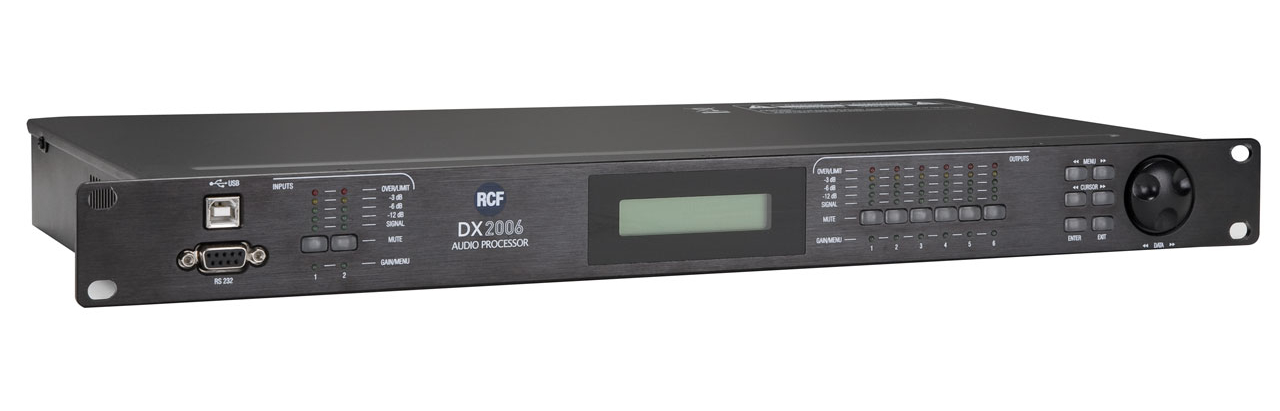

RCF DX 2006
2 Input 6 Output Digital Processor

OUR PART #:  DX-2006

The RCF DX 2006 is a 2 input - 6 output loudspeaker management device with 40 bit floating point DSP and 96 kHz sampling rate...
Learn More
Our Price: $1,299.00
List Price: $1,699.00
You save 24%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


RCF DX 2006
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The RCF DX 2006 is a 2 input - 6 output loudspeaker management device with 40 bit floating point DSP and 96 kHz sampling rate, suitable for the optimization of passive loudspeaker systems.

The DX 2006 offers flexible routing, signal processing and equalization and can be used also for multiple ways and multi-amplified systems managing. LCD, controls and LED indicators are available on the frontal panel and it is also possible to set up and control the processor through a PC. Various crossover modes are available and 30 programs/Settings can be stored.

The DX 2006 is shipped with a special PC Graphic User Interface (GUI) application - Xlink that gives the user an option to control the digital processor. The GUI application makes it much easier to control and monitor the device, allowing the user to get the whole picture on screen. Programs can be recalled and stored from/to PC hard drive, thus expanding the storage to become virtually limitless.

RCF DX 2006 Features:

  • 2 inputs that can be mixed to 6 outputs
  • 40-bit floating point DSP
  • 96 kHz sampling rate
  • 24-bit A/D D/A converters
  • 1 Hz frequency resolution (EQ / filters)
  • 8 equalizers for each input and output
  • Multiple crossover types; limiters
  • Level, polarity and delay settings
  • Firmware upgrade via PC
  • Individual channel buttons (for editing) with linking capability
  • 2-Line x 16 character backlit LCD display
  • 5-segment LED arrays indicating the signal levels of every input and output
  • Storage of up to 30 presets
  • Security Lock (with password)
  • USB and RS232 ports for PC configuration

RCF DX 2006 Specifications:

  • Input and Output Section
    • Input Impedance: >10 kOhm
    • Output Impedance: 50 Ohm
    • Maximum Level: +20 dBu
    • Type: Electronically balanced
  • Audio Performance
    • Frequency Response: +/- 0.1 dB (20 Hz to 20 kHz)
    • Dynamic Range: 115 dB typ (unweighted)
    • CMMR: >60 dB ( 50 Hz to 10 kHz)
    • Crosstalk: <-100 dB
    • Distortion: 0.002 % (1 kHz @ 18 dBu)
  • Digital Audio Performance
    • Resolution: 40 bit
    • Sampling Rate: 96 kHz
    • A/D - D/A Converters: 24 bit
    • Propagation Delay: 1.5 ms
  • Front Panel Controls
    • Display: 2x16 Character backlit LCD
    • Buttons: Mute/Edit Controls, Menu Controls
    • "DATA" control: Embedded Thumb Wheel
    • Level Meters: 5 LEDs x channel
  • Limiters
    • Threshold: –20 ÷ +20 dBu
    • Attack Time: 0.3 ÷ 100 ms
    • Release Time: 2-4-8-16-32x the attack time
  • Equalisation (8 per Input/Output)
    • Type: Parametric, Lo-shelf, Hi-shelf, AP-1, AP-2
    • Gain: –15 ÷ +15 dB in 0.25 dB steps
    • Bandwidth: 0.02 to 3.61 octaves
  • Crossover Filters (2 per output)
    • Filter Type: Butterworth, Linkwitz Riley, Bessel
    • Slopes: 6 / 12 to 48 dB / oct
  • Physical
    • Dimensions (H x W x D): 44 x 483 x 229 mm (1.73 x 17 x 9 in)
    • Net Weight: 4.5 kg (10 lbs)
