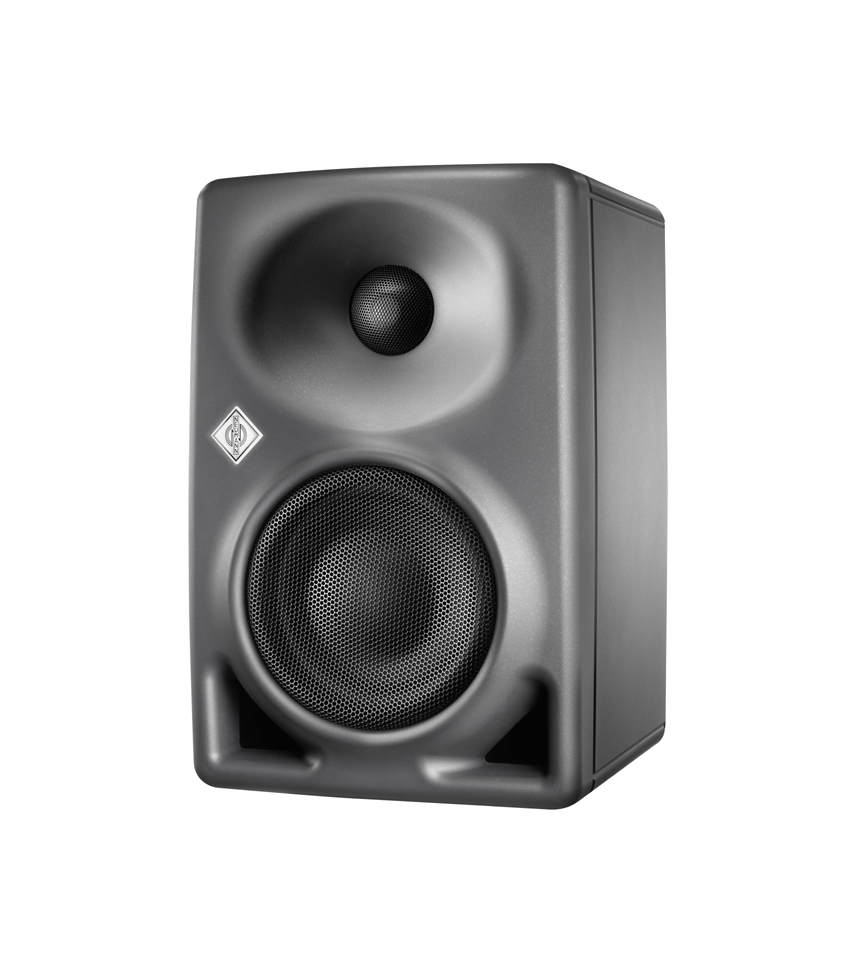

Neumann KH 80
Two-way (4" + 1") Active DSP Studio Monitor

OUR PART #:  KH80

The Neumann KH 80 DSP two-way active bi-amplified monitor comes equipped with a DSP engine giving network control...
Learn More
Our Price: $499.00
List Price: $619.00
You save 19%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann KH 80
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Neumann KH 80 DSP two-way active bi-amplified monitor comes equipped with a DSP engine giving network control, a Mathematically Modeled Dispersion™ Waveguide (MMD™), an analog input, and wide array of mounting hardware. This enables the loudspeaker to be used in diverse acoustical conditions, with any source equipment, and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It's designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can also be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. Plus, it's well suited for use in domestic environments.

Neumann KH 80 DSP Includes:

  • 1x KH 80 DSP A
  • 1x Mains cable (European, UK, US, or CCC and KC)
  • 4x Self-adhesive feet
  • 1x Getting Started Quickly guide
  • 1x Safety booklet

Neumann KH 80 DSP Features:

  • New in-house simulated drivers with metal grilles
  • Powerful alloy fabric tweeter dome
  • Low-distortion high-frequency reproduction
  • Long-throw composite sandwich cone bass driver with Extremely Linear ForceFactor™ (ELFF™)
  • Two-color + dimmable Neumann logo
  • Compact polycarbonate composite cabinet
  • Large front panel ports
  • One-piece front panel with no discontinuities
  • Powerful highly efficient amplifiers with large headroom
  • Independent thermo limiters for woofer and tweeter to protect the voicecoils and power amplifiers. Woofer soft clip and excursion limiters
  • Production consistency due to individual alignment in final test
  • 4-position low-mid acoustical control
  • 8 x Precision Alignment acoustical controls accessible via control network
  • Lipsync delay (0 … 70 ms)
  • Time-of-flight delay (0 … 70 ms)
  • Linear phase crossover, with bypass
  • Wide range input gain and output level controls
  • Control network used standard Ethernet components
  • Completely symmetrical internal signal chain - Minimizes noises caused byexternal electromagnetic interference
  • Double insulated electrical design
  • Universal switched-mode power supply (100 … 240 V)
  • Extensive mounting hardware options gives more flexibility in mountingcabinets in more diverse locations and backwards compatibility with previousmodels

Neumann KH 80 DSP Specifications:

  • Acoustics:
    • -6 dB free field frequency response: 53 Hz … 22 kHz, ± 6 dB
    • -3 dB free field frequency response: 57 Hz … 21 kHz, ± 3 dB
    • Pass band free field frequency response: 59 Hz … 20 kHz, ± 2 dB
    • Self-generated noise (with input gain set to 100 dB for 0 dBu): < 20 dB(A) at 10 cm
    • Sine wave output with a THD < 0.5 % at 1m: 90 dB SPL (>200 Hz)
    • Max. SPL in full space / calc. in half space at 3% THD at 1m: 102.8 / 108.8 dB SPL (averaged between 100 Hz and 6 kHz)
    • Bass capability: Max. SPL in half space at 3% THD at 1m: 92.1 dB SPL (averaged between 50 Hz and 100 Hz)
  • Electronics:
    • Bass amplifier output power (THD+N, 0.1%, 10%): 90 W, 120 W
    • Treble amplifier output power (THD+N, 0.1%, 10%): 50 W, 70 W
    • Controller design: Digital, active
    • Crossover Frequency: 1.8 kHz
    • Crossover Slope: 48 dB/oct, 8th order with phase correction
    • Equalization - Low Mid: 0, -1.5, -3, -4.5 dB
    • Equalization – via Neumann.Control software: 8 x full parametric IIR + low / high shelf global balance
    • FIR phase correction: Linear phase (170 Hz ... 16kHz, +/- 45°), Analog emulation
    • Latency A-D-A – linear phase, analog emulation mode: 2 ms, 0.5 ms
    • Protection circuitry: Independent soft clip, peak and thermo limiters for woofer and tweeter. Woofer excursion limiter.
    • Infrasonic filter - frequency; slope  61 Hz; 12 dB/oct.
    • Input: XLR / ¼” (6.3mm) Jack, analog electronically balanced
    • Impedance: 14k Ohms
    • Input gain control (sensitivity): 0 dB to -15 dB
    • Output level control: 94, 100, 108, 114 dB SPL
    • CMRR: >56 dB @ 15kHz
    • Max. input level: +24 dBu for 94 dB SPL setting
    • Digital converter resolution: 24-bit DAC
    • Digital internal sampling rate: 48 kHz
    • Dynamic range: D-A; woofer, tweeter  114 dB, 117 dB
    • User adjustable delay range: 0 … 70 ms
    • Audio-video/lip sync max. frames: 1.75 (40 ms frames) or 2.1 (33 ms frames)
    • Time-of-flight max. distance: 79ft (24 m)
    • Resolution – time/distance: 0.1 ms / 1-3/8” (3.44 cm)
    • Displays and indicators:
      • Normal operation: Neumann logo “White”
      • Identification: Neumann logo “Rosé”
      • Limit / clip / errors: Neumann logo “Red”
    • Mains Power Supply (voltage; frequency): 100-240V; 50/60 Hz
    • Power consumption (230 V / 100 V):
      • Standby: <330 / <50 mW
      • Idle: 9 / 8 W
      • Full output: 180 W
    • Standby: Disabled, 90 mins (default), or user defined in software
  • Mechanics:
    • Cabinet surface finish, color (front / back): Painted composite polycarbonate material, Anthracite (RAL 7021) / Black (RAL 9005)
    • Operating conditions:
      • +10° C to +40° C (+50° F to +104° F)
      • <75% RH, non-condensing
    • Transport/storage conditions:
      • -25° C to +70° C (-13° F to 158° F)
      • <90% RH, non-condensing
    • Woofer: 4" (100mm) with integrated black metal grille
    • Tweeter: 1" (25mm) with integrated black metal grille
    • Mounting points: 2 x M6 threaded inserts with 70 mm spacing on back panel, depth from outside of cabinet 16 mm (5/8”).
    • Product dimensions (H x W x D): 9-1/8" x 6" x 7-5/8" (233 x 154 x 194mm)
    • Net volume (internal / external): 3.7 liters / 7.0 liters
    • Product weight: 7 lbs, 8 oz (3.4 kg)
    • Packed dimensions (H x W x D): 13-5/8" x 10-7/8" x 9-5/8" (345 x 277 x 243mm)
    • Packed weight and cube: 9 lbs, 1 oz (4.1 kg), 0.023 m3
