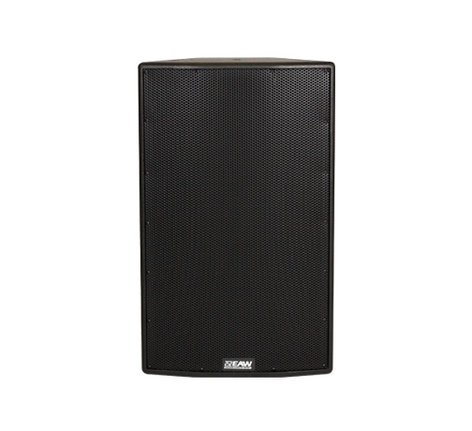

EAW-Eastern Acoustic Wrks MK5364I-BLACK
Black 15" 2 Way Full Range Speaker

OUR PART #:  MK5364I-BLACK

The MK5300i Series of 2-way, high output, trapezoidal loudspeaker systems are designed as main PA elements for smaller venues...
Learn More
Our Price: $1,644.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks MK5364I-BLACK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MK5300i Series of 2-way, high output, trapezoidal loudspeaker systems are designed as main PA elements for smaller venues, including small houses of worship and auditoriums/theaters, corporate A/V systems, hotel ballrooms and meeting rooms. The Series is also excellent for distributed or fill purposes in larger venues, including large houses of worship and auditoriums/theaters, arenas, stadiums, nightclubs, and themed-entertainment complexes.

To meet the design goals for the intended applications, EAW engineers developed a new, high performance, 3" voice coil, 1.4" exit compression driver, loading it with a selection of six different HF horns with coverage patterns ranging from 60° x 45° to 120° x 60°. The horns are as large as the enclosure size allows to maintain consistent directivity throughout the HF passband. A 3-inch voice coil, 15-inch LF driver was used to complement the sonic character and output of the HF driver. All MK5300i models are carefully voiced to sound similar, permitting diverse horn patterns to be mixed throughout an installation while maintaining the same sonic quality. The result is clean, high-fidelity output at significantly higher levels than would be expected from loudspeakers of this size and price.

Users can select between single-amp and bi-amp (external processor) operating modes. In either operating mode, EAW’s beamwidth-matching crossover/ filter design delivers even power response throughout the crossover region, eliminating the discontinuities that plague other two-way loudspeakers.

The MK5300i Series systems are the larger companions to the MK2300i Series systems. Enclosures for both series are the same height, facilitating installation where more than one horn pattern and/or type of loudspeaker capability is needed. In addition, SBK Series subwoofers also share this height, creating attractive arrays that use EAW’s preconfigured accessory flybar.

EAW MK5364I Features:

  • Premium Performance
  • Application Flexibility

EAW MK5364I Specifications:

  • SKU: 2040043
  • Configuration:
    • Subsystem:
      • Transducer: LF – 1x 15" cone;  HF – 1x 1.4" exit, 3" voice coil compression driver
      • Loading: LF – Vented; HF – Horn-loaded
    • Operating Mode:
      • Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
      • External Signal Processing: High pass filter; DSP w/2-way filters
  • Performance:
    • Operating Range (-10 dB, Hz): 48 – 17k
    • Axial Sensitivity (1W @ 1m, dB SPL):
      • LF: 98
      • HF: 106
      • Full Range: 98
    • Power Handling/Impedance (Watts @ Ohms):
      • LF: 800 @ 8
      • HF: 150 @ 8
      • Full Range: 800 @ 8
    • Calculated Maximum Output Peak (dB SPL):
      • LF: 133
      • HF: 134
      • Full Range: 133
    • Calculated Maximum Output Long Term (dB SPL):
      • LF: 127
      • HF: 128
      • Full Range: 127
    • Nominal Coverage (degrees):
      • Horizontal: 60°
      • Vertical: 45°
    • Powering: Switchable: bi-amplified or passive
  • Dimensions (HxWxD): 30.00" x 18.71 (Front) x 8.88" (Rear) x 19.73" (762 x475 x 226 x 501 mm)
  • Trap. Angle (degrees per side): 15°
  • Weight:
    • Net: 77 lbs (34.9 kg)
    • Shipping: 87 lbs (39.5 kg)
