EAW MK2366i-W 12" 2-Way Full Range Passive Speaker with 60×60 Coverage, White

Featuring a vented 12" LF cone, 1.4" exit HF compression driver, and horn-loaded design, EAW's MK2366i White is a full-range 12" speaker in their Premium Performance MK2300i Series of 2-way, high output, trapezoidal loudspeaker systems, designed to be employed as main PA elements for smaller venues, including small houses of worship/auditoriums/theaters, meeting rooms, corporate A/V systems, and hotel ballrooms. This Series is also great for distributed or fill purposes in larger venues, including larger houses of worship/auditoriums/theaters, plus arenas, stadiums, nightclubs, and themed-entertainment complexes.

MK2300i Series - To meet the design goals for the intended applications, EAW engineers developed a new, high performance, 3" voice coil, 1.4" exit compression driver, loading it with a selection of six different HF horns with coverage patterns ranging from 60° x 45° to 120° x 60°. The horns are as large as the enclosure size allows to maintain consistent directivity throughout the HF passband. A 3" voice coil, 12-inch LF driver was used to complement the sonic character and output of the HF driver. All MK2300i models are carefully voiced to sound similar, permitting diverse horn patterns to be mixed throughout an installation while maintaining the same sonic quality. The result is clean, high-fidelity output at significantly higher levels than would be expected from loudspeakers of this size and price.

Users can select between single-amp and bi-amp (external processor) operating modes. In either operating mode, EAW’s beamwidth-matching crossover/ filter design delivers even power response throughout the crossover region, eliminating the discontinuities that plague other two-way loudspeakers.

The MK2300i Series systems are the smaller companions to the MK5300i Series systems (sold separately). Enclosures for both series are the same height, facilitating installation where more than one horn pattern and/or type of loudspeaker capability is needed. In addition, SBK Series subwoofers also share this height, creating attractive arrays that use EAW’s preconfigured accessory flybar.

EAW MK2366i White Specifications:

• Manufacturer Part Number: 2039729
• Enclosure:
  • Material: Exterior-grade Baltic birch plywood
  • Finish: Wear resistant textured black paint
  • Grille: Powder-coated perforated steel
• Configuration:
  • Subsystem:
    • Transducer: LF – 1x 12" cone; HF – 1x 1.4" exit, 3" voice coil compression driver
    • Loading: LF – Vented; HF – Horn-loaded
  • Operating Mode:
  • Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
  • External Signal Processing: High pass filter; DSP with 2-way filters
• Performance:
  • Operating Range (-10 dB, Hz): 65Hz – 17KHz
  • Axial Sensitivity (1W @ 1m, dB SPL):
    • LF: 97, 65 Hz to 1350 Hz
    • HF: 105, 1200 Hz to 17 kHz
    • Full Range: 95, 65 Hz to 17 kHz
  • Power Handling/Impedance:
    • LF: 600W @ 8 Ohms
    • HF: 150W @ 8 Ohms
    • Full Range: 600 @ 8
  • Calculated Maximum Output Peak (dB SPL):
    • LF: 131
    • HF: 133
    • Full Range: 129
  • Calculated Maximum Output Long Term (dB SPL):
    • LF: 125
    • HF: 127
    • Full Range: 123
  • Nominal Coverage:
  • Horizontal: 60°
  • Vertical: 60°
• Dimensions:
  • Height: 30.00" (762mm)
  • Width (front): 15.54" (394.7mm)
  • Width (rear): 8.75" (222mm)
  • Depth: 14.75" (374.7mm)
• Weights:
  • Net: 60 lbs (27.2 kg)
  • Shipping: 70 lbs (31.8 kg)
• Trap. Angle (degrees per side): 15

Note:

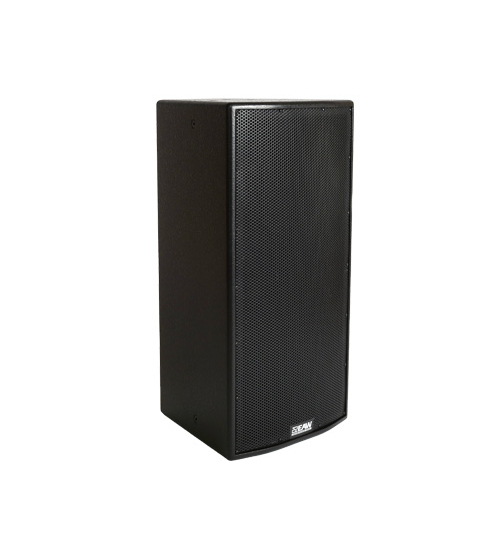

Shown above in black for illustrative purposes. Product listed here is actually the white version. Contact your Sales Pro for more information.
