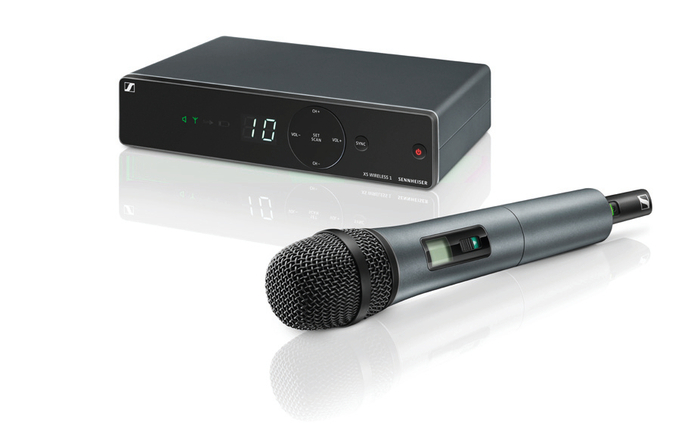

Sennheiser XSW 1-825 Wireless Handheld System with e825 Capsule

OUR PART #: XSW1-825-A MFR #: 507108

Copied to clipboard

Sennheiser’s XS Wireless 1 offers a solid wireless transmission with up to 10 compatible channels in a stable UHF band. ...Read more

Sennheiser XSW 1-825 Wireless Handheld System With E825 Capsule Image 1
Sennheiser XSW 1-825 Wireless Handheld System With E825 Capsule Image 2
Sennheiser XSW 1-825 Wireless Handheld System With E825 Capsule Image 3
Sennheiser XSW 1-825 Wireless Handheld System With E825 Capsule Image 4
Sennheiser XSW 1-825 Wireless Handheld System With E825 Capsule
Our Price: $299.00
List Price: $349.00
You save 14%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Sennheiser’s XS Wireless 1 offers a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS Wireless 1 Vocal Set is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution e825 dynamic cardioid microphone capsule to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Includes

  • EM-XSW 1 Receiver
  • SKM 825-XSW Handheld Transmitter
  • Microphone clamp
  • Power supply

Features

  • Excellent live sound featuring e825 dynamic cardioid capsule
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and sync via remote channel
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Specifications

  • System
    • Modulation: wideband FM
    • Frequency range: A: 548-572 MHz
    • Switching bandwidth: up to 24 MHz
    • Frequencies: 8 frequency banks, each with up to 10 factory-preset channels
    • Signal-to-noise ratio: >/= 103 dBA
    • THD:
    • THD: < /= 0.9%
    • Temperature range:
      • operation: 0°C to +40°C
      • storage: –20°C to +70°C
    • Transmitter sychronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • EM-XSW 1 Receiver
    • Receiver principle: double superheterodyne
    • Diversity principle: antenna switching diversity via internal antennas
    • Sensitivity (at peak deviation): < 3 µV at 52 dB(A)rms S/N
    • AF frequency response: 50 to 16,000 Hz (–3 dB)
    • Max. AF output voltage (at peak deviation, 1 kHz AF): 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
    • Audio adjustment range: 45 dB, adjustable in 5-dB steps
    • Power supply: 12 V DC nom. / 300 mA
    • Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
    • Line/Mic level: 20 dB, switchable
    • Housing material: rugged ABS housing
    • Dimensions (WxHxD): 7.87" x 1.65" x 5"
    • Weight: 0.75 lbs.
  • SKM 825 Microphone
    • RF output power: 10 mW
    • AF frequency response:
      • SKM 825: 80-14,000 Hz
    • Power supply: 2 AA size batteries, 1.5 V
    • Operating time: approx. 10 hrs
    • Microphone type: dynamic
    • Pick-up pattern: cardioid
    • Input sensitivity (caspsule): 1.5 mV / Pa
    • Adjustment range of transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps
    • Housing material: rugged ABS housing
    • Dimensions (L x Ø): 10.23" x 1.96"
    • Weight: 0.54 lbs.
