Product Overview

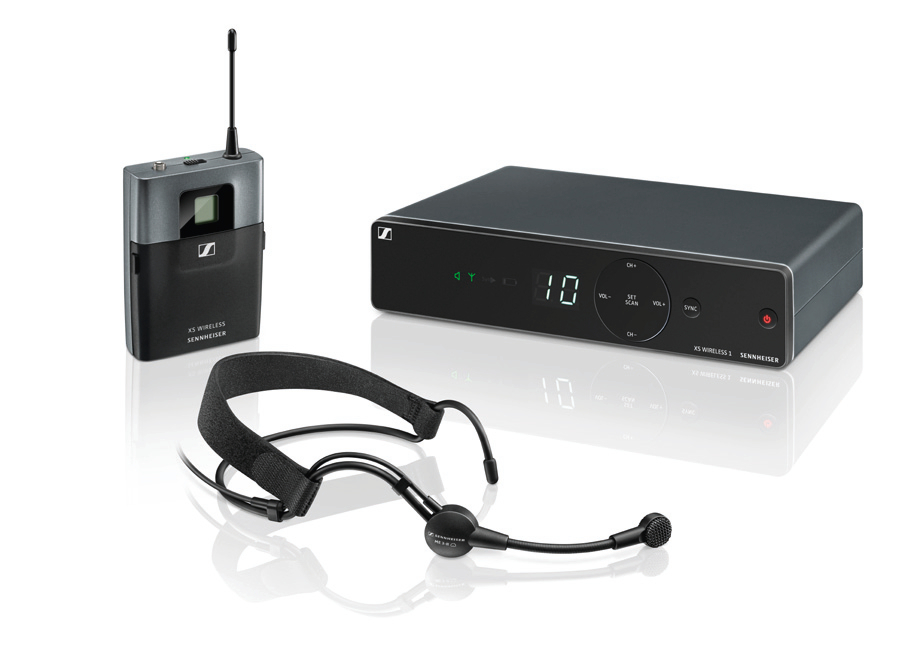

The Sennheiser XSW1-ME3 is a XS wireless 1 headmic set. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.
Includes
- EM-XSW 1 Receiver
- ME 3-II Headset microphone
- SK-XSW bodypack transmitter
- Power supply
- (2) AA batteries
Features
- Lightweight headmic and compact bodypack transmitter
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Specifications
- System
- Modulation: wideband FM
- Frequency ranges: A: 548-572 MHz
- Switching bandwidth: up to 24 MHz
- Frequencies: 8 frequency banks, each with up to 10 factory-preset channels
- Signal-to-noise ratio: >/= 103 dBA
- THD:
- Temperature range:
- operation: 0°C to +40°C
- storage: –20°C to +70°C
- Transmitter synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Receiver (EM-XSW 1)
- Receiver principle: double super heterodyne
- Diversity principle: antenna switching diversity via internal antennas
- Sensitivity (at peak deviation): < 3 µV at 52 dB(A)rms S/N
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Max. AF output voltage (at peak deviation, 1 kHz AF): 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Power supply: 12 V DC nom. / 300 mA
- Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
- Line/Mic level: 20 dB, switchable
- Housing material: rugged ABS housing
- Dimensions (WxHxD): 7.87" x 1.65" x 5"
- Weight: 0.74 lbs.
- Bodypack Transmitter (SK-XSW)
- RF output power: 10 mW
- AF frequency response:
- Line: 50-16,000 Hz
- Mic: 50-16,000 Hz
- Audio Input: 3.5 mm jack socket
- Max. input voltage (Mic/LIne) at 3% THD: typ. 1.V rms Mic / typ. 2.6 V rms Line at -30 dB gain
- Power supply: 2 AA size batteries, 1.5 V
- Operating time: approx. 10 hrs
- Adjustment range of transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps
- Housing material: rugged ABS housing
- Dimensions (WxHxD): 2.79" x 3.77" x 1.1"
- Weight: 0.2 lbs.
- Headset Microphone (ME 3-II)
- Transducer principle: condenser, pre-polarized
- Sensitivity: 1.6 mV/Pa
- Pick-up pattern: cardioid
- Max. SPL: 150 dB
