Product Overview

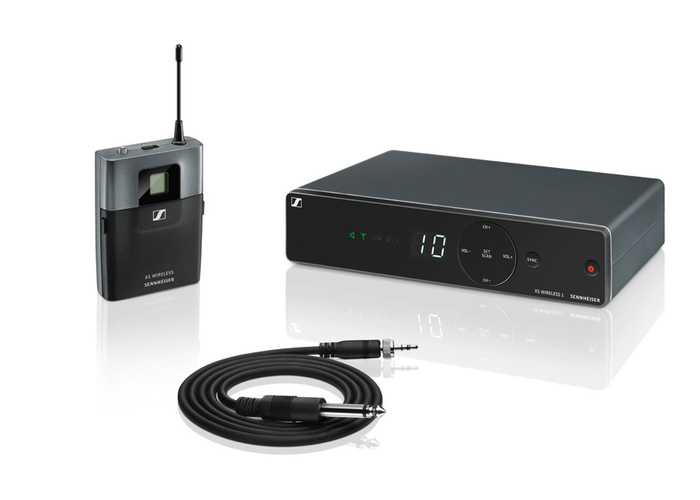

The Sennheiser XSW1-CI1 is a wireless instrument microphone set. The XS WIRELESS 1 relies on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-in-one wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact body-pack transmitter and a robust instrument cable.
Includes
- (1) receiver EM-XSW 1
- (1) body-pack transmitter SK-XSW
- (1) instrument cable Cl1
- (1) power supply NT 12-5 CW
- (2) AA batteries
Features
- Compact body-pack transmitter and robust instrument cable
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Specifications
- System (XSW 1-Cl1)
- Modulation: wideband FM
- Frequency range: A: 548-572 MHz, GB: 606-630 MHz
- Switching bandwidth: up to 24 MHz
- Signal-to-noise ratio: >/= 103 dBA
- THD: < /= 0.9%
- Temperature range:
- operation: 0°C to +40°C
- storage: –20°C to +70°C
- Transmitter synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Receiver (EM-XSW 1)
- Receiver principle: double superheterodyne
- Diversity principle: antenna switching diversity via internal antennas
- Sensitivity (at peak deviation): < 3 µV at 52 dB(A)rms S/N
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Max. AF output voltage (at peak deviation, 1 kHz AF): 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced) +12 dBu
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Power supply: 12 V DC nom. / 300 mA
- Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
- Line/Mic level: 20 dB, switchable
- Housing material: rugged ABS housing
- Dimensions (WxHxD): 7.87" x 1.68" x 5"
- Weight: 0.74 lbs.
- Body-pack Transmitter (SK-XSW)
- RF output power: 10 mW
- AF frequency response
- Line: 50-16,000 Hz
- Mic: 50-16,000 Hz
- Audio Input: 3.5 mm jack socket
- Max. input voltage (Mic/LIne) at 3% THD: typ. 1.V rms Mic / typ. 2.6 V rms Line at -30 dB gain
- Power supply: 2 AA size batteries, 1.5 V
- Operating time: approx. 10 hrs
- Adjustment range of transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps
- Housing material: rugged ABS housing
- Dimensions (WxHxD): 2.79" x 3.77" x1.1"
- Weight: 0.2 lbs.
