Sennheiser XSW 1-ME2 Wireless Bodypack System with ME2 Mic

OUR PART #: XSW1-ME2-A MFR #: 506980

Copied to clipboard

The Sennheiser XSW1-ME2 is a XS wireless lavalier microphone set. ...Read more

Sennheiser XSW 1-ME2 Wireless Bodypack System With ME2 Mic Image 1
Sennheiser XSW 1-ME2 Wireless Bodypack System With ME2 Mic Image 2
Sennheiser XSW 1-ME2 Wireless Bodypack System With ME2 Mic Image 3
Sennheiser XSW 1-ME2 Wireless Bodypack System With ME2 Mic Image 4
Sennheiser XSW 1-ME2 Wireless Bodypack System With ME2 Mic
Our Price: $379.00
List Price: $449.00
You save 16%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

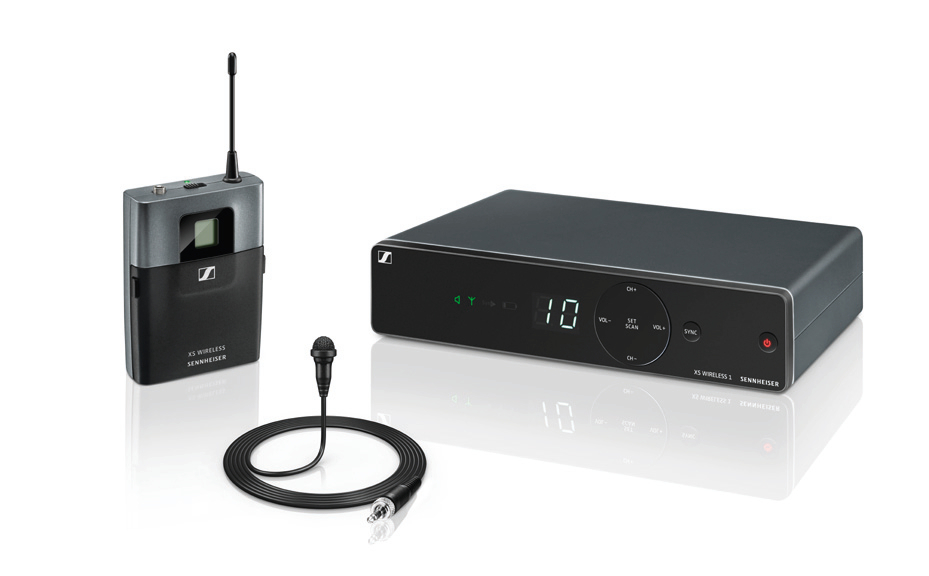

The Sennheiser XSW1-ME2 is a XS wireless lavalier microphone set. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

Includes

  • EM-XSW 1 Receiver
  • SK-XSW Bodypack Transmitter
  • ME 2-2 Lavalier Microphone
  • Power supply

Features

  • Lightweight lavalier microphone and compact bodypack transmitter
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Specifications

  • System (XSW 1-ME2)
    • Modulation: wideband FM
    • Frequency range: A: 548-572 MHz, GB: 606-630 MHz
    • Switching bandwidth: up to 24 MHz
    • Frequencies: 8 frequency banks, each with up to 10 factory-preset channels
    • Signal-to-noise ratio: >/= 103 dBA
    • THD:
    • Temperature range:
      • operation: 0°C to +40°C
      • storage: –20°C to +70°C
    • Transmitter sychronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Receiver (EM-XSW 1)
    • Receiver principle: double superheterodyne
    • Diversity principle: antenna switching diversity via internal antennas
    • Sensitivity (at peak deviation): < 3 µV at 52 dB(A)rms S/N
    • AF frequency response: 50 to 16,000 Hz (–3 dB)
    • Max. AF output voltage (at peak deviation, 1 kHz AF): 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
    • Audio adjustment range: 45 dB, adjustable in 5-dB steps
    • Power supply: 12 V DC nom. / 300 mA
    • Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
    • Line/Mic level: 20 dB, switchable
    • Housing material: rugged ABS housing
    • Dimensions (WxHxD): 7.87" x 1.68" x 5"
    • Weight: 0.74 lbs.
  • Bodypack Transmitter (SK-XSW)
    • RF output power: 10 mW
    • AF frequency response:
      • Line: 50-16,000 Hz
      • Mic: 50-16,000 Hz
    • Audio Input: 3.5 mm jack socket
    • Max. input voltage (Mic/LIne) at 3% THD: typ. 1.V rms Mic / typ. 2.6 V rms Line at -30 dB gain
    • Power supply: 2 AA size batteries, 1.5 V
    • Operating time: approx. 10 hrs
    • Adjustment range of transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps
    • Housing material: rugged ABS housing
    • Dimensions (WxHxD): 2.79" x 3.77" x 1.1"
    • Weight: 0.2 lbs.
  • Lavalier Microphone (ME2-2)
    • Transducer principle: condenser, pre-polarized
    • Sensitivity: 20 mV/Pa
    • Pick-up pattern: omni-directional
    • Max. SPL: 130 dB
