High End Systems RACK-HOG-4
Rack Hog 4 Lighting Console with No Output Limit


Call for price! Not available online.
List Price: $6,999.00

Similar Products

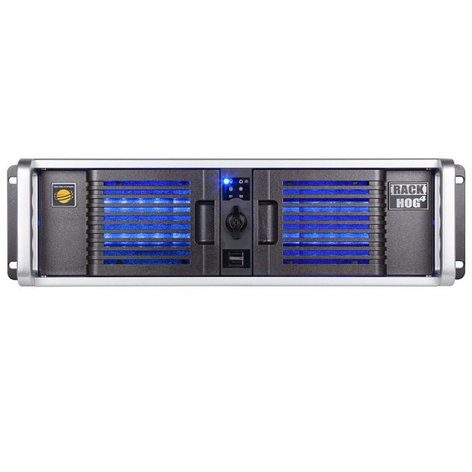

The Elation Pro Lighting HOG669 RackHog 4 has all the power of a Hog 4 console condensed into a 3U rack mount unit making it the ideal solution for fixed install applications such as cruise ships, theme parks, and architectural installations. RackHog 4 is also perfectly suited to operate as a backup to any Hog 4 family console.

Plug a Nano Hog 4 into the RackHog 4, add a touch screen and you have a powerful control system ready to take on any show. Perfect for those applications where permanent hardware interfaces are not necessary this Hog is perfect for program and leave situations.

RackHog 4, like the other consoles in the Hog 4 family, runs on Linux and is compatible with all of the same peripheral hardware. RackHog 4 has no limits, and is fully expandable in conjunction with DMX Processor 8000’s.

Elation Pro Lighting RACK-HOG-4 Includes:

  • Keyboard
  • Mouse

Elation Pro Lighting RACK-HOG-4 Features:

  • Robust Hog 4 Operating Software
  • Unlimited Number of Simultaneous Crossfades
  • Built in DMX Processor 8000
  • Hog-Net Ethercon Connector
  • Fixture-Net Ethercon Connector
  • (4) USB Ports for Wholehog Wings and External Touchscreens
  • Auto-Ranging Mains Input (90-250VAC)
  • Solid State Hard Drive

Elation Pro Lighting RACK-HOG-4 Specifications:

  • Connectivty:
    • Unlimited DMX channels and Art-Net and E1.3.1 (sACN) Universes via Ethernet DPs
    • Onboard MIDI Input/Output, MIDI Show Control and MIDI Time Code and LTC Input
    • Multiple LTC Inputs via Multiple SMPTE / LTC USB Widgets
    • Connectivity with Many Visualizers via Ethernet
    • Total Networking with Multiple Wholehog Console Systems
    • Remote Focus Capabilities via Open Sound Control
    • Connectivity to Remote Windows PC’s running Hog 4PC Software
    • Supports USB Playback and Expansion Wings
  • Size: (LxWxH): 19.09” x 16.59” x 5.21” (485.03 x 421.5 x 132.36mm)
  • Weight: 21 lbs (9.52kg)
