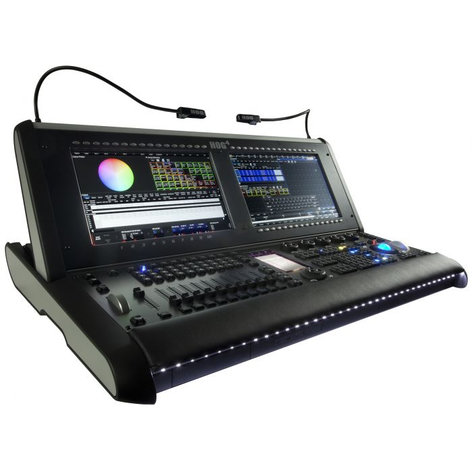

High End Systems HOG-4
16 Universe HOG 4 Lighting Console with DP8000 & Road Case

OUR PART #:  HOG-4

The Elation Pro Lighting Hog 4 is the flagship in the newest range of consoles.
Learn More
Similar Products

The Elation Pro Lighting Hog 4 is the flagship in the newest range of consoles. Replacing the much loved Wholehog III, it embraces the latest technology, while retaining the Hog’s familiar control surface. Users will be able to walk up to the Hog 4 and start programming without having to learn a whole new interface. The new encoders, jog shuttle wheel, LCD keys, motorized faders and integrated keyboard all serve to enhance this experience, making the Hog 4 completely customizable. You can now have virtually all the most important attributes to hand at any time.

Retaining the sleek look of generations past, the Hog 4 offers the user an advanced programming experience in an established environment. The Hog 4 console, at the top of the Hog line, is designed to handle the largest shows.

Elation Pro Lighting HOG-4 Includes:

  • Light Converse Visualizer Dongle
  • Dust Cover
  • Custom Road Case

Elation Pro Lighting HOG-4 Features:

  • Robust Hog 4 Operating Software
  • Unlimited Number of Simultaneous Crossfades
  • (2) Internal 17" Wide Touchscreens with 10 Point Multi-Touch
  • (3) External Monitors or Touchscreens Supported
  • (5) Encoders for an Expanded Wheelset
  • (12) LCD User Keys
  • Tri Axis Backlit Trackball, w/Rotary Encoder for The Third Axis and (4) Configurable Buttons for Cursor and Position Control
  • (10) Motorized Playback Faders
  • (1) Motorized Grand Master
  • Dedicated Intensity and Rate Wheels
  • User Assignable Jog Shuttle Encoder
  • (48) Soft-Keys for Quick Toolbar Selections
  • Built in DMX Processor 8000 Included
  • Hog-Net Ethernet Connector
  • Fixture-Net Ethernet Connector
  • Integrated Keyboard
  • Internal Hard Disk drive
  • Internal CD/DVD drive
  • Eight USB Ports for Wholehog Wings and External Touchscreens
  • Storage Space Under Arm Rest
  • Desklights, Feedback LEDs, and Integrated Worklight (dimmable)
  • Auto-Ranging Mains Input (90-250VAC)

Elation Pro Lighting HOG-4 Specifications:

  • Connectivity:
    • Unlimited DMX Channels, Art-Net and E1.3.1 (sACN) Universes via Ethernet DPs
    • Onboard MIDI Input/Output, MIDI Show Control and MIDI Time Code and LTC Input
    • Multiple LTC inputs via optional multiple SMPTE/ LTC USB Widget
    • Connectivity with Many Visualizers via Ethernet
    • Wired and Wireless Networking with Multiple Wholehog Console Systems
    • Remote Focus Capabilities w/Networked Tablet PC Running Hog 4PC Software
    • Supports USB Playback and Expansion Wings
  • Size/Weight:
    • Screen Down (LxWxH): 40.5” x 28.49” x 6.49” (1028.7x 723.7 x 164.75mm)
    • Screen Up (LxWxH): 40.5” x 28.49” x 16.43” (1028.7 x 723.7 x 417.39mm)
    • Weight: 75.0 lbs (34 kg)
