ETS InstaSnake PA202FWP
Double Gang Brushed Steel Wall Plate, (4) XLRF to 110 Punchdown

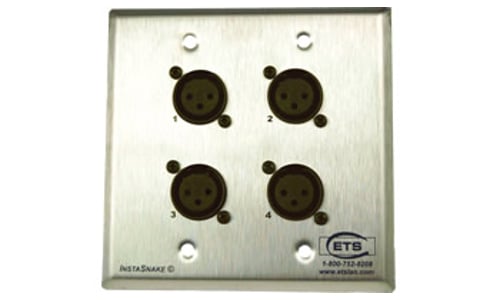

The ETS InstaSnakeā„¢ PA202FWP is a two-gang brushed steel wall plate that features four female XLR connectors.
Learn More
Our Price: $153.05
List Price: $171.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


ETS InstaSnake PA202FWP
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETS InstaSnakeā„¢ PA202FWP is a two-gang brushed steel wall plate that features four female XLR connectors. This unit allows you to run audio signals over a single run of CAT5, 5e, 6 or 6a data cables. With a roll of cable, this compact unit is easily transported and/or stored solving dozens of live and recording sound problems.

The InstaSnake is a passive unit, so you do not need power, and it accepts mic or line level analog or digital audio and supports phantom power when using shielded CAT5 or 6 cables. This unit also features bi-directional capability which can be input directly into analog or digital consoles.

Designed to the highest professional standards, the InstaSnake PA202FWP has a wide, flat frequency response, low THD and residual noise. The InstaSnake has been factory tested to 1900 feet over CAT5 using balanced line low impedance dynamic microphones, and phantom power has been tested to 850 feet over shielded cable, which is required to pass phantom power.

ETS InstaSnake PA202FWP Features:

  • Easily transported
  • May be used for analog or digital audio - mic or line level
  • Supports 48V phantom power when using shielded CAT5 cable
  • Rugged, road-ready construction
  • RoHS Compliant
  • USA Made - 100% Tested

ETS InstaSnake PA202FWP Specifications:

  • Crosstalk at 20 kHz:
    • -109dB between Ch. 1 and Ch. 2
    • -102dB between Ch. 1 and Ch. 3
    • -106dB between Ch. 1 and Ch. 4
    • -106dB between Ch. 2 and Ch. 3
    • -106dB between Ch. 2 and Ch. 4
    • -109dB between Ch. 3 and Ch. 4
  • Distance:
    • UTP: 1900 ft
    • FTP or STP: 850 ft
  • Connectors:
    • (4) XLRF
  • Dimensions: 5.3" L x 5.23" W x 1.68" H (117 x 115 x 37 mm)
