Draper Shade and Screen 116370L
Targa 137" Diagonal, 16:10, Screen with Matt White XT1000E Surface

OUR PART #:  116370L

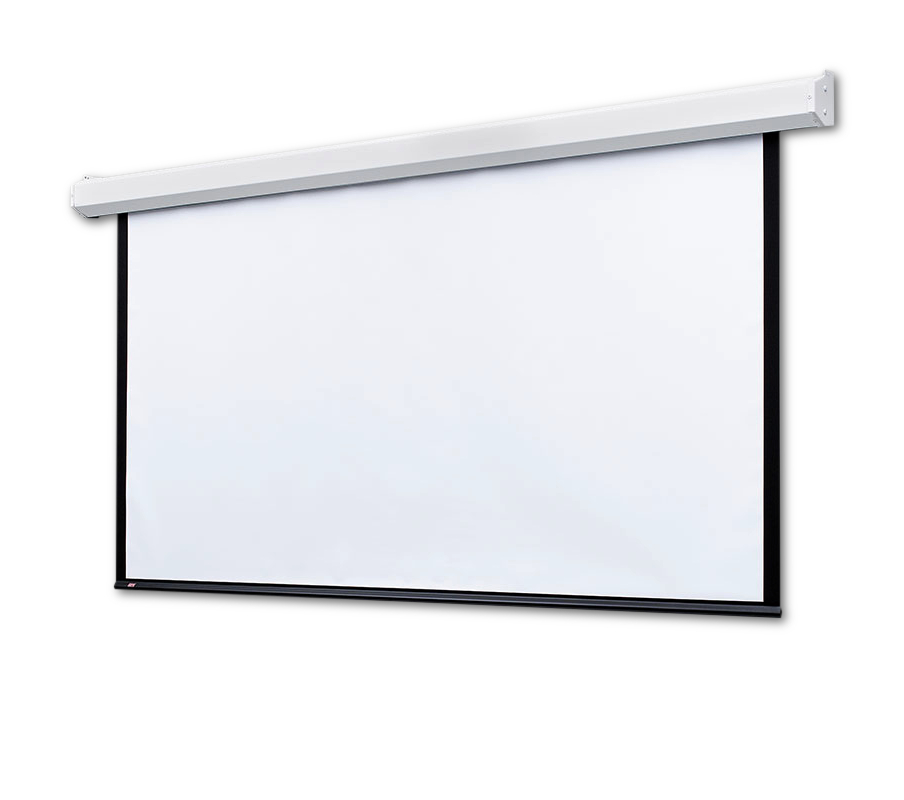

Draper's model 116370L, part of their Targa series of Electric Projection Screens, is a motorized projection screen that's housed in a pentagonal steel case.
Learn More
Our Price: $1,098.00
List Price: $1,371.94
You save 20%!
Write the first review.
Draper Shade and Screen 116370L
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Draper's model 116370L, part of their Targa series of Electric Projection Screens, is a motorized projection screen that's housed in a pentagonal steel case. It's a popular projection screen that can be mounted on the wall or in the ceiling. It's great for auditoriums, lecture halls, hospitals, hotels, churches, boardrooms, and conference rooms. The motor is mounted inside the roller, giving a clean low-profile appearance. It comes in a steel case with a standard white (black is optional-contact your Sales Pro for more information) with matching endcaps and universal mounting brackets. This particular model, the 116370L, comes with a Matt White XT1000E screen surface.

Matt White XT1000E Screen Surface
Draper's Matt White XT1000E is the standard to which all other screen surfaces are measured. It's the preferred viewing surface in educational and commercial markets. The matt white surface diffuses projected light in all directions, so the image can be seen from any virtually angle. It provides accurate color rendition and superior clarity, due to its smooth, non-embossed surface. It requires adequate provision for the control of ambient light in the audience area. Unity gain with a panoramic 180┬░ cone. This surface is GREENGUARD Children and SchoolsSM certified.

Draper 116370L Targa Electric Screen Features:

  • Screen operates instantly at the touch of a button and stops automatically in the "up" and "down" positions
  • Viewing surface can be lowered to any position at the touch of a switch
  • Floating screen brackets are available for more flexible installation
  • Extra drop above viewing area available, specify color
  • Available with a ceiling trim kit for ceiling recessed installation.
  • With control options, it can be operated from any remote location
  • Plug & Play with built-in Low Voltage Controller (LP)
  • Warranted for one year against defects in materials and workmanship

Draper 116370L Targa Electric Screen Specifications:

  • Surface material: Matt White XT1000E
  • Voltage: 110V
  • Low Voltage Motor
  • Image Format: 16:10
  • Diagonal size: approx. 137" (348cm)
  • Image/Viewable area: 72-1/2" x 116" (184 x 295cm)
  • Overall size: 76-1/2" x 120" (194 x 305cm)
  • Case length: 127" (323cm)
  • Product weight: 54 lbs (24 kg)
  • Shipping weight: 75 lbs (34 kg)

Matt White XT1000E Viewing Surface:

  • Maximum Height Without Seams: 120"
  • Weight (g/sm): 515
  • Weight (oz/yd2): 15.19
  • Thickness (mm): 0.38
  • Cleaning:  Mild soap and water
  • Flame Retardant: NFPA-701
  • Composition:Fiberglass base laminated with PVC. Composition may differ slightly for some screen sizes/models.
  • Gain On Axis/0┬░ Gain: 1
  • Half Gain Angle: Material does not reach half gain.
