Product Overview

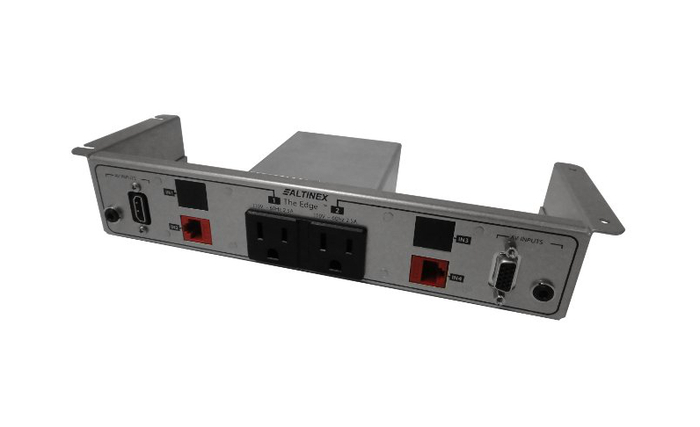

The Altinex UT240-328S is a next generation under table interconnect unit that provides users a Hybrid connection station for Analog and Digital AV equipment and two (2) 12 amp power sockets that can be used to power multiple laptops or other devices, and is designed for mounting against a surface, usually under a table or inside a podium.
The front of the UT240-328S offers the following pass-through connectors:
- 2 standard AC receptacles
- 1 gender changer for HDMI® Digital Video (F/F)
- 1 gender changer for VGA Video
- 2 3.5mm Audio Jacks for Computer/MP3 Audio
- 2 Network (RJ-45) snap-in connectors
- 2 additional (blanked out) snap-in locations. A wide range of snap inconnectors are available from Altinex
Altinex UT240-328S Features:
- Easily installs under a table or inside a podium
- Convenient access to power, AV and network connectors
- Wide range of snap-in connectors available
- Single power cord
- Table cutting is not required
- Low profile design
- UL listed
- Comparable to UT240-278 (sold separately) but with Hybrid (Analog and Digital) Connectivity
- 12 Amp current capability
- Ten year warranty available
Altinex UT240-328S Specifications:
- Pass-Through: Front to Back
- AC Power: NEMA Receptacle to plug, 9-10 ft(2.7-3 m) cord
- Audio,Stereo Cable: 3.5 mm F-F, 8 in (200 mm) cable
- Audio, Stereo TB: 3.5 mm F to Term Block
- Audio, Stereo RCA: RCA bulkhead F-F
- Network (CAT-6): Snap-in RJ-45 connector (no cable)
- Modem/phone: Snap-in RJ-11 connector (no cable)
- Video, Analog: 15-pin HD bulkhead, F-F
- Video, Digital: 19-pin HDMI bulkhead, F-F
- Video: BNC bulkhead F-F
- Communications: USB Type A F-F
- Maximum Shipping Weight: 3.5 lb (1.6kg)
- T Operating [T Maximum]: 10C - 35C[50C]
- Humidty: 90% non-condensing
- Pass-Through Signals: All standard audio, video, network, and modem signals are acceptable
- Pass-Through AC: 12 A, 1440 W max (total through all receptacles
- Dimensional Illustration:
