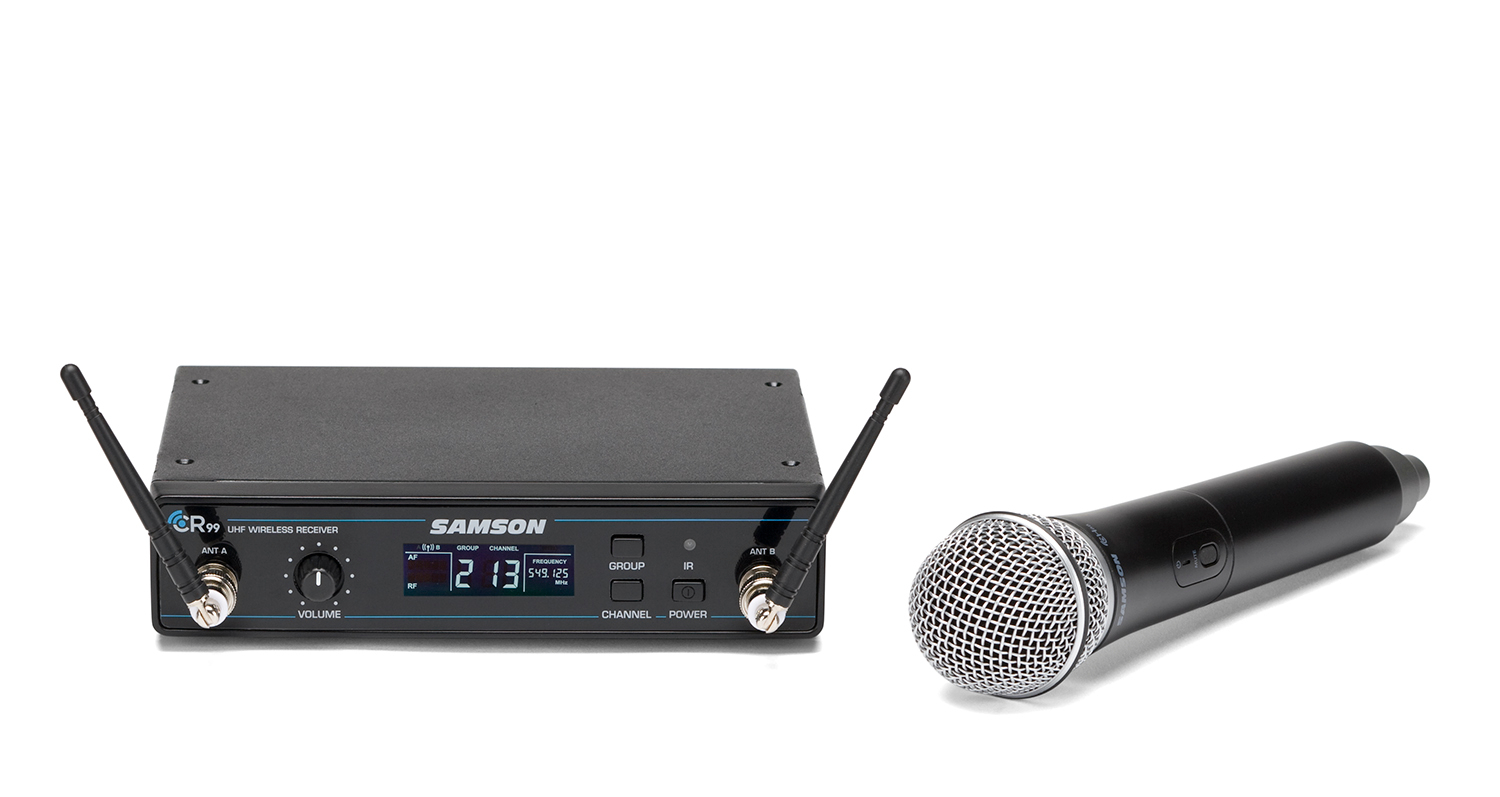

Samson SWC99HQ8-D Concert 99 Handheld Wireless System with Q8 Microphone, D Band

OUR PART #: SWC99HQ8-D MFR #: SWC99HQ8-D

Copied to clipboard

The Samson Concert 99 wireless system combines 80 channels of high-definition audio and extreme reliability into a rugged all-metal... ...Read more

Samson SWC99HQ8-D Concert 99 Handheld Wireless System With Q8 Microphone, D Band Image 1
Samson SWC99HQ8-D Concert 99 Handheld Wireless System With Q8 Microphone, D Band Image 2
Samson SWC99HQ8-D Concert 99 Handheld Wireless System With Q8 Microphone, D Band
Our Price: $299.99
List Price: $419.98
You save 29%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$9/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Samson Concert 99 wireless system combines 80 channels of high-definition audio and extreme reliability into a rugged all-metal, rack-mountable chassis with a stage-ready backlit display. With simple 1-touch setup, convenient monitoring, a 300’ UHF operating range and impressive transmitter battery life this frequency-agile system offers an unprecedented value for performers and presenters.

Applications

  • Club-date musicians
  • Wedding DJs and performers
  • House of worship
  • Education/corporate AV

Features

  • Concert 99 Handheld System:
    • Frequency-agile UHF wireless system
    • 80 operating channels across 24MHz bandwidth
    • Up to eight simultaneous systems per frequency band (region dependent)
    • AC adapter and rackmount kit included
  • CR99 Wireless Receiver:
    • Rugged all-metal, rack mountable chassis
    • Multifunctional backlit LCD (RF, audio, transmitter battery levels)
    • Group scan for easy single or multi-system setup
    • IR sync wirelessly matches receiver and transmitter frequency
    • True RF Diversity design minimizes dropouts
    • Tone key prevents unwanted noise when transmitter is off/out of range
    • Removable 1/4-wave antennas
    • Balanced XLR and 1/4" outputs
  • CH99 Handheld Transmitter:
    • Q8 Professional Dynamic Microphone capsule
    • Offers up to eight hours of battery life using two AA batteries
    • 300' operating range (line-of-sight)
    • Variable Gain control
    • 1-touch Mute

Specifications

  • System
    • Working Range: 300' (100m) line of sight
    • Audio Frequency Response: 50 Hz - 15 kHz
    • T.H.D. (Overall):
    • Dynamic Range: >103 dB A-weighted
    • Signal to Noise: >90 dB
    • Operating Temperature: –10°C (14°F) to +60°C (+140°F)
    • Tone Key Frequency: 35.000 kHz
  • CB99 Belt pack Transmitter
    • Input Connector: Mini-XLR (P3)
    • Input Impedance: 1MΩ
    • Input Gain Range: 38 dB
    • RF Power: 10 mW EIRP
    • Power Requirements: Two AA (LR6) alkaline batteries
    • Battery Life: 8 hours
    • Dimensions (H x L x D): 3.75" x 2.44" x 0.75", 96mm x 62mm x 18.5mm
    • Weight: 0.2 lb / 93 g
  • CH99 Handheld Transmitter
    • Microphone Element: Dynamic
    • Input Gain Range: 28 dB
    • RF Power: 10 mW EIRP
    • Power Requirements: Two AA (LR6) alkaline batteries
    • Battery Life: 8 hours
    • Dimensions (H x Ø): 10.23" x 2.1", 260mm x 54mm
    • Weight: 0.48 lb / 218 g
  • CR99 Receiver
    • Audio Output Level - Unbalanced: +14 dBu
    • Audio Output Level - Balanced: +9 dBu
    • Audio Output Impedance - Unbalanced: 810 Ohms
    • Audio Output Impedance - Balanced: 240 Ohms
    • Sensitivity: -100 dBm / 30 dB sinad
    • Image Rejection: >50 dB
    • Operating Voltage: 15 VDC 200mA
    • Dimensions (L x W x H): 7.87" x 5.9" x 1.6", 200mm x 150mm x 42mm
    • Weight: 2.08lb / 0.946kg
