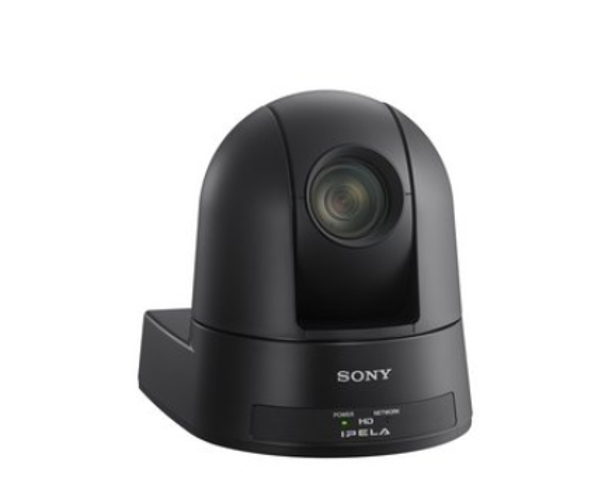

Sony SRG300SE/PAC5
SRG-300SE PTZ Camera with RC5-SRG EZ-2-Connect Kit

OUR PART #:  SRG300SE/PAC5

The Sony SRG-3000SE/PAC5 is the latest addition to Sony’s EZ-2-Connect PTZ Camera Package line up.
Learn More
Our Price: $4,311.23
List Price: $5,499.00
You save 22%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Sony SRG300SE/PAC5
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Sony SRG-3000SE/PAC5 is the latest addition to Sony’s EZ-2-Connect PTZ Camera Package line up. With just one standard CAT cable, you can easily control and power the Sony SRG-300SE IP Streaming HD PTZ camera (black housing) plus save time and money on long distance installations (up to 300’ over CAT5e/6 cable).

Sony SRG300SE/PAC5 Includes:

  • SRG-300SE black camera
  • Camera/Head-End Interface Modules
  • 1 ft HDMI Camera Cable
  • 1 ft UTP Camera Cable
  • 1 ft DC Power Camera Cable
  • 3 ft HDMI Camera Head-End Cable
  • 3 ft UTP Head-End Cable
  • Power Supply

Sony SRG300SE/PAC5 Features:

  • 1/ 2.8” Exmor® CMOS Sensor - 1080/60p ,1080/60i , 720/60p
  • High 30x Optical Zoom (12x Digital Zoom)
  • Simultaneous 3G-SDI and IP H.264 Full HD streaming
  • 65° Horizontal Wide Field of View
  • View-DR® Wide Dynamic Range Technology - Ideal for extreme lighting conditions
  • XDNR® (eXellent Dynamic Noise Reduction) Technology helps to provide clear Images in low-light conditions
  • Network Port 10BASE-T /100BASE-TX (RJ-45)
  • Up to 256 camera preset positions
  • Web Viewing Function for remote camera control – up to 20 clients
  • Control via RS-422
  • Desktop or Ceiling mountable with Image E:Flip Function
  • Pan/Tilt Angle: Pan +/- 170° Tilt: +/-90° / 20°

Sony SRG300SE/PAC5 Specifications:

  • Image Device: 1/2.8 Exmor CMOS
  • Effective Pixels: Approx. 2.1 Megapixels
  • Lens: 30x Optical Zoom / 12x Digital Zoom
  • Minimum Object Distance: 10mm (wide) - 1200 mm (tele)
  • Auto Exposure: Auto, Manual, Priority, AE (shutter, iris), Exposure Compensation, Blight
  • Shutter Speed:
    • 1/1 to 1/10000 sec (59.94 Hz system)
    • 1/1 to 1/10000 sec (50 Hz system)
  • Gain: Auto/Manual (0 to +43 db)
  • White Balance: Auto, Indoor, Outdoor, One-push auto, ATW, Manual
  • Pan Angle/Speed: Pan 100°/sec
  • Tilt Angle/Speed: Tilt 90°/sec
  • Horizontal Viewing Angle: 63.7° (wide)
  • Preset Positions: 256 - Position number 17 to 256 are stored as PTZF only
  • Interface Specifications:
    • Camera Control Interface:
      • 3G-SDI HD Video Output
      • RS-422 Serial Interface
  • Video Output Specifications:\
    • Horizontal Resolution: 1920x1080, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, (H.264, JPEG)
    • Minimum Illumination:
      • 1.4 lux (F1.6, 50 IRE, high sensitivity mode OFF, 30 fps)
      • 2.8 lux (F1.6, 50 IRE, high sensitivity mode OFF, 60 fps)
      • 0.35 lux (F1.6, 50 IRE high sensitivity mode ON, 30 fps)
      • 0.7 lux (F1.6, 50 IRE, high sensitivity mode ON, 60 fps)
    • S/N Ratio: 50 dB
    • Video Output:
      • 3G-SDI HD Video Output
      • RS-422 Serial Interface
    • Signal System:
      • 1080/59.94 (A/B), 50p (A/B), 29.97p, 25p
      • 1080/59.94i, 50i
      • 720/59.94p, 50p, 29.97p, 25p
  • General Specifications:
    • Dimensions (WxHxD): 6.25" x 6.5" x 6.5" (157 x 164 x 163 mm)
    • Weight: Approx. 3lb. 1.4 oz (1.4kg)
    • Power Requirements: DC 12V (DC 10.8 to 13.2V)
    • Power Consumption: 16.8W
    • Operating Temperature: 32°F to 104° F (0°C to 40° C)
    • Storage Temperature: -4° F to 140° F (-20° C to +60°C)
