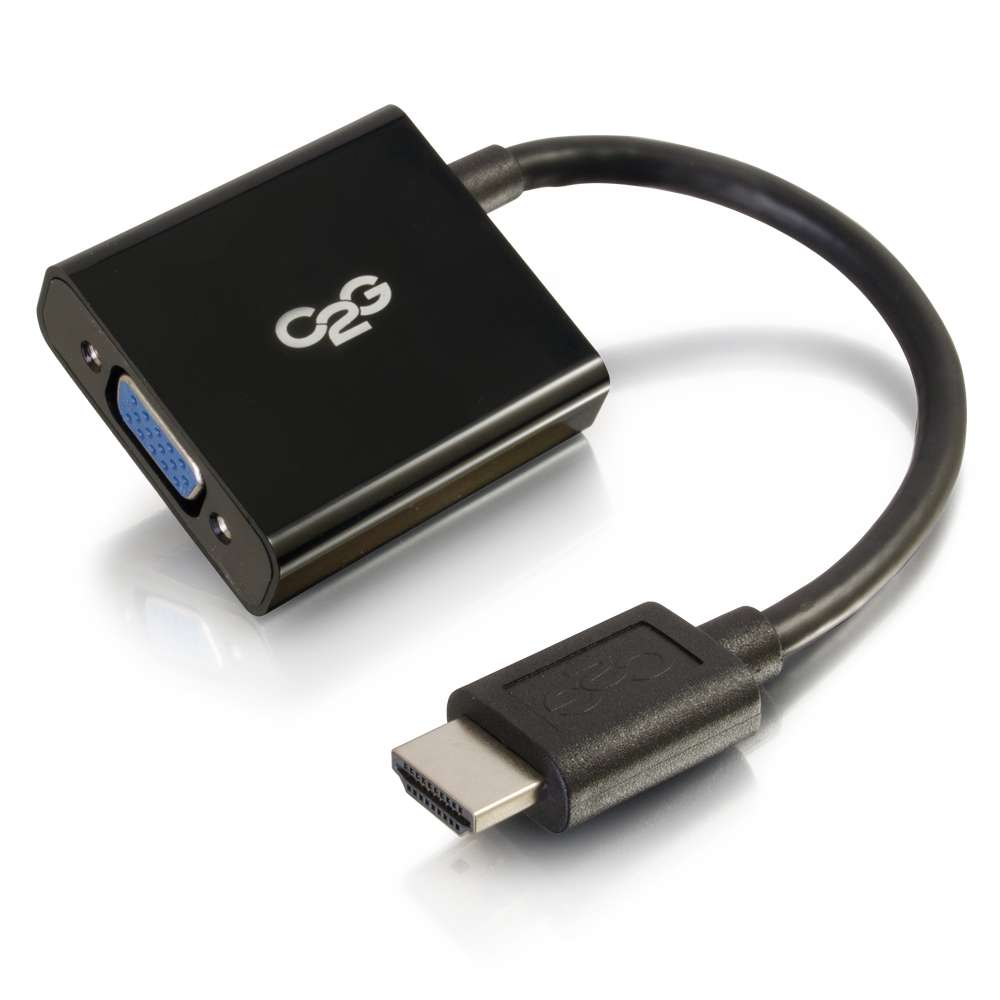

Cables To Go HDMI Male to VGA Female
Adapter Converter Dongle

OUR PART #:  41350

This adapter converter dongle from Cables To Go is well-suited for connecting the video output of an HDMI-enabled Chromebook or laptop to a VGA display.
Learn More
Our Price: $28.63
List Price: $39.99
You save 28%!
Write the first review.
Cables To Go HDMI Male to VGA Female
Qty:
In Stock

Related Products

This adapter converter dongle from Cables To Go is well-suited for connecting the video output of an HDMI-enabled Chromebook or laptop to a VGA display. The dongle design of this adapter converter does not cause the stress on the port of a small laptop that is common when using a box style adapter. Up to a 1920x1080 video resolution is supported, allowing this adapter converter to meet the needs of a high performance application. Connect this adapter directly to the output of a laptop and use a VGA cable to connect to a display.

C2G HDMI Male to VGA Female Adapter Converter Dongle Specifications:

  • Part Number: 41350
  • Color: Black
  • Length: 8"
  • Weight: 0.1 lb
  • Connector 1: (1) HDMI Male
  • Connector 2: (1) VGA Female
  • Electrical Specifications:
    • Resolutions Supported: 480i/480p, 576i/576p, 800x600, 720i/720p, 1280x1024, 1600x1200, 1080i/1080p
    • Voltage: 5V, 500mA (VGA models)
    • Voltage Rating: 30V
    • Pixel clock rate: Up to 165MHz
    • Impedance: 100±5
    • Intra-pair skew: 15ps/m max
  • Physical Specifications:
    • Minimum Bend Radius: 12mm
    • Operating Temperature: 0°C to 70°C
    • Storage Temperature: -10° to 40° C
    • Adapter Length: 203mm
    • Approvals: CE
  • Conductor (Qty. 3):
    • Conductor Type: 32AWG 7/0.08TCS x15 Tinned Copper
    • Insulation: Foam-PE, ø0.63±0.05
    • Shield: AL Wrap; Braid, 16/6/0.12AMA 75% Coverage
    • Drain: 32AWG 7/0.127B
  • Overall Cable:
    • Jacket: PVC, Black
    • OD: 5.5ø0.2
