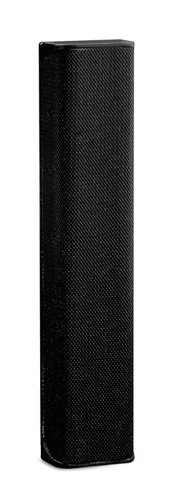

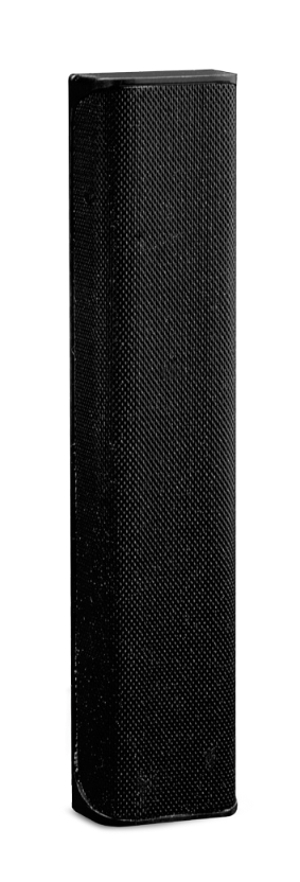

K-Array KZ12
Lyzard Mini Line Array Element B, Black

OUR PART #:  KZ12

The K-Array KZ12 Lyzard is a remarkable  ultra-micro line array designed for discreet use in a variety of initimate environments such as restaurants, bars and museums.
Learn More
Our Price: $362.84
List Price: $390.15
You save 7%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

K-Array KZ12
Qty:
In Stock

Similar Products

The K-Array KZ12 Lyzard is a remarkable  ultra-micro line array designed for discreet use in a variety of initimate environments such as restaurants, bars and museums.

The rugged enclosure contains a line array of 4 x 0.5” long excursion, full-range drivers housed in a sleek case built around a super strong chassis. The  high efficiency drive units have neodymium magnet structures and suspensions engineered for maximum linear excursion and minimum residual transducer noise. The system delivers long throw and coherent coverage making it ideal for use in space constrained situations. Up to four Lyzards can be integrated with the KU sub bass line, extending the frequency range to 35 Hz. The KZ12 weighs a mere 46 g and measures 2.2 x 10 x 1.2 cm.

K-Array KZ12 Applications:

  • Audio for exhibits and museum display
  • Background music system in restaurants and clubs
  • High quality distributed systems for paging and music
  • Space-sensitive fill for broadcast

K-Array KZ12 Features:

  • Wide range frequency response
  • Integrated connector
  • Full aluminum, ultra-strong frame
  • High dynamic range capability
  • Weather proof, suitable for outdoor installations - IP54

K-Array KZ12 Specifications:

  • Acoustics:
    • Max power handling: 8 W
    • Impedance: 16 Ohm
    • Frequency range: 250 Hz – 18 KHz +/- 6dB
    • SPL 1W/1mt: 82 dB
    • Maximum SPL: 92 dB continuous – 98 dB peak
  • Coverage:
    • Horizontal: 140°
    • Vertical: 20°
  • Crossover:
    • Type: External cross over required
    • Frequency: 250Hz, 24dB/oct suggested minimum
  • Transducers:
    • Full-range: 4 x 0.5” Neodymium cone driver with 0.5” voice coil
  • Powered Input:
    • Connectors: IN+ IN- (to be soldered or screwed)
  • Physical:
    • Dimensions: 2.1 x 10.0 x 1.2 cm (0.83”x 3.94”x 0.47”)
    • Weight: 45.5 g (0.10 lb)
