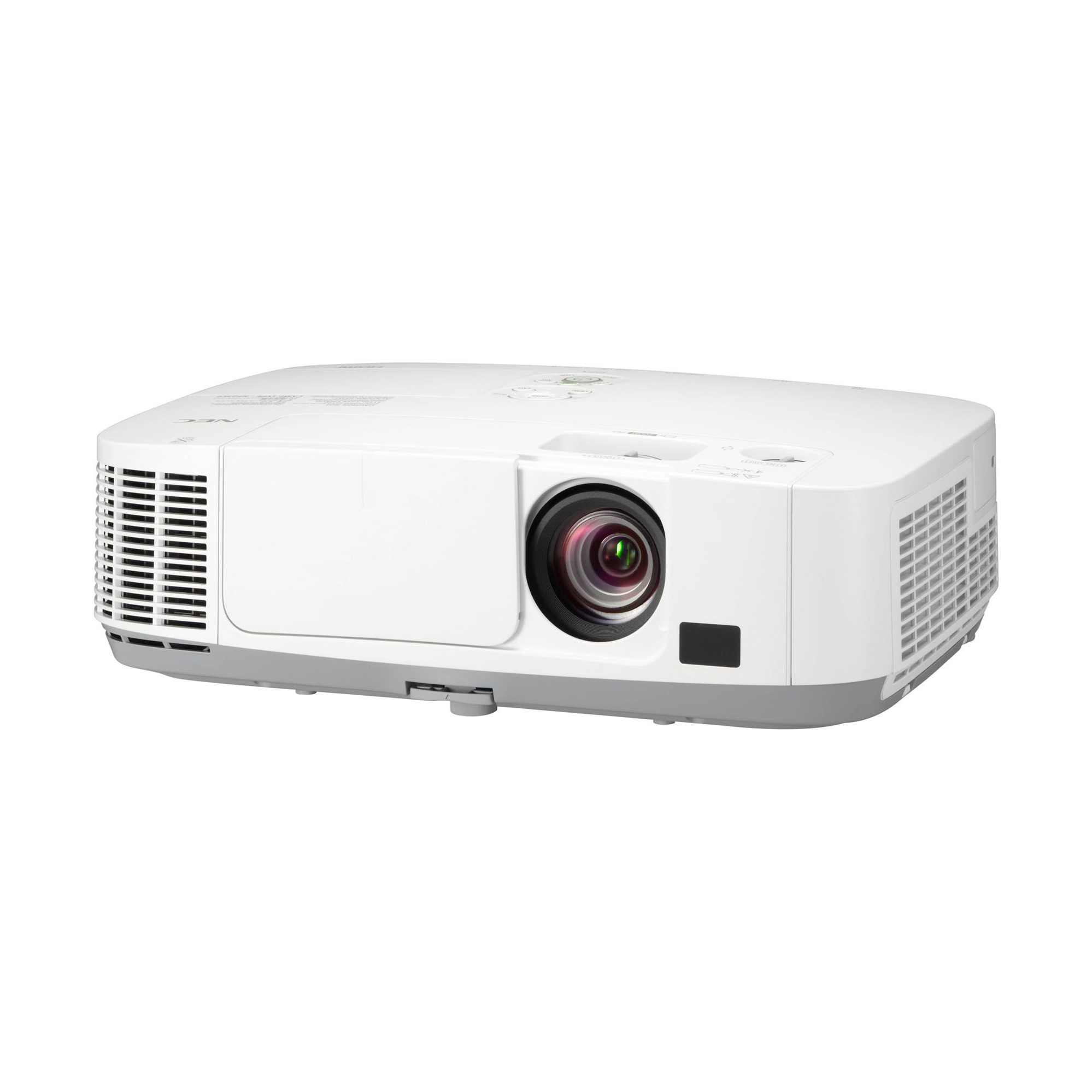

NEC Visual Systems NP-P501X
5000 Lumen Entry-Level Professional Installation Projector


You can maximize your brightness during presentations with NEC's P501X entry-level professional installation projector.
Learn More
NEC P501X - Filter Side View
NEC P501X - Top View
NEC P501X - Elevated Rear View

Click a thumbnail to see more images. (5 total)

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

You can maximize your brightness during presentations with NEC's P501X entry-level professional installation projector. It's loaded with advanced as well as eco-friendly technologies, and is ideal for corporate boardrooms, higher education classrooms, and government training rooms. It delivers exceptional brightness (5000 lumens) and features built-in wall color correction, wired and optional wireless networking, closed captioning, and up to 6000 hours of lamp life (in ECO Mode™). The P501X boasts an active lens cover, which hides content, mutes audio, and lowers lamp brightness to 25%, allowing you to maximize the effectiveness of your presentations.

  • Advanced AccuBlend™
    Ensures detailed images when non-native resolution sources are connected to the projector.
  • 64-step image magnification
    With location control.
  • Countdown sleep timer
    Can be set to automatically turn off the projector.

NEC P501X Includes:

  • P501X unit
  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • Built-in Lens cover
  • User manual
  • Quick Start Guide
  • Product registration card
  • CD-ROM
  • Security Sticker

NEC P501X Features:

  • Dual HDMI inputs (with HDCP) ensures quick switching between presentations
  • 4000:1 Contrast Ratio creating extremely detailed images
  • Four audio inputs make it easy to add sound to enhance every presentation
  • Powerful 16W speakers provide volume needed for large rooms
  • Built-in cornerstone correction including Pincushion and Barrel correction
  • 6000-hour filter drastically reduces cleaning frequency, thereby decreasing the total cost of ownership
  • Variable audio-out allows the remote control to adjust speaker volume
  • Vertical lens shift enables flexible projector placement
  • IEU Lite (Image Express Utility Lite) for audio and video transmission from a computer to the projector over the network
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
  • Present, share, and collaborate with included DisplayNote® NEC Edition presenter license
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
  • Broadcast mode allows you to send information from one computer to several projectors
  • Crestron Roomview
  • USB Viewer

NEC P501X Specifications:

  • Optical:
    • Display Technology:  0.63" LCD w/ MLA
    • Light Output (Lumens): 5000 normal / Eco = approx. 60% of normal mode
    • Resolution:
      • Native: XGA 1024 x 768
      • Maximum: UXGA 1600 x 1200
    • Contrast Ratio (up to): 4000:1
    • Lamp Type: 270W AC / 160W eco
    • Lamp Life (up to): 3500 hours normal /6000 hours eco
    • Screen Size (diagonal): 25 to 300 in. / 0.64 to 7.6m
    • Throw Ratio: 1.3 to 2.2
    • Projection Distance: 1.9 to 45.3 ft. / 0.6 to 13.8m
    • Projector Angle: 0 to 9.8° tele / 0 to 16.5° wide
    • Lens:
      • Zoom: 1.7
      • Focus: Manual
      • F number, fnumber: F=1.7 to 2.1, f=17.4 to 29mm
    • Keystone Correction: Manual +/- 30°
  • Signal Compatibility/Connectivity:
    • Synchronization Range:
      • Horizontal (Analog/Digital): 15-100 kHz
      • Vertical (Analog/Digital): 50-120 Hz
    • Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
    • SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, Y/Cb/Cr component (with optional adapter – ADP-CV1E - sold separately)
    • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA
    • Macintosh Compatibility: Yes
    • Input/Output Terminals:
      • RGB1 (analog): VGA 15-pin D-sub
      • RGB3 (digital): HDMI w/ HDCP
      • RGB4 (digital): USB A type
      • Video 1: RCA
      • Video 2: S-Video
      • Audio 1: L/R RCA (shared by video sources)
      • Audio 2: 1/8 in. stereo
      • Audio 3: 1/8 in. stereo
      • Monitor out: VGA 15-pin D-sub
      • Audio out: Yes (variable)
    • Audio: 16W speaker
    • External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN
    • Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
    • Networking: RJ-45 Monitoring
  • Electrical:
    • Power Requirements: 100-240V AC, 50/60 Hz
    • Input Current: 4.2A/1.7A
    • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 357W / 231W / 10W / 0.2W
  • Mechanical:
    • Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
    • Dimensions (WxDxH): 15.7" x 11.1" x 4.5" (398 x 282 x 115mm)
    • Net Weight: 9 lbs (4.1 kg)
    • Fan Noise: 37 dB normal / 30 dB eco
    • Regulations: UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B, NOM-001-SCFI-1993
  • Environmental:
    • Operating Temperature: 41-104°F / 5-40°C
    • Humidity: 20-80%, non-condensing
    • Storage: -14-122°F / -10-50°C
  • Limited Warranty
    • 3 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first.
  • Additional Features:
    • Wireless LAN
    • Active Lens Cover
    • USB Viewer
    • Cornerstone
    • Geometric Correction
    • Auto power on
    • ECO Mode technology
    • Closed captioning
    • Variable audio out
    • Carbon savings meter
    • Virtual Remote
    • Sleep timer
    • Quick power-off
    • Built-in wall color correction
    • Advanced AccuBlend
    • AutoSense
