Clear-Com CC-300-Y4
Single-ear Standard Headset with XLR-4M

OUR PART #:  CC-300-Y4

The Clear-Com CC-300-Y4, a single-ear microphone headset with an XLR-4M connector...
Learn More
Our Price: $315.00
List Price: $350.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com CC-300-Y4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

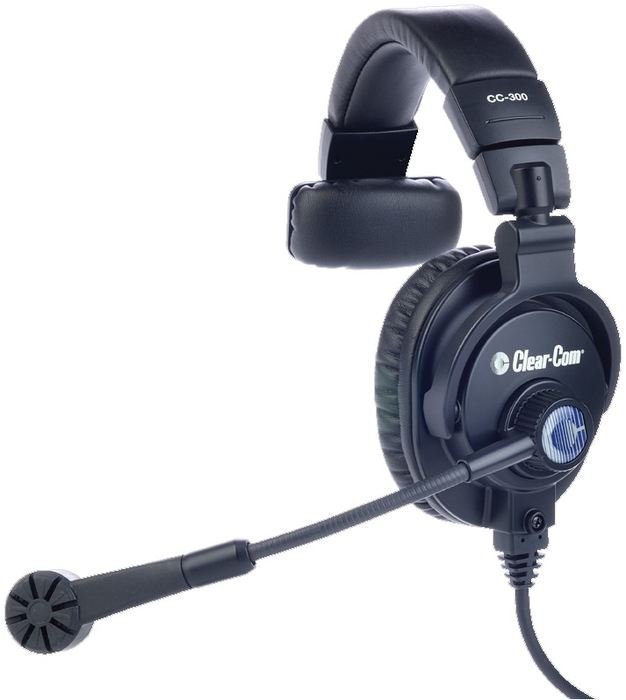

The Clear-Com CC-300-Y4, a single-ear microphone headset with an XLR-4M connector, features high-performance headphones along with a cardioid dynamic microphone that delivers high-quality audio.

The CC-300 and headset can easily be adjusted to accommodate the user's preference. The microphone boom has a 300┬░ rotation to allow the microphone to be worn on either the left or right side of the head. Users can make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette padding, the headphones "sit on the ear" and provide a comfortable fit for users. For optimal positioning, a rotating, flexible gooseneck is included.

The CC-300 headset microphone can be turned on and off by moving the mcrophone boom. To turn ON the microphone, pull the boom gently downwards (past the 10 o'clock/2 o'clock position). To turn the microphone OFF, just push the boom gently upwards (above the 10 o'clock/ 2 o'clock position).

The CC-300 headset has been designed so that the cabling and connector type can be adapted quickly to the needed application. Other cables are available with different XLR connector choices and appropriate pin-outs (all sold separately, contact your Sales Pro for more information). To change the connector cable in the field, simply disconnect the cable from the headset and exchange the cable with a standard Phillips screwdriver. The same process can be used to repair and replace a damaged cable on the fly.

Clear-Com CC-300 Features:

  • High-quality dynamic hyper-cardioid microphone
  • High ambient-noise attenuation headphones
  • 40Hz-20kHz frequency response
  • Flexible gooseneck microphone positioning
  • Boom rotation ON/OFF switch for quick microphone muting
  • Interchangeable cabling for easy connector changing and repair
  • Fully serviceable headsets
  • Storage bag included

Clear-Com CC-300 Specifications:

  • Headphone:
    • Type: Closed-back
    • Driver: 40mm diameter, neodymium magnet, copper-clad aluminium wire voice coil
    • Frequency Response: 40Hz - 20kHz
  • Microphone:
    • Element: Dynamic
    • Polar Pattern: Hyper-cardioid
    • Frequency Response: 300Hz - 20kHz
  • Sensitivity:
    • Open Circuit Sensitivity: -61.0 dB +/- 3.5 dB; at 1kHz, typical
    • CC-300: 102 dB +/- 3 dB; at 1kHz typical
  • Impedance:
    • Headphone: 400 Ohms +/- 30%; at 1kHz typical
    • Microphone: 200 Ohms +/- 30%; at 1kHz typical
  • Connector:
    • Cable: 5ft (1.55m) long with 8-pin connector at headset end; field-removable 4-pin male XLR gives RTS compatibility
  • Dimensions:
    • Packaging for CC-300 (WxHxD): 4.8" x 13" x 10.43" (122 x 330 x 265mm)
  • Weight:  8.6 oz (245 g) without 8-pin cable assembly and M3 18mm screw
