DPA Microphones FIOF34-2 [RESTOCK ITEM]
d:fine Dual-Ear Omnidirectional Headset Microphone for Sennheiser Wireless with Long Boom in Beige

OUR PART #:  FIOF34-2-RST-01

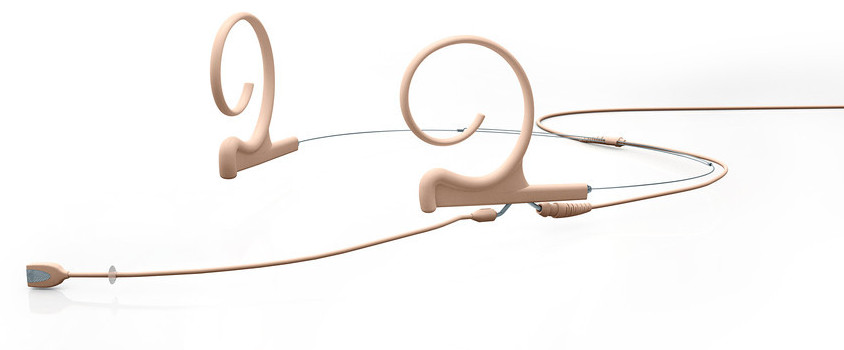

The FIOF34-2 is a beige dual-ear microphone with a 4.3" long boom and is wired with a 3.5mm locking connector for Sennheiser wireless transmitters.
Learn More
Sale Price: $642.78
List Price: $759.95
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIOF34-2 [RESTOCK ITEM]
Qty:
In Stock

Similar Products

The FIOF34-2 is a beige dual-ear microphone with a 4.3" long boom and is wired with a 3.5mm locking connector for Sennheiser wireless transmitters.

NOTE: This is a RESTOCK item that has been refurbished by the manufacturer. Please contact your Sales Pro for more information on this and other products.

The DPA d:fine series has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting securely and hardly visible.

Just by rotating the boom and the earhook, the microphone can be moved from left to right ear, or into the optimum position.

Staying true to the DPA legacy, d:fine offers accurate, natural voice intelligibility and very high SPL capabilities – users can both speak and sing into the mic with no hint of distortion. Intensive protection against pop and wind noise is integrated in the microphone design and windscreens are included.

The dual-ear mount is dedicated for more active situations and will be safe in even the most rigorous and energetic performance applications.

DPA FIOF34-2 Features:

  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact
  • Adapts to all pro wireless systems

DPA FIOF34-2 Specifications:

  • Directional characteristics: Omnidirectional or directional
  • Principle of operation: Pressure or pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ± 2 dB: Omni: 20 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz.
  • Sensitivity, nominal, ± 3 dB at 1 kHz: 6 mV/Pa;-44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Omni: Typ.26 dB(A) re. 20 µPa (max. 28 dB(A)).
  • Equivalent noise level, ITU-R BS.468-4: Omni: Typ. 38 dB (max. 40 dB).
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dBSPL): Omni: Typ. 68 dB(A).
  • Total Harmonic Distortion (THD): <1 % up to123 dB SPL peak; <1 % up to 120 dB SPL RMS sine
  • Dynamic range: Omni: Typ. 97 dB.
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100 ohm.
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Output balance principle: Signal balanced with DAD6001-BC XLR adapter
  • Common Mode Rejection Ratio (CMRR): > 60 dBfrom 50 Hz to 15 kHz with DAD6001-BC XLR adapter
  • Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems. 48 V phantom power ± 4V with DAD6001-BC XLR adapter.
  • Current consumption: Typ. 1.5 mA (microphone).3.5 mA with DAD6001-BC XLR adapter.
  • Connector: MicroDot
  • Color: Beige
  • Weight: Microphone boom: 0.8 g (0.03 oz); earhook: 1.1 g (0.04 oz); cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz).
  • Microphone head size (HxWxD): 0.37" x 0.21" x 0.11" (9.5 x 5.3 x2.9 mm)
  • Capsule diameter: 0.2" (5.4 mm)
  • Mic boom lengths: Omni: 1.6" (40 mm), 3.5" (90 mm), 4.3" (110 mm)
  • Cable length: 4.3 ft (1.3 m)
  • Cable color: Beige
  • Cable diameter: 0.06" (1.6 mm)
  • Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
  • Electro Magnetic Compatibility (EMC): Fully compatible
  • Temperature range: -40 °F to113 °F (-40 °C to 45 °C)
  • Relative Humidity (RH): Up to 90%
