Ace Backstage Co. 1048BBX
8" Extra Deep Double Wide Back Box

OUR PART #:  1048BBX

ACE Backstage's 1048BBX is an Extra Deep Double Wide Back Box designed for use with ACE's Double Wide Stage Pockets.
Learn More
Our Price: $169.21
List Price: $212.66
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. 1048BBX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

ACE Backstage's 1048BBX is an Extra Deep Double Wide Back Box designed for use with ACE's Double Wide Stage Pockets.

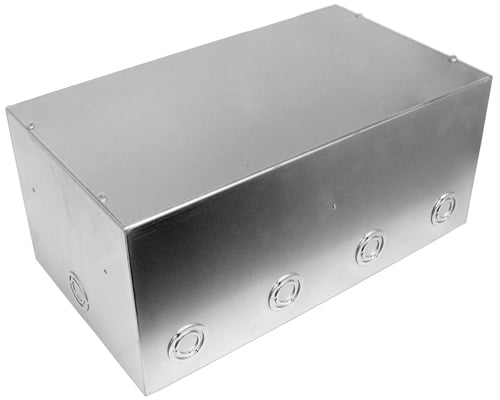

ACE Backstage Extra Deep Back Boxes are slightly deeper (8") than their Standard #BBX Series Back Boxes (6") and may be used exclusively with ACE's Double Wide Stage Pockets. The 1048BBX Extra Deep Back Box is welded 14 gauge steel with a protective cover that is discarded when the pocket body is finally installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2" mounting flange is predrilled to mate with the pocket body flange. The pocket body assembly is 4.5" deep and the extra deep back box is 8" deep providing a 3.5" work clearance in the bottom of the back box (ideal for feed thru or distribution junction).

The 1048BBX features a clearance volume (volume between bottom of pocket body and bottom of the extra deep back box) of 613 cubic inches. ACE Extra Deep Back Boxes come with standard Electrical Conduit Combination 1/2", 3/4", 1", and 1-1/4" Knock Outs, four places typical on opposing sides and Electrical Conduit Combination 1/2", 3/4", 1", and 1-1/4" Knock Outs, two places typical on one side.

ACE Backstage 1048BBX Extra Deep Back Box Includes:

  • (1) 1048BBX Extra Deep Double Wide Back Box
  • (1) Disposable protective cover
  • (4) Self tapping screws

ACE Backstage 1048BBX Extra Deep Back Box Specifications:

  • Finish: Clear zinc corrosion resistant
  • Material: Welded 14 gauge steel (0.071" thick)
  • Clearance Volume: 613 cubic inches
  • Dimensions: 10" W x 8" H x 18" L
