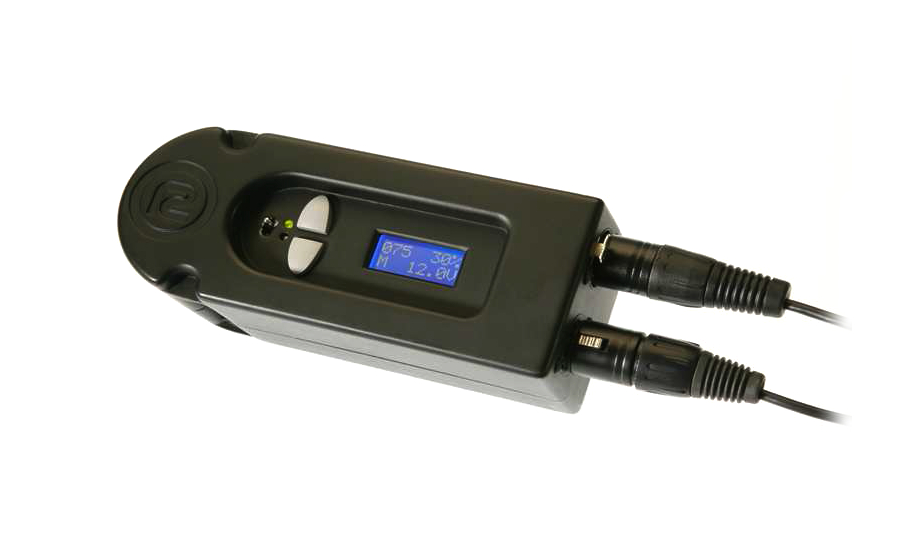

Reflecmedia RM4251D Dual LiteRing Controller Model: RM4251D

Reflecmedia's Dual LiteRing Controller is engineered specifically for use with their Dual LiteRing (sold separately), providing total user control over the power source and LiteRing output. It can use a 4-pin XLR adapter for power, and for convenience, can also be battery powered (battery sold separately).

Applications:

For use only in photographic/film studios and similar locations under reliable supervision.

Reflecmedia Dual LiteRing Controller Specifications:

• Part number: RM4251D
• Power:
  • 7.5 – 12VDC via 4-pin XLR. Pin 1 0V, Pin 4 +V
  • 7.5Vdc via SONY NP-F MDV battery mount (battery sold separately)
• Electrical output: Max 0.45A, 22.1VDC
• Max overall power consumption: 12W maximum
• Electric insulation class: III
• Environmental rating: IP30, dry locations
• Maximum ambient temperature ta: 50oC
• Maximum surface tempertaure tc @ ta: 80oC

Note:

Battery shown above is sold separately.
