Warm Audio WA12-500-MKII WA12-500 MKII

OUR PART #: WA12-500-MKII

Copied to clipboard

The Warm Audio WA12 - 500 MKII is a completely discrete, high voltage, dual-transformer microphone preamplifier designed for high gain (+71dB)... ...Read more

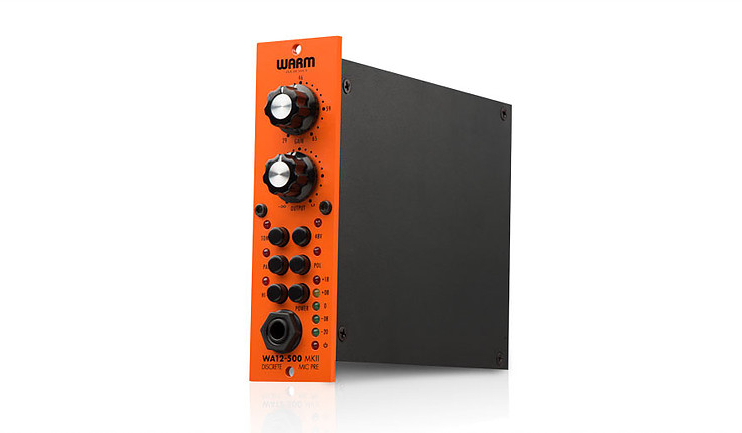

Warm Audio WA12-500-MKII WA12-500 MKII Image 1
Warm Audio WA12-500-MKII WA12-500 MKII
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Warm Audio WA12 - 500 MKII is a completely discrete, high voltage, dual-transformer microphone preamplifier designed for high gain (+71dB), high headroom, low noise, and an exciting sonic performance – great for all types of recording applications. A high quality mic preamp is one of the most critical pieces needed to achieve the elusive ‘larger than life’ sound, and the WA12 - 500 MKII is more than capable of delivering.

The WA12 - 500 MKII is based around a discrete op-amp, the X731, which is our own reproduction of the vintage classic Melcor 1731, considered by some to be the warmer predecessor to the modern 2520-style op-amp. The X731 can achieve vibrant, clean and lifelike tones; but can also be driven into mild saturation at much higher gain levels. The effects can be subtle, but very pleasing to the ear. The WA12 - 500 MKII can also accept any discrete op-amp on the market which conforms to the +/-16v, 2520 pinout standard.

Warm Audio WA12 - 500 MKII Features:

  • Utilizes premium grade input and output USA CineMag transformers
  • 71db of Gain, fully discrete signal path
  • Utilizes a discrete 6-pin socketed 1731 styleopamp. Can be replaced with other 6-pin "2520 foot-print" opamps forvarying tone/flavor
  • TONE button – Switches the input impedance from 600ohms to 150 ohms. Changes the tone of both the mic and HI-Z inputs
  • 2 Meg Ohm True HI-Z input on front panel. Sendsinstrument signal through entire circuit including both Cinemag Transformersand the discrete opamp. Great for guitars, bass, keyboards and otherinstruments that have a 1/4? output jack
  • 48 volt Phantom Power
  • Output attenuation control (after the CineMag outputtransformer) allows for driving the preamp and transformers into saturation
  • LED Meter gain indication
  • 20db pad

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
